1. Select Disable or Enable for the Ethernet.

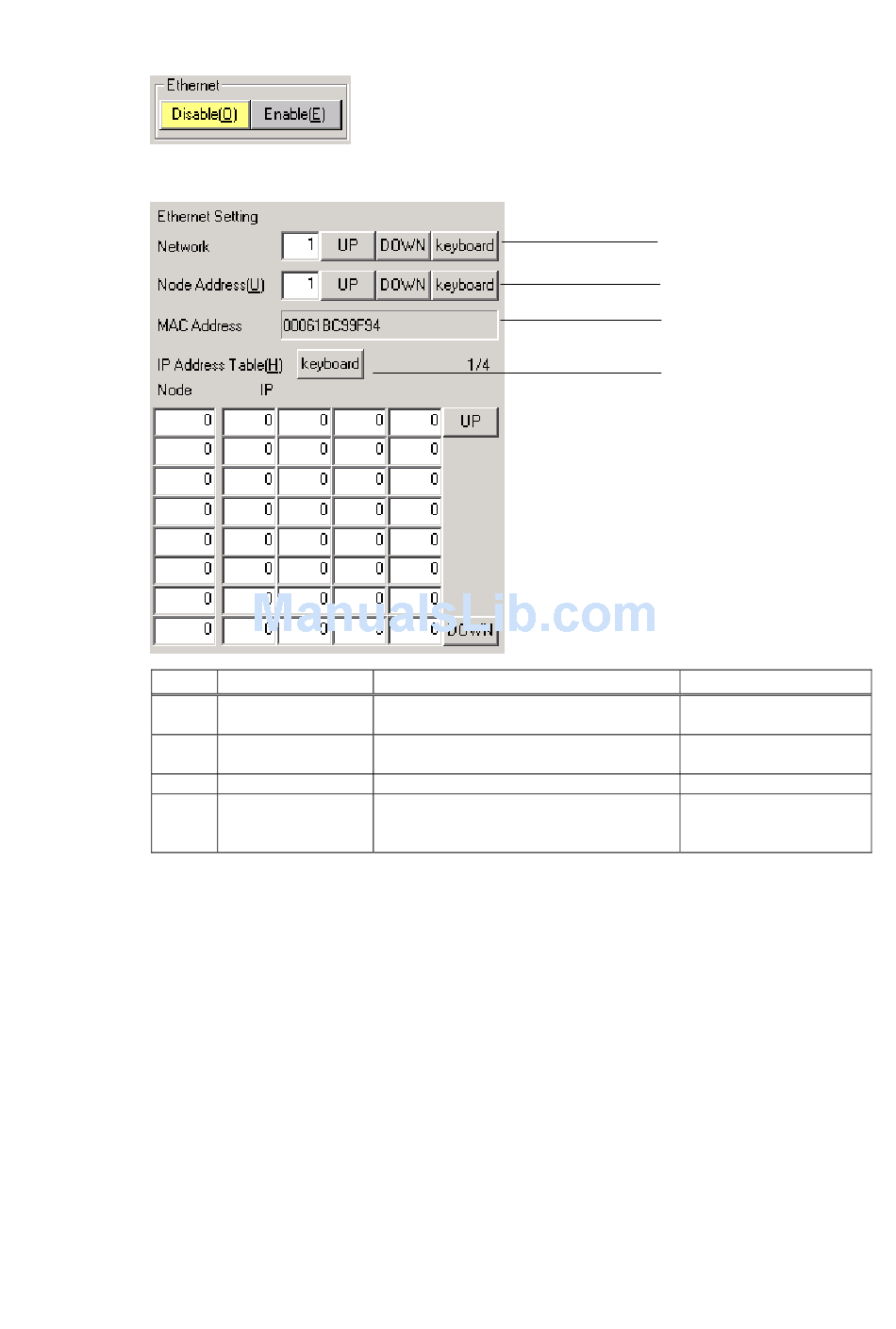

2. When selecting the Enable, set and display the Ethernet details. To change the settings,
use UP and DOWN Buttons, or a keypad that is displayed by clicking the keyboard button.
No Item
1 Network
2 Node Address
3 MAC Address
4 IP Address Table
3. After setting, click the Write Button to save the setting. (For details on the write button,
refer to Writing on page 5-29.)
4. The settings are enabled after the NS-Runtime is restarted.
EtherNet/IP
You can change the IP address and root path of the selected host. The host type can only
be displayed. It cannot be changed.
Use the following procedure from the Comm. Tab Page to change the IP address.
1. Click the Display EIP host Button.
2. In the Host Name Field, select the host for which you want to change the settings.
3. To change the IP address, click the Keyboard Button and enter the IP address using the
tenkey that is displayed. To change the root path, press the Setting Button by the
Communication Path Field and select the host to be connected from the dialog box that is
displayed.
Function
Sets and displays the local network
address.
Sets and displays the local node
address.
Displays MAC Address.
Sets and displays the node numbers and
IP addresses of other nodes connected
through Ethernet.
5-6 Initialization/Setting Screen
1
2
3
4
Setting Range
1 to 127
1 to 254
Read-only
Node: 1 to 255
IP Address :0.0.0.0 to
255.255.255.255
