Omron NS-RUNTIME - SOFTWARE User Manual page 142

6-2 Transferring Data Using a Memory Card

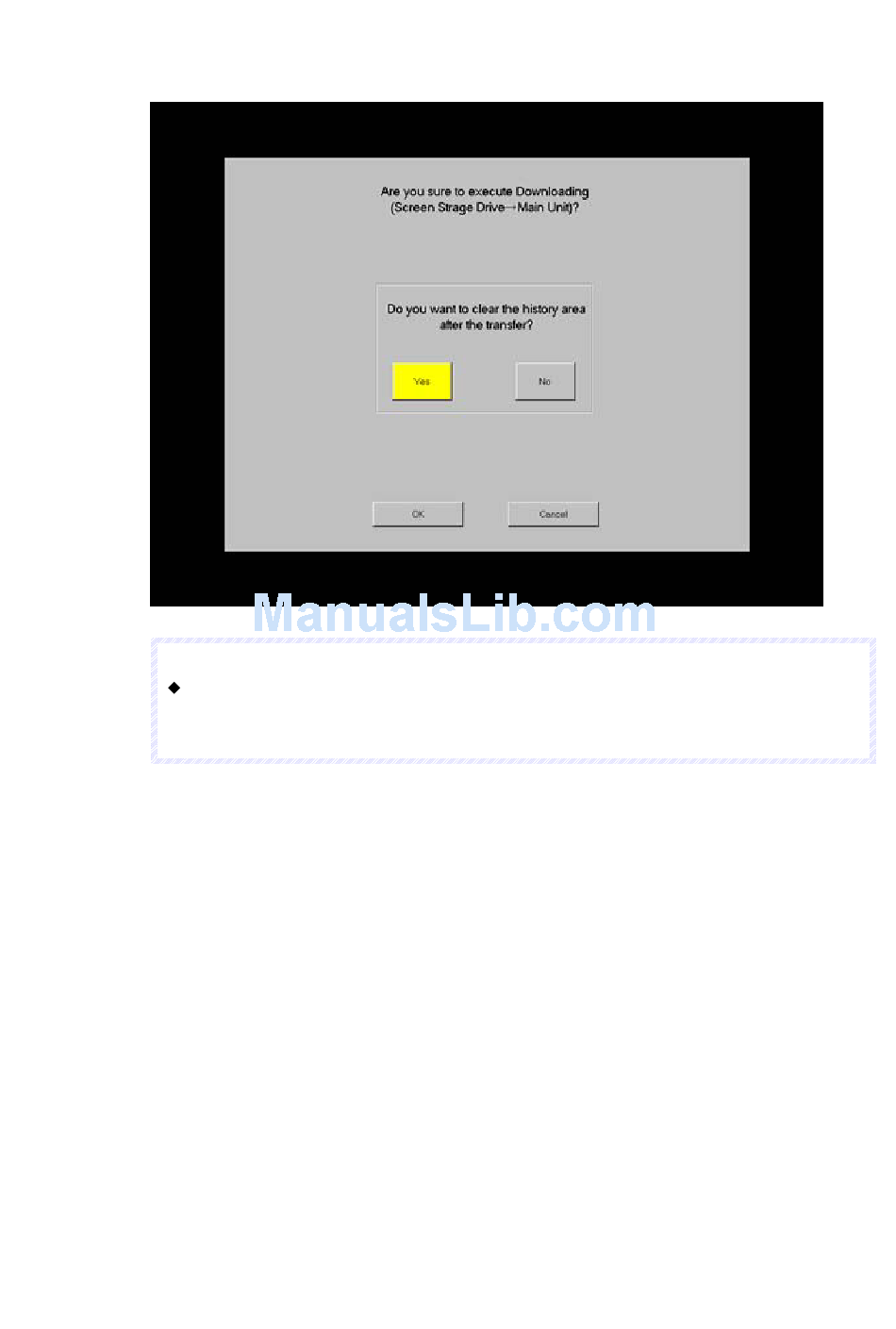

10. A confirmation dialog box will be displayed to ask whether to clear history data or not.
Select either Yes or No. Then click the OK button.
N o t
N o t
N o t
Always delete the histories when downloading the project data in the following cases:
1) when the alarm/event settings, data log settings, or any other settings related to the histories
have been changed or
2) when downloading a project that is different from the one currently in the NS-Runtime.
11. A warning dialog box will be displayed, if the data of models, system programs/screen
data versions and languages are different between data stored in the NS-Runtime and
data stored in the memory card.
If the transfer is possible, transfer will be executed when OK button is clicked.
If the transfer is impossible or if the Cancel button is clicked, the screen will go back to
the step 8. Select the project to transfer again.
6-6
