Communications Settings - Omron CX-DESIGNER - INTRODUCTION GUIDE Introduction Manual

Start up Creating a
CX-D new project

5 Communications settings

5 Communications settings
Click
[System] in the Project
Workspace.
Double-click
[Comm. Setting].
Click [Serial Port A]
Set as follow:
Serial Port
![PLC]
Host Name
![HOST1]
Protocol
![NT Link(1:N)]
Comm. Speed
![High-speed]
[Comm.-All], [Ethernet],
[Controller Link] settings
are not required.
Click
Project
property

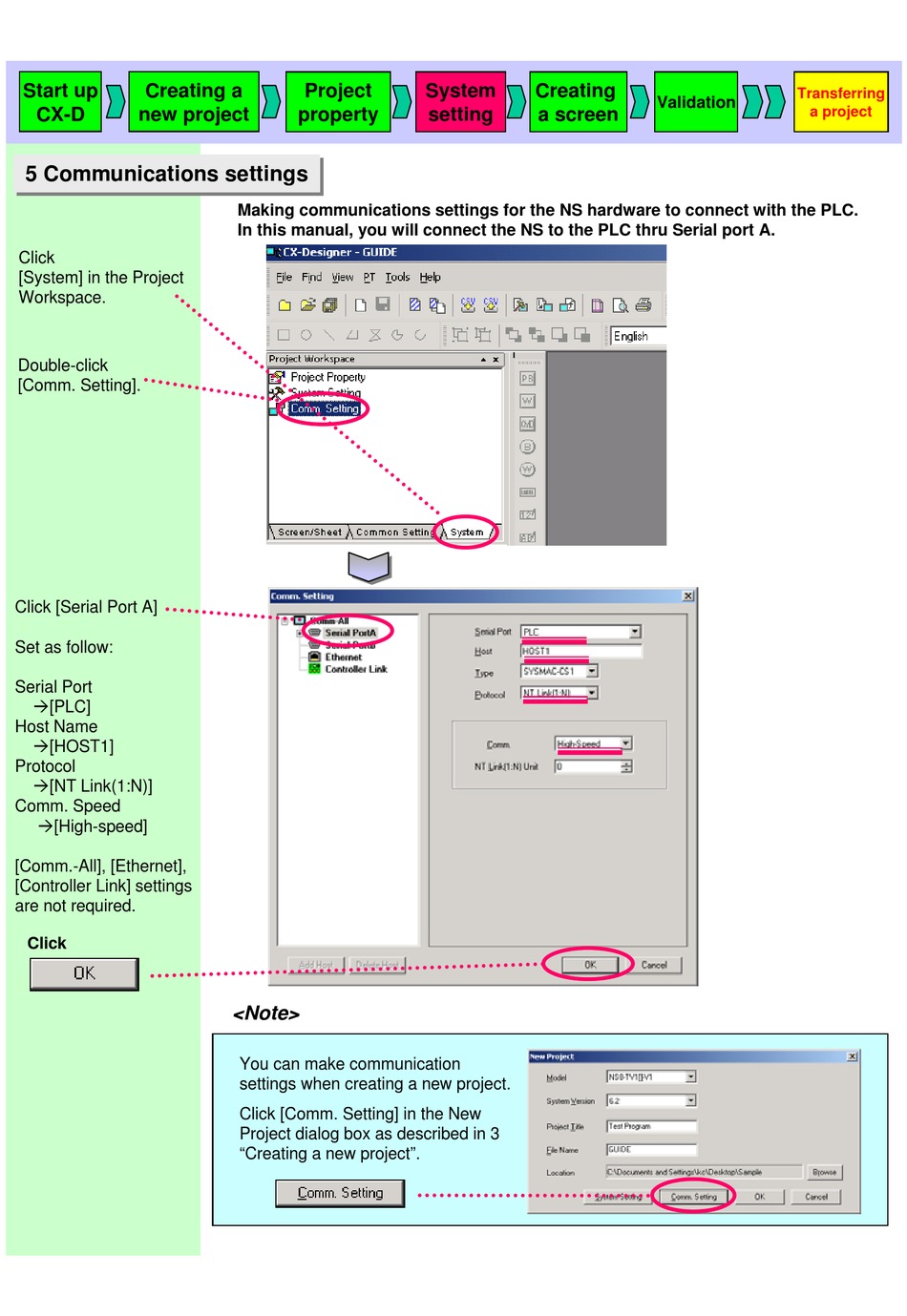

Making communications settings for the NS hardware to connect with the PLC.
In this manual, you will connect the NS to the PLC thru Serial port A.
<Note>
You can make communication
settings when creating a new project.
Click [Comm. Setting] in the New
Project dialog box as described in 3
"Creating a new project".
System Creating
setting a screen
Transferring
Validation
a project
