5-6 Initialization/Setting Screen
5-6-4

Setting Passwords

The NS-Runtime's password function is divided into the following two functions.
-Password Function
Requires a password input before allowing operations on a password-protected functional
object.
-Password with Levels Function
Requires a password for authentication when performing operations on a password-
protected functional object for the first time.
Once authentication has been completed, operations can be performed on all functional
objects of the same or lower password levels.
Operations cannot be performed on functional objects protected with higher-level passwords.
The passwords are set from the CX-Designer and up to five passwords (5 levels) can be set
for a single project. The passwords can be set and changed from the System Menu.

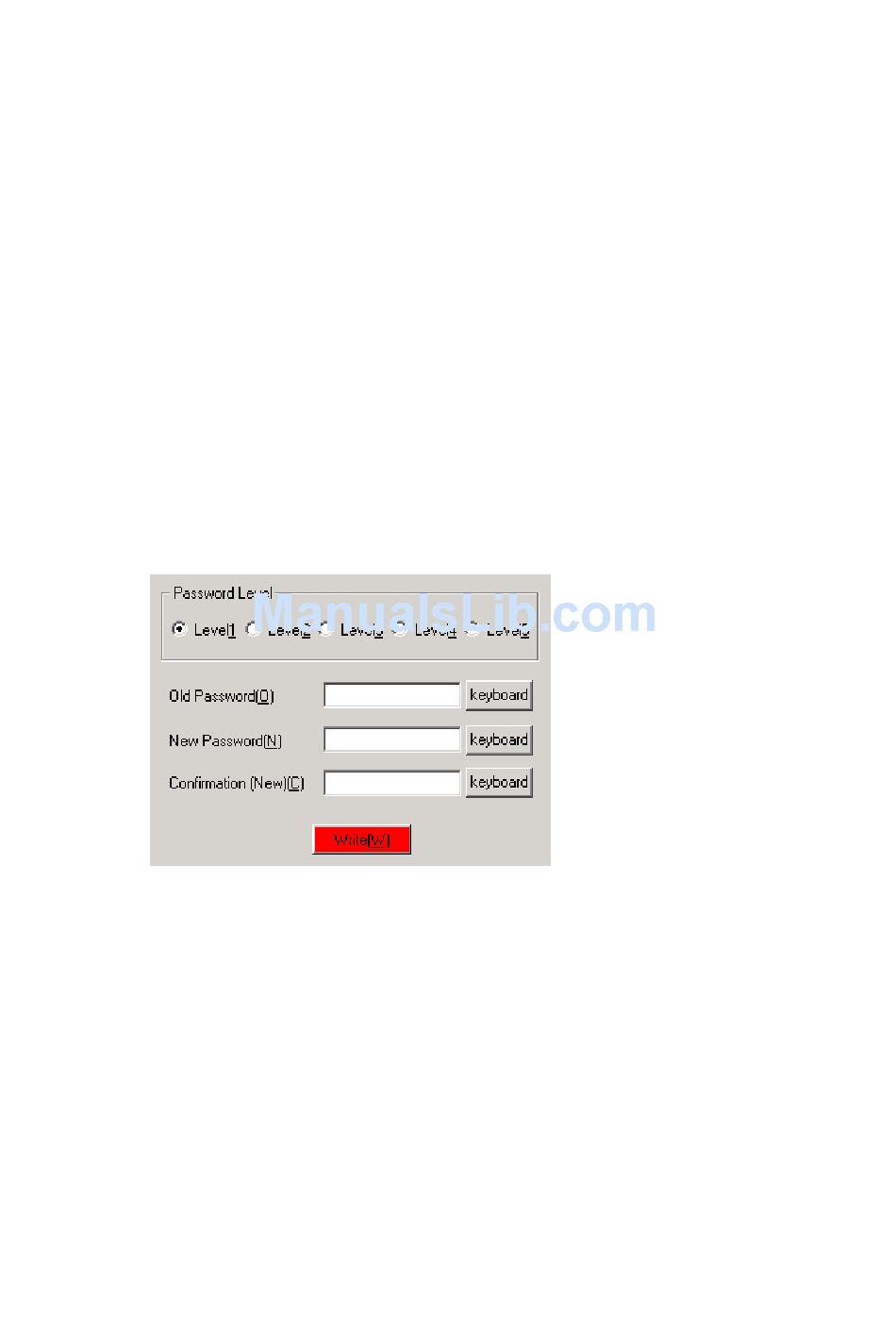

Changing the Password
Perform the following procedure from the Password Tab Page to change the password.
1. Select the password to be changed using the Level 1 to Level 5 Buttons
2. Input the old password and new password in the corresponding fields, and then input the
new password again in the confirmation field.
The "*" symbols are displayed for the password and the actual password will not be
shown on the screen.
Input the password using the input keyboard or directly using the hardware keyboard.
3. After setting, click the Write Button to save the setting. (For details on the write button,
refer to Writing on page 5-29.)
5-34
