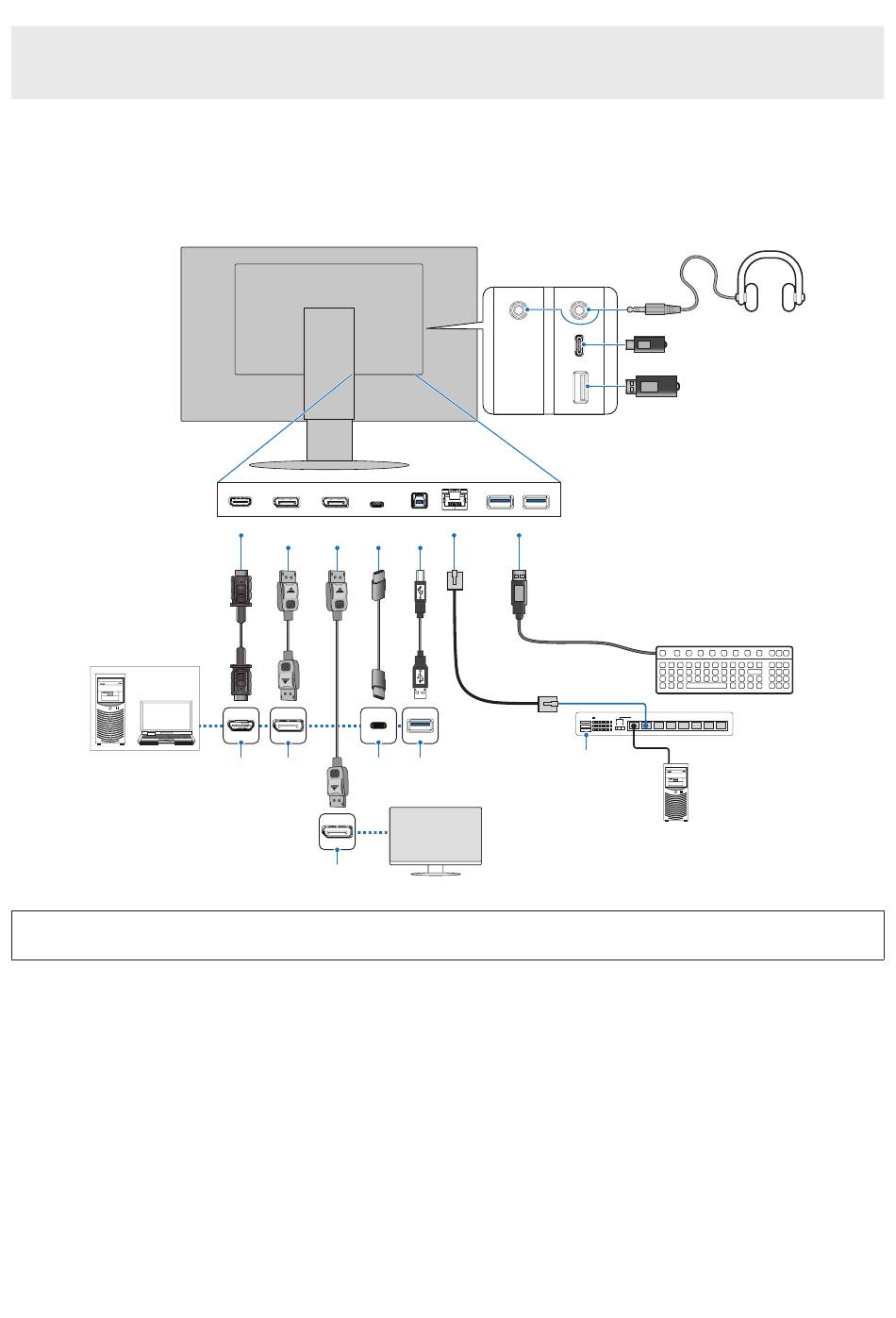

Connect devices to the monitor�
Turn off the power to your computer before making connections.

TIP: Place your hands on each side of the monitor to tilt the panel to a maximum tilt angle (Up 35° Down 5°) and lift up to the
highest position. This provides easier access to the ports for connecting cables.
To maintain compliance with EMC regulations, use shielded cables to connect to the following terminals: USB port, USB
Type-C port, HDMI input terminal and DisplayPort input terminal.
NOTE:
• Adjustment of the volume control to other settings than the center position may increase the ear-/headphones output
voltage and therefore the sound pressure level.

• Incorrect cable connections may result in irregular operation, damage display quality/components of the LCD module
and/or shorten the module's life.

• Make sure the signal cable is fully connected to the monitor and the computer.

• Check the USB flash drive for viruses as necessary.
Please adjust the screen position by referring to
Parts name and Connecting Peripheral Equipment
Master monitor
HDMI HDMI DisplayPort DisplayPort USB USB
IN IN OUT OUT Type-C Type-C
HDMI HDMI DisplayPort DisplayPort USB USB
Type-C Type-C
DisplayPort DisplayPort
input terminal input terminal
"Height and angle
EA272Q EA272U
USB USB LAN LAN USB Type-A USB Type-A
Type-B Type-B
Ethernet Hub Ethernet Hub
USB USB
Type-A Type-A
Sub monitor Sub monitor
adjustment".
English−15
Headphone
USB Type-C
(DownStream)
USB Type-A
Router/Server Router/Server
