Summary of Contents for Sharp LC-20VM2

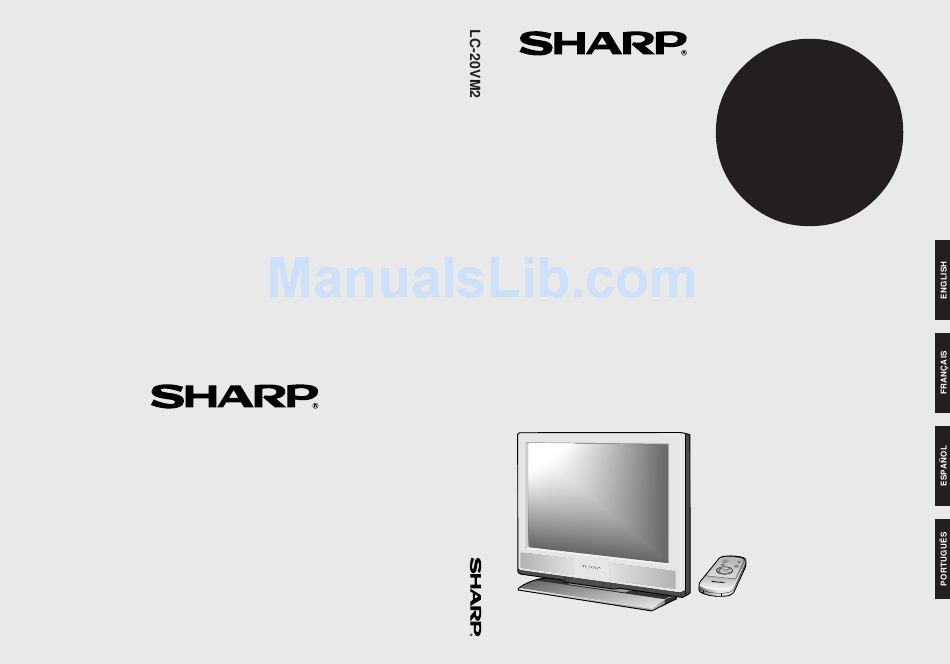

- Page 1 SHARP CORPORATION OSAKA, JAPAN PRINTED IN JAPAN IMPRIMÉ AU JAPON IMPRESO EN JAPÓN IMPRESSO NO JAPÃO TINS-6901CEZZ TXXXX-A LC-20VM2 LCD AV MONITOR MONITEUR AV À CRISTAUX LIQUIDES MONITOR AV LCD MONITOR AV DE TELA DE CRISTAL LÍQUIDO OPERATION MANUAL MODE D’EMPLOI MANUAL DE MANEJO MANUAL DE OPERAÇÃO...
-
Page 2: Important Information
Important Information WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. - Page 3 ENGLISH OPERATION MANUAL...
-
Page 4: Table Of Contents
Power ON/OFF standby ... 11 Dear SHARP Customer Thank you for your purchase of the Sharp LCD product. To ensure safety and many years of trouble-free operation of your product, please read the Safety Precautions carefully before using this product. - Page 5 Sharp service center or your dealer. b.If the product is to be used overseas, contact a Sharp service center or your dealer and obtain a power cord that complies with the applicable safety regulations of the country in which the product will be used.
-
Page 6: Supplied Accessories
Supplied Accessories Make sure the following accessories are provided with the product. Operation Manual ( 1) (TINS-6901CEZZ) LC-20VM2 LCD AV MONITOR MONITEUR AV À CRISTAUX LIQUIDES MONITOR AV LCD MONITOR AV DE TELA DE CRISTAL LÍQUIDO OPERATION MANUAL MODE D’EMPLOI MANUAL DE MANEJO MANUAL DE OPERAÇÃO... -
Page 7: Preparation
Preparation Plug into AC outlet. Household power outlet *AC cord * Product shape varies in some countries If the remote control fails to operate monitor functions, replace the batteries in the remote control. Open the battery cover. Slide the cover while pressing down. -
Page 8: Example Of Application
Preparation Removing and mounting the back cover Removal • Remove the back cover when inserting the cords into the terminals. • To remove the back cover, gently pull the part marked Mounting • Insert the four hooks (1) into the cabinet. •... -
Page 9: Names Of Parts (Main Unit)
Names of Parts (Main Unit) Main Unit (Front View) Front Control section HEAD PHONE 1 Remote sensor window 2 HEAD PHONE jack 3 MENU button 4 VOL (+)/(–) buttons * MENU button, VOL (+)/(–) buttons, SELECT buttons and AV INPUT button have the same function as those on the remote control. -
Page 10: Main Unit (Rear View)
Names of Parts (Main Unit) Main Unit (Rear View) Rear terminal section CONTROL AUDIO INPUT INPUT (VGA60Hz) 1 RGB input terminal 2 AUDIO input terminal 3 CONTROL terminal 4 AUDIO input terminal (AV INPUT 1) 5 VIDEO input terminal (AV INPUT 1) 6 S-VIDEO input terminal (AV INPUT 1) NTSC / PAL / SECAM AV INPUT 1... -
Page 11: Names Of Parts (Remote Control)
Names of Parts (Remote Control) Remote control Power ON/OFF button AV INPUT button VOL (+)/(–) buttons The front control section of the main unit is also provided with the AV INPUT, SELECT, VOL (+)/(–) and MENU buttons. * This manual describes button functions by referring to the buttons on the remote control. Front Control section HEAD PHONE... -
Page 12: Basic Operation
Basic Operation Turning on POWER Press POWER, located on the front side of the main unit. When the Power indicator is red, press the POWER ON/OFF on the remote control to turn on the monitor. The Power indicator changes from red to green. Screen (Video 1 mode) Switching AV INPUT AV1/AV2/COMPONENT/RGB ON/OFF... -
Page 13: Sound Volume
Sound Volume ON/OFF MUTE MENU AV INPUT SELECT To mute sound – SELECT Power ON/OFF standby ON/OFF MUTE MENU AV INPUT SELECT – SELECT Press VOL (+) to increase sound volume. The segment of indicator increases. Press VOL (–) to decrease sound volume. -
Page 14: Adjustment
Adjustment Adjusting the PICTURE settings ON/OFF MUTE MENU AV INPUT SELECT – SELECT Note The TINT indication appears only when NTSC (N358/N443) broadcasts are received. Switching the System Set the system to AUTO for normal reception. The AUTO mode automatically detects the receiving signal system and changes the reception system of the set. - Page 15 AV1,2, COMPONENT mode Selected item Press VOL (–) CONTRAST Decrease contrast 3‰ TINT – Toward purple ‰ COLOR Lower color intensity 3‰ BLACK LEVEL – Less bright ‰ SHARPNESS – Soft picture ‰ – Less red level ‰ BLUE – Less blue level ‰...
-
Page 16: Adjusting The Sound Settings
Adjustment Adjusting the SOUND settings ON/OFF MUTE MENU AV INPUT SELECT – SELECT When the RESET is selected while the SOUND Menu screen is displayed, adjusted items are Note canceled and the default settings (factory settings) are restored. Selected item Press VOL (–) Press VOL (+) to select speaker and Line out settings SPEAKER [ON]... -
Page 17: Adjusting The Preset Settings
Adjusting the PRESET settings The preset items can be set by the user. ON/OFF MUTE MENU AV INPUT SELECT – SELECT Selected item Factory setting BRIGHTNESS [BRIGHT] Maximum brightness UPSIDE [NORMAL] Normal vertical image orientation RIGHT/LEFT [NORMAL] Normal horizontal image orientation AV2 IN/OUT [IN] AV input 2 in input mode AV1 LINE... -
Page 18: Adjusting The Fine Sync Settings(Rgb Mode Only)
Adjustment Adjusting the FINE SYNC Settings(RGB mode only) FINE SYNC settings can be adjusted in RGB mode only. ON/OFF MUTE MENU AV INPUT SELECT – SELECT Selected item Press VOL (–) Set to the position at which CLOCK – ‰ there is the least noise Set to the position at which PHASE... -
Page 19: Connecting To Computer
Connecting to computer This LCD AV monitor can be used as the monitor of personal computer. This unit can be used with the following type of computer and display mode. Computer IBM PC(DOS/V, PC/V, PC/AT) and compatible computers AUDIO INPUT INPUT (VGA60Hz) To AUDIO... -
Page 20: Connection Pin Assignments
Connecting to computer Connection Pin Assignments RGB input terminal: 15-pin mini D-sub female connector CONTROL terminal: 9-pin mini Din female connector RGB Input Signals (Recommended Timing) Input signal Video signal: Analog input 0 to 0.7Vp-p 75 polarity) Horizontal synchronizing signal: TTL level (negative polarity) Vertical synchronizing signal: TTL level (negative polarity) -
Page 21: Rs232C Terminal Specifications
RS232C terminal specifications When a program is set, the LCD Monitor can be controlled from the computer using the RS232C terminal. The input signal (computer/video) can be selected, the volume can be adjusted and various other adjustments and settings can be made, enabling automatic programed playing. Attach an RS232C cable cross-type (commercially available) to the supplied Din-D/sub RS232C for the connections. -
Page 22: Communication Procedure
Connecting to computer Communication procedure Send the control commands from the computer via the RS232C terminal. The LCD Monitor operates according to the received command and sends a response message to the computer. Do not send multiple commands at the same time. Wait until the computer receives the OK response before sending the next command. - Page 23 CONTROL CONTENTS AV1 CONTRAST(0 ~ 60) AV1 BLACK LEVEL(–30 ~ +30) AV1 COLOR(0 ~ 60) AV1 TINT(–30 ~ +30) AV1 SHARPNESS(–30 ~ +30) AV1 RED(–30 ~ +30) AV1 BLUE(–30 ~ +30) AV1 DISPLAY AV1 RESET AV2 CONTRAST(0 ~ 60) AV2 BLACK LEVEL(–30 ~ +30) AV2 COLOR(0 ~ 60) AV2 TINT(–30 ~ +30) AV2 SHARPNESS(–30 ~ +30)
-
Page 24: Connecting To Video Equipment
Connecting to Video Equipment Watching TV To view a TV broadcast on the LCD monitor, the set-top box must be used with a TV tuner, satellite tuner or VCR. Refer to the diagram below for wiring. Note Refer to the manual how to connect these tuner to the room antenna terminal. Via TV Via Satellite TV, Pay TV AUDIO... - Page 25 Connecting to Video Equipment Via Web TV, Game Unit AUDIO VIDEO S-VIDEO To S-VIDEO input terminal To VIDEO/AUDIO input terminal To S-VIDEO output terminal To VIDEO/AUDIO output terminal SET TOP BOX(WEB TV) GAME UNIT...
-
Page 26: Connecting With Video Equipment
Connecting to Video Equipment Connecting with VIDEO Equipment This LCD AV monitor can be connected with the most of video equipment as follows. Digital Video Disc COMPONENT(INPUT) To VIDEO input terminal of COMPONENT To VIDEO output terminal of COMPONENT VIDEO AUDIO TUNER/BAND AUX 1... - Page 27 Connecting to Video Equipment Video, Game unit AV INPUT 1 AV INPUT 2 AUDIO AUDIO VIDEO S-VIDEO VIDEO To VIDEO/AUDIO To S-VIDEO To VIDEO/AUDIO input terminal input terminal input terminal To S-VIDEO To VIDEO/AUDIO To VIDEO/AUDIO output terminal output terminal output terminal VIDEO CAMERA ETC.
-
Page 28: Troubleshooting
• Make sure Contrast and Brightness adjustments are not set too low. • Lamp may have reached the end of life. (Contact a Sharp service shop for lamp replacement.) • Check Color adjustment. • Make sure proper color system is set. -
Page 29: Specifications
13.87 lbs [6.3 kg] (without stand) Infrared wireless type Auto-wide type language: English/French/Spanish/Portugues " [2 m] " [1.5 m] 2 pcs 1 pc LC-20VM2 3(RGB) 480(V) " [4 cm] Oval, 2 pcs. " (H) " (D) (with stand) 180 (D) mm] " (H) "... -
Page 30: Dimensional Drawings
Dimensional Drawings " (460 mm) " (402 mm) " (49.5 mm) " (10.5 mm) " (44 mm) " (180 mm) - Page 31 Memo...
