Technical Specifications

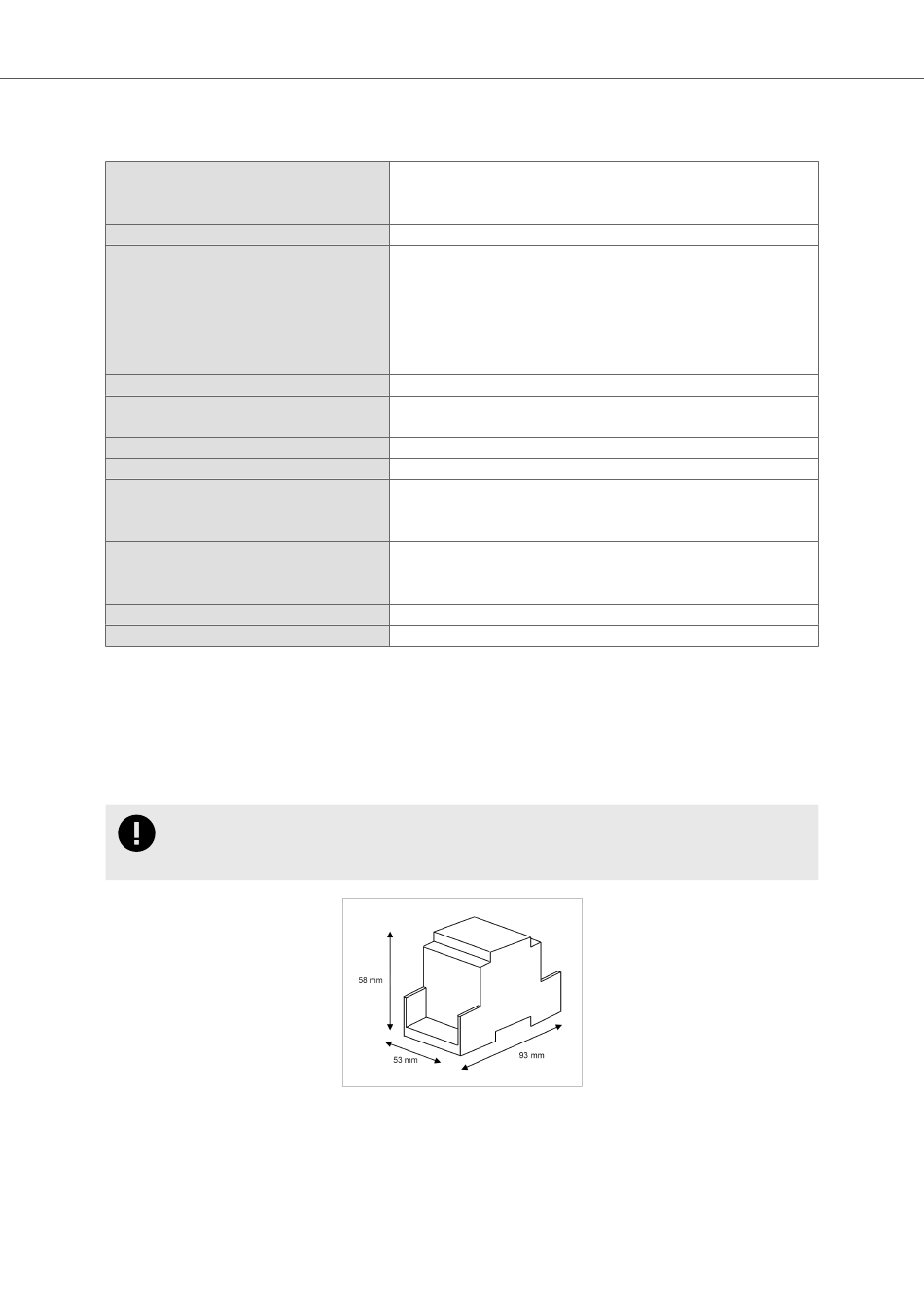

5.5. Technical Specifications
BACnet MS/TP - Modbus RTU
Operational and storage temperature
Operational and storage humidity

5.6. Dimensions

Net dimensions (HxWxD):
Millimeters: 93 x 53 x 58 mm
Inches: 3.66 x 2.08 x 2.28"
IMPORTANT
Leave enough clear space to wire the gateway easily and for the subsequent manipulation of
elements such as connectors, DIP switches, etc.
USER MANUAL Version 1.0.9
Plastic, type PC (UL 94 V-0)
Housing Net dimensions (HxWxD): 93 x 53 x 58 mm / 3.7 x 2.1 x 2.3"
Color: Light grey. RAL 7035
Weight 85 g (3 oz)
Wire cross-section/gauge per terminal:
One core: 0.2 .. 2.5 mm
Two cores: 0.2 .. 1.5mm
Terminal wiring
Three cores: Not permitted
Use solid or stranded wires (twisted or with ferrule).
Mounting Wall, DIN rail, or inside the indoor unit
EIA-485 port
1 x pluggable terminal block (3 poles: B, A, and SG)
AC unit port 1 x Specific socket
LED indicators 2 x Communication status
SW1: Gateway, AC unit, and baudrate configuration
DIP switches SW2: BACnet/Modbus address and temperature unit
SW3: Bus polarization and termination
Celsius: Op: 0 to +70°C; St: -20 to 85°C
Fahrenheit: Op: 32 to 158°F; St: -4 to 185°F
5% to 95% RH non-condensing
Isolation Voltage 1500 VDC
Isolation resistance 1000 MΩ
IN485FGL001I000 Gateway
2
(24 .. 11 AWG)
2
(24 .. 15 AWG)
Page 13 of 74
