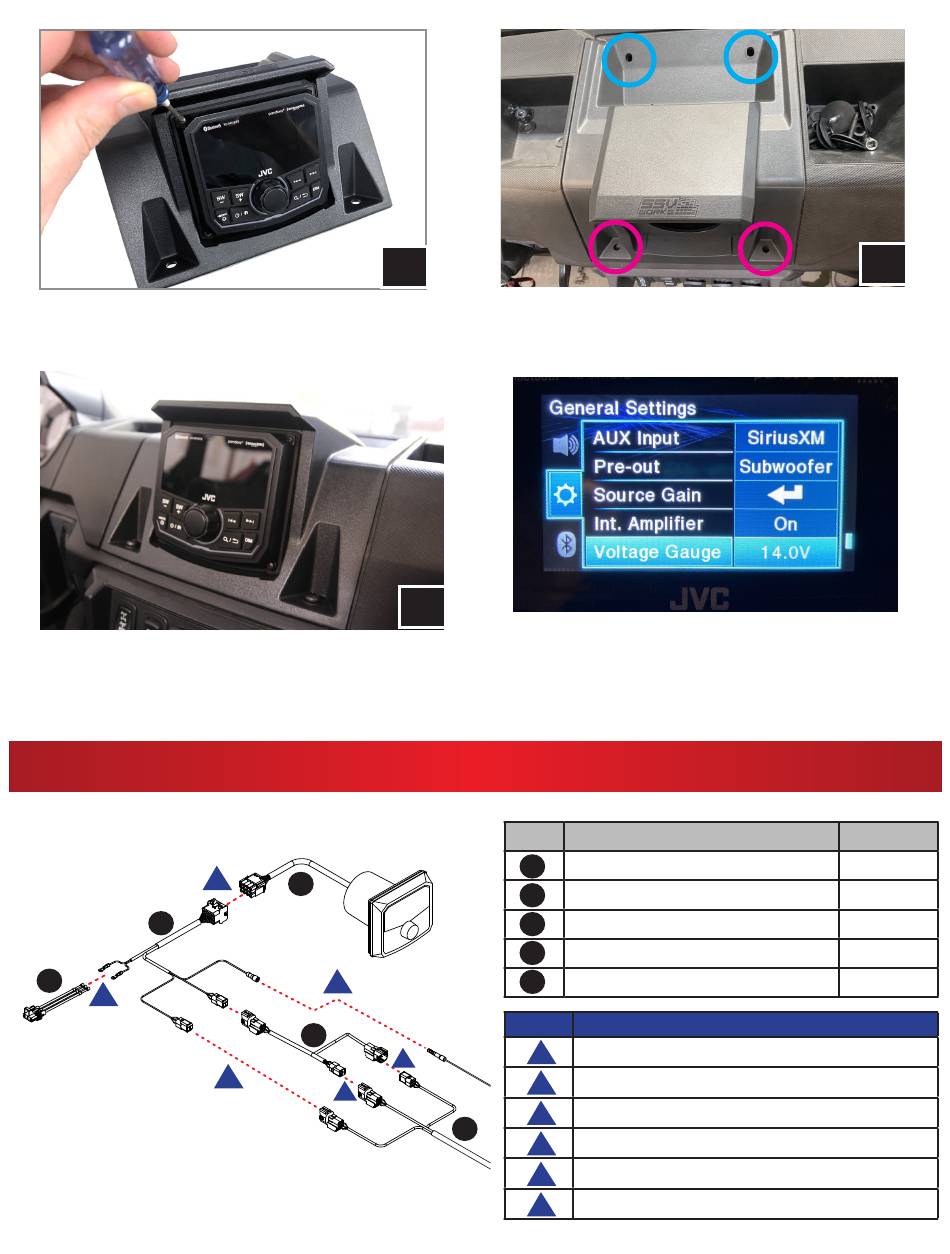

SSV Works RG4-Q3V1 Manual page 9

I. Secure the MR1 with the (4) M3.5 screws provided with the MR1.
K. Re-install all factory dash panels.
JVC MR1 WIRING DIAGRAM
2
3
B
A
1
D
4
C
E
I
J. Secure the backside of the R1 with (2) push pins (circled in blue).
Fasten (2) M6 T30 screws and washers into each front hole
(circled in pink).
K
Once the MR1 is powered on, verify the following presets in the General
Settings: Int. Amplifier = On
1
JVC MR1 Radio
2
JVC Harness Adapter, JVC to SSV
3
Pulse Connector, Power/Ground Harness
4
4-Pin "Y" Audio Splitter
5
Amp Power/Ground Harness
Detail
A
F
B
C
5
D
E
F
Description
Description
Connect JVC MR1 radio harness to B-H2367
Crimp B-H2367 Power/Ground wires to B-H1752
Connect B-H2367 Front Output to B-H2605 Front Input
Connect B-H2367 Amp Trigger to B-H2605
Connect B-H2367 Rear Output to B-H1403 "Y" Splitter
Connect B-H1403 to B-H2605 Rear & Sub Inputs
J
Part #
B-H2367
B-H1752
B-H1403
B-H2605
