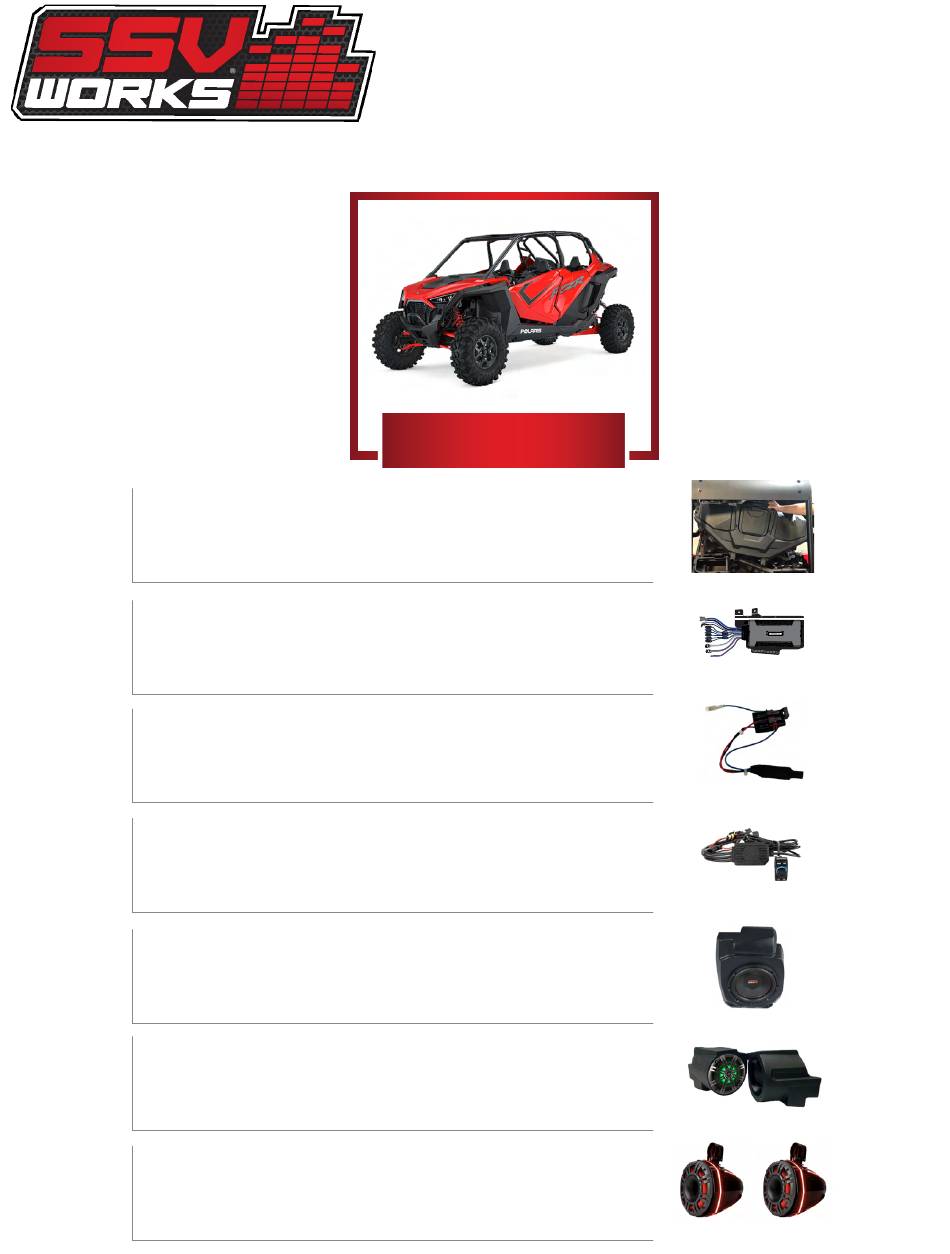

SSV WORKS, 4610 Calle Quetzal, Camarillo, CA 93012
www.SSVworks.com | Phone: 818-991-1778 | Fax: 866-293-6751
3
pg
Door Panel
Disassembly
7
pg
Amplifier
Installation
10
pg
Anti-Pop Circuit
Installation
12
pg
LIT-CC RGB Controller
Installation
15
pg
Subwoofer
Installation
18
pg
RGB Dash Pod
Installation
21
pg
RGB Rear Speaker Pod
Installation
1400 Watt RGB/Audio System with JVC
Polaris RZR Pro
RZ5-PHZ6KL
2020-2024 Polaris RZR Pro
Phase-6 K-Spec 6 Speaker
Advertisement
Related Manuals for SSV Works RZ5-PHZ6KL
Summary of Contents for SSV Works RZ5-PHZ6KL
- Page 1 RZ5-PHZ6KL 2020-2024 Polaris RZR Pro Phase-6 K-Spec 6 Speaker SSV WORKS, 4610 Calle Quetzal, Camarillo, CA 93012 1400 Watt RGB/Audio System with JVC www.SSVworks.com | Phone: 818-991-1778 | Fax: 866-293-6751 Polaris RZR Pro Door Panel Disassembly Amplifier Installation Anti-Pop Circuit...
- Page 2 WIRING DIAGRAM OF COMPLETE KIT Figure 1 Figure 1 is designed to show the installer a reference overview of the complete 5 speaker wiring diagram. Each installation section will have its own detailed wiring diagram. Description Part # Description Part # Kicker PXA1000.5 Amplifier SD-PXA10005 Driver/Passenger RGB/Audio “Y”...
- Page 3 PANELS AND DASH DISASSEMBLY A. Remove all the seats from the vehicle. Compress the release lever located in front of the seat base. With the release lever compressed, tilt the seat forward and remove from the vehicle. B. Using a 8mm wrench. Disconnect the negative battery cable from C.
- Page 4 F. Use a panel tool to assist with the removal of the (3) trim panels. The G. Open the glove compartment. Remove the (4) T25 Torx screws and blue highlighted points represent the location of the panel clips that are (3) T40 Torx screws.
- Page 5 L. Open the center console and twist to disengage the locking pins M. Remove the (2) T40 torx screws from both sides of the center console and and lift out the center console tray. lift out the rear portion of the center console. N.
- Page 6 R. Rotate the fuse block counterclockwise and remove the now exposed S. Remove the (2) push pins on the passenger side front of the center push pin. console. T. Lift the shift boot to expose the (1) T40 screw for removal U.
-
Page 7: Tools Needed For Installation
WARRANTY INFORMATION: Please read and understand these All SSV Works enclosures are covered by a limited lifetime warranty against defects in material or instructions completely before workmanship. All SSV Works Electronics are covered by a limited 1 year warranty against defects installation to avoid possible injury, or in material or workmanship. - Page 8 AMP WIRING 1000.5 POWER - CONNECT TO AMP POWER HARNESS (A-H1Q) AMP TURN ON - CONNECT TO ANTI-POP CIRCUIT AMP TURN ON SUB LEVEL CONTROL - CONNECT TO 240-PXA-SLC KICKER BASS KNOB (SOLD SEPARATELY) INPUT (FRONT/AMP1) - CONNECT TO B-H3543 4-PIN MALE TO RCA ADAPTER INPUT (REAR/AMP2) - CONNECT TO B-H3543 4-PIN MALE TO RCA ADAPTER INPUT (SUB L/R) - CONNECT TO B-H3545 4-PIN FEMALE TO RCA ADAPTER OUTPUT (FRONT) - CONNECT TO FRONT RGB/AUDIO SPEAKER HARNESS (B-H2935)
- Page 9 B. Remove the (5) push pins located on the plastic tray in the dash C. Extract (2) T25 screws located at the back of the plastic tray, once cavity. extracted remove the plastic tray. Set aside the screws. The plastic tray will not be used in this installation.
- Page 10 ANTI-POP CIRCUIT CONNECTION B. Plug the blue Amp Turn on wire of the Anti-Pop circuit to the Kicker A. Plug the Anti-POP circuit (B-H2917) to a unused Pulse connector amplifier amp turn-on wire. port on the busbar. To vehicle factory busbar Pulse connector To Kicker Amp Blue Turn-On Wire...
- Page 11 AMPLIFIER WIRING DIAGRAM Not Used Description Part # Detail Description RZ5 Subwoofer Adapter Harness B-H2591 Plug RZ5 Subwoofer Adapter Harness to 4 Pin to RCA Adapter (B-H3545) RZ5 Factory Harness Amplifier Bypass Harness B-H2276 Plug Front Output to 4 Pin to RCA Adapter (B-H3543) RZ5 Amplifier Anti-POP Circuit B-H2917 Plug Rear Output to 4 Pin to RCA Adapter (B-H3543)
- Page 12 WARRANTY INFORMATION: All SSV Works enclosures are covered by a limited lifetime warranty against defects in material or workmanship. All SSV Works Electronics are covered by a limited 1 year warranty against defects in material or workmanship. Labor for replacement of defective components is not covered. Contact SSV Works for further warranty information.
- Page 13 RGB LED CONTROLLER COMMAND CENTER WIRING DIAGRAM Description Part # RGB LED Controller Rocker Switch for 230-LIT-CC 230-LIT-CC SWITCH Works RGB LED Controller Command Center RGB Extension, 2 ft. B-H2934 230-LIT-CC Pulse Connector Power Harness B-H2744 RGB Front Speaker Harness, 4 ft. B-H2935...
- Page 14 RGB LED CONTROLLER COMMAND CENTER GENERAL OPERATIONS 1. Select MODE 2. Mode/Speed 3. Favorite/Preset 4. Power On/Off 5. Color/Brightness Power On/ Off: - Press button to power unit on. Press and hold button for 2 sec. to power off. RGB ring around the knob illuminates when powered on.
- Page 15 UNDER DASH SUBWOOFER ENCLOSURE PARTS LIST PARTS LIST IMAGES 230-RZ5-UD10V Enclosure Base Bracket Clamp Bracket M6x1.0x12mm x9 5. M6x1.0x40mm x2 6. M6 washers x11 7. M6 Speed Clips x2 UNDER DASH SUBWOOFER ENCLOSURE ASSEMBLY TOOLS NEEDED FOR INSTALLATION - Torx Driver T25 T30 T40 - Torx Driver T25 T30 T40 - Panel removal tools A.
- Page 16 B. Slip on (2) M6 speed clips onto the specified locations of the firewall. C. From the Passenger footwell, lift the 230-RZ5-UD10V into the dash cavity. D. The top of the enclosure will tuck under the chassis cross bar. The E.
- Page 17 H. Connect the subwoofer cable to the 500.1 amplifier output. G. Secure the bottom of the enclosure with the provided M6x1.0x40mm T30 screws and washers to the M6 clip nuts attached to the firewall. UNDER DASH SUBWOOFER WIRING DIAGRAM Description Part # Detail Description...
- Page 18 SPEAKER DASH POD PARTS LIST PARTS LIST IMAGES Speaker Dash Pod, Drive Side Speaker Dash Pod, Passenger Side Kicker Horn Speakers, 6.5” 2mm Self Adhesive Speaker Gasket Driver and Passenger Side Brackets T Brackets (x2) P and D Bracket Hardware Pack, M6x- 12mm [B-HPM612-4] T Brackets Hardware Pack, M6x16mm M6x1 x 16mm Screw and Washer Pack...
- Page 19 SPEAKER DASH POD INSTALLATION TOOLS NEEDED FOR INSTALLATION - T30 Torx Driver - Phillips Screw Driver A. Start by removing the front fenders. B. Remove the screw holding the door latch panel. C. Remove the factory speaker grill by removing the (2) screws on the D.
- Page 20 I. Slide up the RZR kick pod under the dash. J. Secure the T brackets of each pod to the factory bosses on the foot- well using (2 each) #14x.75 phillips screws [B-HP#14-4]. K. Secure the D (driver) and P (passenger) pod brackets to the vehicle frame using (2) M6x16 screws [B-HP3503] circled above. ***Test the system for functionality before reassembling the panels*** L.
- Page 21 REAR CAGE POD PARTS LIST PARTS LIST IMAGES Cage Pod Enclosures with Dual Mounting Clamp Base x 2 2” Ring Clamp x 4 M6x1.0x20mm (8mm Hex Kicker Horn Speaker (1 pair) Head) Screws & Washers x4 M6x1.0x45mm (5mm Allen M6x1.0x6mm (3mm Allen B-H2195 Rear Speaker Harness B-H1913 Speaker Extension Head) Screws &...
-
Page 22: Installation Notes
C1. Place both ring mounting clamps on the cage C2. Press the clamps onto the roll cage over the using the plastic bag to prevent scratching. plastic bag. THE CLAMPS! SSV Works Tension Clamps are designed to grip tightly onto the tube. - Page 23 E. Take the B-H2195 rear speaker harness and plug into the B-H1913 D. Place the cage mount pod in its final mounting location and secure (add B-H1912 for 4 door models) rear extension harness. Plug the to the clamps using the two (2) M6 allen socket head bolts and B-H2936 RGB “Y”...
- Page 24 REAR SPEAKER PODS WIRING DIAGRAM Description Part # 4-Pin Audio Extension Harness, 8 ft. B-H1913 4-Pin Audio Extension Harness, 2 ft. B-H1912 (for 4 door models) RGB Extension Harness, 2 ft. B-H2934 (for 4 door models) Rear RGB “Y” Harness, 7 ft. B-H2936 Rear “Y”...
-
Page 25: Amp Wiring Diagram
Install fuseholder between B-H1587 & battery terminal cable. Connect ground ring terminal to chassis ground. Connect battery terminal cable to battery positive pole THIS CONCLUDES THE INSTALLATION PROCESS. REPLACE THE FACTORY PANELS AND SEATS. QUESTIONS? PLEASE CONTACT SSV WORKS AT 818-991-1778 OR EMAIL SUPPORT@SSVWORKS.COM... - Page 26 © 2024 SSV Works, Camarillo, CA 93012 RZ5-PHZ6KLRC Rev. A 11-6-24...
