SSV Works RG4-Q3V1 Manual page 12

SUBWOOFER ENCLOSURE INSTALLATION
TOOLS NEEDED FOR INSTALLATION

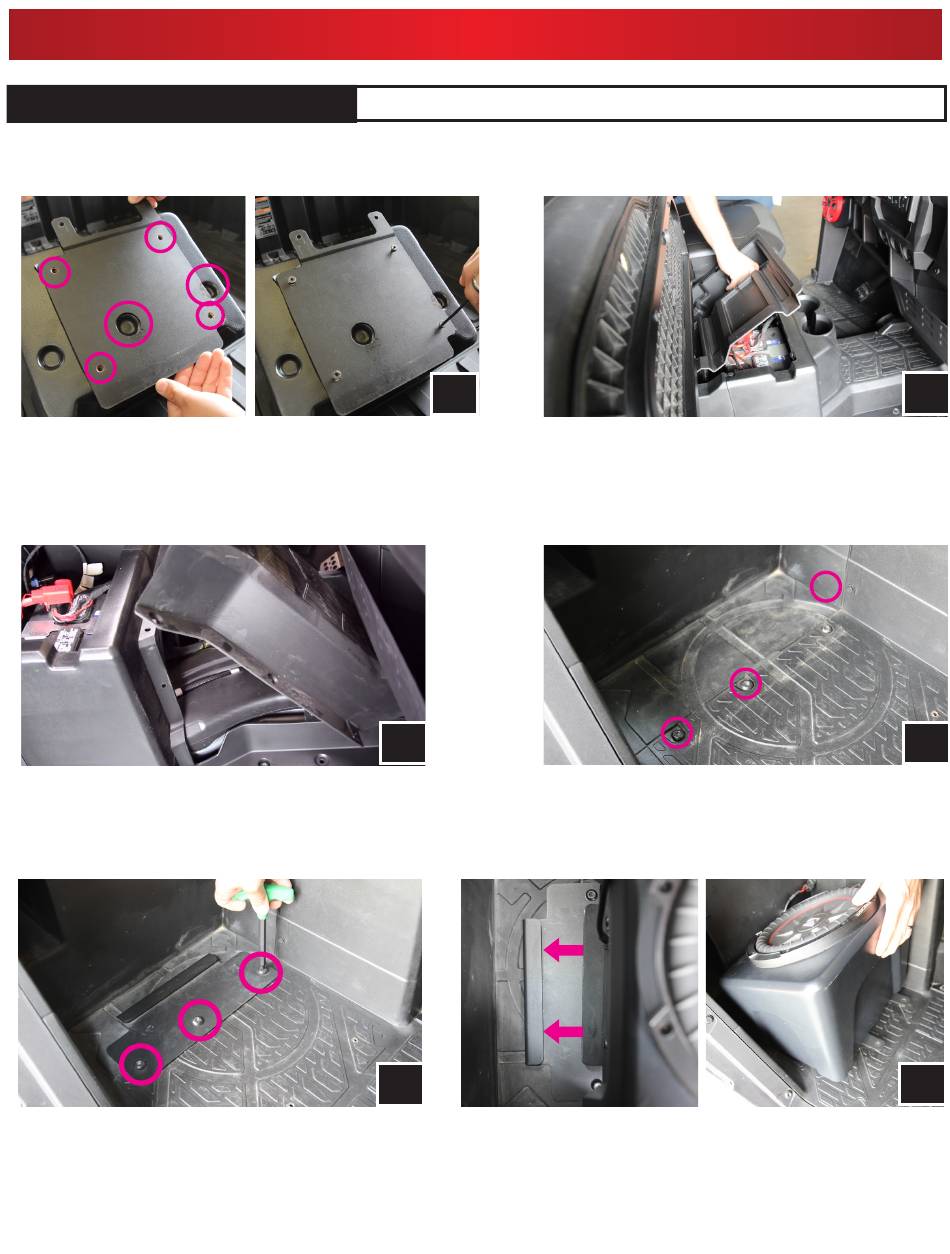

A. Align bracket A's holes with the dimples/recess' circled in pink on the
bottom of the enclosure. Using four (4) flathead 4mm screws, mount
the A bracket to the bottom of the enclosure. After the bracket is secure,
cover the screw heads with the (4) foam circles.
C. Using a panel removal tool, extract the (8) push pins to
remove the center driveline center column cover.
E. Place SSV bracket B over the factory screw holes and refasten
down with the (3) factory T40 torx screws removed in the
previous step.
12
- T-30 & T-40 Torx Driver - 4mm Allen Key
A
C
E
F. With the bracket secured to the floorboard, place the enclosure in front of
the floorboard bracket. To allow proper engagement, tilt the enclosure back
slightly and slide its bottom bracket into the floorboard bracket catch.
- Panel Removal Tool - Drill - 13/64" Drill Bit
B. Flip up passenger seat and remove center tray to access
battery. Disconnect the negative battery cable from the battery.
D. Located on the floorboard to the right of the battery
compartment, remove the (3) T40 torx screws circled in pink.
B
D
F
