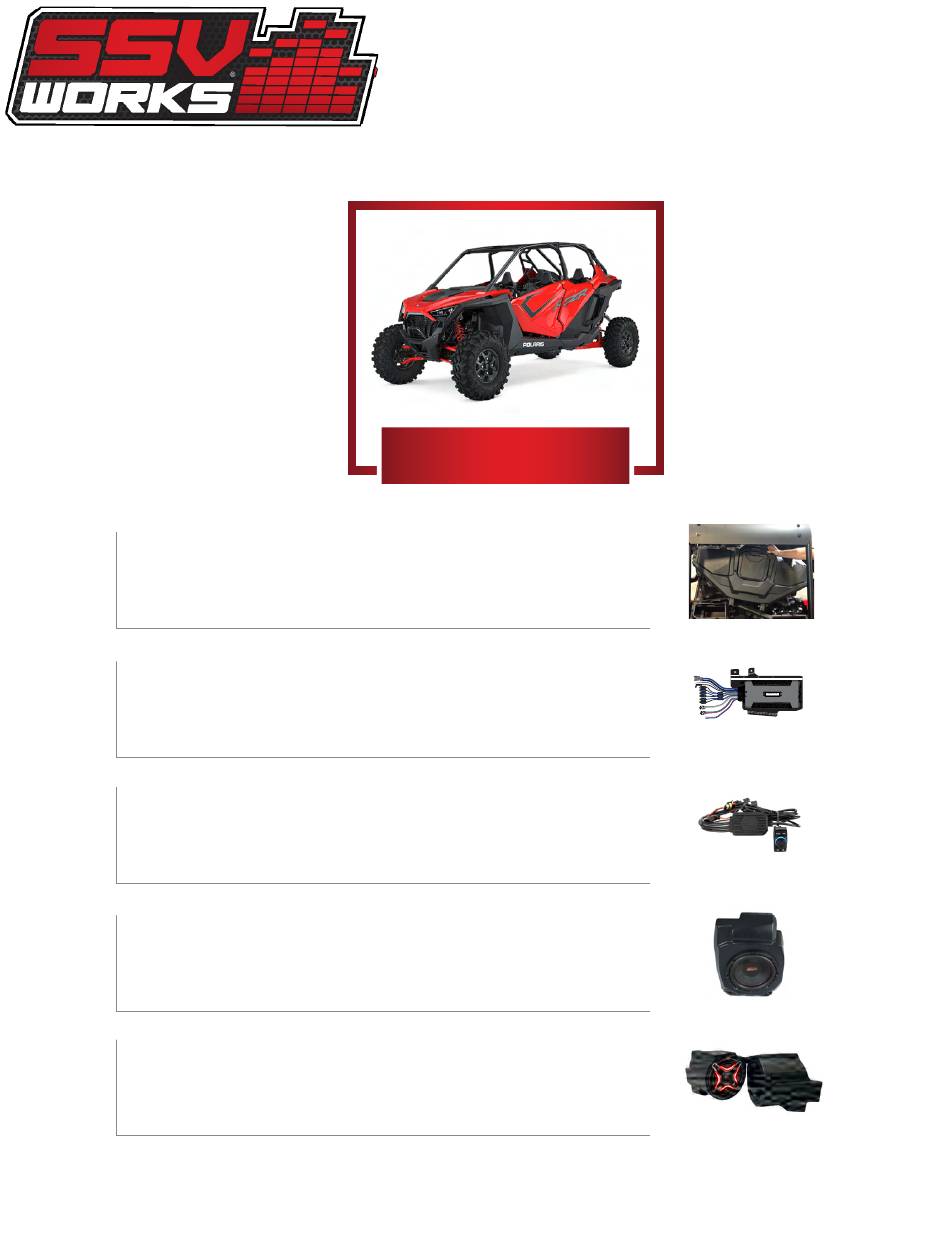

SSV WORKS, 4610 Calle Quetzal, Camarillo, CA 93012
www.SSVworks.com | Phone: 818-991-1778 | Fax: 866-293-6751
3
pg
Door Panel
Disassembly
7
pg
Amplifier
Installation
9
pg
LIT-CC RGB Controller
Installation
12
pg
Subwoofer
Installation
16
pg
RGB Dash Pod
Installation
RZR Pro XP
RZ5-PHZ3V
2020-2024 Polaris RZR Pro
Phase-3 V-Spec 3 Speaker
1400 Watt RGB Audio Kit with JVC
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SSV Works RZ5-PHZ3V
Summary of Contents for SSV Works RZ5-PHZ3V
- Page 1 RZ5-PHZ3V 2020-2024 Polaris RZR Pro Phase-3 V-Spec 3 Speaker SSV WORKS, 4610 Calle Quetzal, Camarillo, CA 93012 1400 Watt RGB Audio Kit with JVC www.SSVworks.com | Phone: 818-991-1778 | Fax: 866-293-6751 RZR Pro XP Door Panel Disassembly Amplifier Installation LIT-CC RGB Controller...
- Page 2 WIRING DIAGRAM OF COMPLETE KIT Figure 1 Figure 1 is designed to show the installer a reference overview of the complete 3 speaker RGB wiring diagram. Description Part # Bluetooth Media Receiver w/ 2.7” color display B-MR1 Universal FM Antenna Cable, 55” B-H1249 JVC to SSV Harness Adapter, 3 ft.
- Page 3 PANELS AND DASH DISASSEMBLY A. Remove all the seats from the vehicle. Compress the release lever located in front of the seat base. With the release lever compressed, tilt the seat forward and remove from the vehicle. B. Using a 8mm wrench. Disconnect the negative battery cable from C.
- Page 4 F. Use a panel tool to assist with the removal of the (3) trim panels. The G. Open the glove compartment. Remove the (4) T25 Torx screws and blue highlighted points represent the location of the panel clips that are (3) T40 Torx screws.
- Page 5 L. Open the center console and twist to disengage the locking pins M. Remove the (2) T40 torx screws from both sides of the center console and and lift out the center console tray. lift out the rear portion of the center console. N.
- Page 6 R. Rotate the fuse block counterclockwise and remove the now exposed S. Remove the (2) push pins on the passenger side front of the center push pin. console. T. Lift the shift boot to expose the (1) T40 screw for removal U.
-
Page 7: Tools Needed For Installation
All SSV Works enclosures are covered by a limited lifetime warranty against defects in instructions completely before material or workmanship. All SSV Works Electronics are covered by a limited 1 year warranty installation to avoid possible injury, or against defects in material or workmanship. All SSV Works Speakers are covered by a damage to the accessory or vehicle. - Page 8 C. Place the DMR1 mounting bracket over the back of the MR1, followed by the base mounting plate. D. Place the (4) dash screws through the MR1, cover panel, DMR1 mounting bracket and thread into the base mounting plate. Do not fully tighten the screws.
- Page 9 G. Once crimped, remove port cover and plug in to the busbar. H. Connect the B-HRCA3 RCA cables to the JVC radio’s Front and Sub W Line Outs. I. Connect the MR1 power harness to the radio harness. Plug the J.
- Page 10 JVC MR1 WIRING DIAGRAM Not Used Description Part # Detail Description Plug Universal FM Antenna Cable to JVC Radio JVC MR1 Radio Connect JVC MR1 radio harness to B-H2367 Universal Fm Antenna Cable, 55” B-H1249 Crimp B-H2367 to B-H1752. Red to Red for ACC Power and JVC Harness Adapter, JVC to SSV B-H2367 Red to Yellow for Constant Power.
- Page 11 WARRANTY INFORMATION: Please read and understand these All SSV Works enclosures are covered by a limited lifetime warranty against defects in material or instructions completely before workmanship. All SSV Works Electronics are covered by a limited 1 year warranty against defects in installation to avoid possible injury, or material or workmanship.
- Page 12 A. Remove the (5) push pins located on the plastic tray behind the B. Attach the body bracket (B-A3451) under the bus bar using the factory screw bosses and T25 screws. radio. Extract (2) T25 screws located at the back of the plastic tray and below the bus bar, once extracted remove the plastic tray.
- Page 13 AMPLIFIER WIRING DIAGRAM Not Used Description Part # Detail Description B-H2367 Amp Turn-On Wire Plug B-H2397 Amp Turn-On Wire to Kicker PXA1000.5 Amp Turn-On Wire JVC RCA Level Output (Front) Plug JVC Front Line Out to RCA Cable JVC RCA Level Output (Sub) Plug JVC Sub Line Out to RCA Cable Amp Power Wiring Kit Assembly, 10 ft.
- Page 14 WARRANTY INFORMATION: All SSV Works enclosures are covered by a limited lifetime warranty against defects in material or workmanship. All SSV Works Electronics are covered by a limited 1 year warranty against defects in material or workmanship. Labor for replacement of defective components is not covered. Contact SSV Works for further warranty information.
- Page 15 RGB LED CONTROLLER COMMAND CENTER WIRING DIAGRAM Description Part # RGB LED Controller Rocker Switch for 230-LIT-CC 230-LIT-CC SWITCH Works RGB LED Controller Command Center RGB Extension, 2 ft. B-H2934 230-LIT-CC Pulse Connector Power Harness B-H2744 RGB Front Speaker Harness, 4 ft. B-H2935...
- Page 16 RGB LED CONTROLLER COMMAND CENTER GENERAL OPERATIONS 1. Select MODE 2. Mode/Speed 3. Favorite/Preset 4. Power On/Off 5. Color/Brightness Power On/ Off: - Press button to power unit on. Press and hold button for 2 sec. to power off. RGB ring around the knob illuminates when powered on.
- Page 17 UNDER DASH SUBWOOFER ENCLOSURE PARTS LIST PARTS LIST IMAGES 230-RZ5-UD10V Enclosure Base Bracket Clamp Bracket M6x1.0x12mm x9 M6x1.0x40mm x2 M6 washers x11 M6 Speed Clips x2 UNDER DASH SUBWOOFER ENCLOSURE ASSEMBLY TOOLS NEEDED FOR INSTALLATION - Torx Driver T25 T30 T40 - Torx Driver T25 T30 T40 - Panel removal tools A.
- Page 18 B. Slip on (2) M6 speed clips onto the specified locations of the firewall. C. From the Passenger footwell, lift the 230-RZ5-UD10V into the dash cavity. D. The top of the enclosure will tuck under the chassis cross bar. The E.
- Page 19 H. Connect the subwoofer cable to the 500.1 amplifier output. G. Secure the bottom of the enclosure with the provided M6x1.0x40mm T30 screws and washers to the M6 clip nuts attached to the firewall. UNDER DASH SUBWOOFER WIRING DIAGRAM Description Part # Detail Description...
- Page 20 CONNECTING AMPLIFIER POWER & GROUND CABLE TO BATTERY Battery Terminal Cable Power Wire Break Break off tab off tab A1. Remove the bottom cover of the fuse holder A2. Extract both fuse holder screws and fasten A3. Attach both the Power Wire and Battery by extracting the 2 screws.
- Page 21 SPEAKER DASH POD PARTS LIST PARTS LIST IMAGES Speaker Dash Pod, Drive Side Speaker Dash Pod, Passenger Side SSV Works A-Spec Speakers (pre-mounted) 2mm Self Adhesive Speaker Gasket Driver and Passenger Side Brackets T Brackets (x2) P and D Bracket Hardware Pack, T Brackets Hardware Pack, M6x16mm #14 x .75”...
- Page 22 SPEAKER DASH POD INSTALLATION TOOLS NEEDED FOR INSTALLATION - T30 Torx Driver - Phillips Screw Driver A. Start by removing the front fenders. B. Remove the screw holding the door latch panel. C. Remove the factory speaker grill by removing the (2) screws on the D.
- Page 23 G. Slide up the RZR kick pod under the dash. H. Secure the T brackets of each pod to the factory bosses on the footwell using (2 each) #14x.75 phillips screws [B-HP#14-4]. I. Secure the D (driver) and P (passenger) pod brackets to the vehicle frame using (2) M6x16 screws [B-HP3503] circled above. ***Test the system for functionality before reassembling the panels*** J.
- Page 24 K. Completed installation of driver and passenger side of SSV Works RZR 6.5” dash pods. L. Reinstall the front fenders.
- Page 25 © 2024 SSV Works, Camarillo, CA 93012 RZ5-PHZ3V Rev. A 12-5-24...
