SSV Works RG4-Q3V1 Manual page 5

AMP PLATE INSTALLATION PARTS LIST
WARRANTY INFORMATION:
All SSV Works enclosures are covered by a limited lifetime warranty against defects in material
or workmanship. All SSV Works Electronics are covered by a limited 1 year warranty against
defects in material or workmanship. All SSV Works speakers are covered by a limited warranty
against defects in material or workmanship. Labor for replacement of defective components is
not covered. Contact SSV Works for further warranty information.

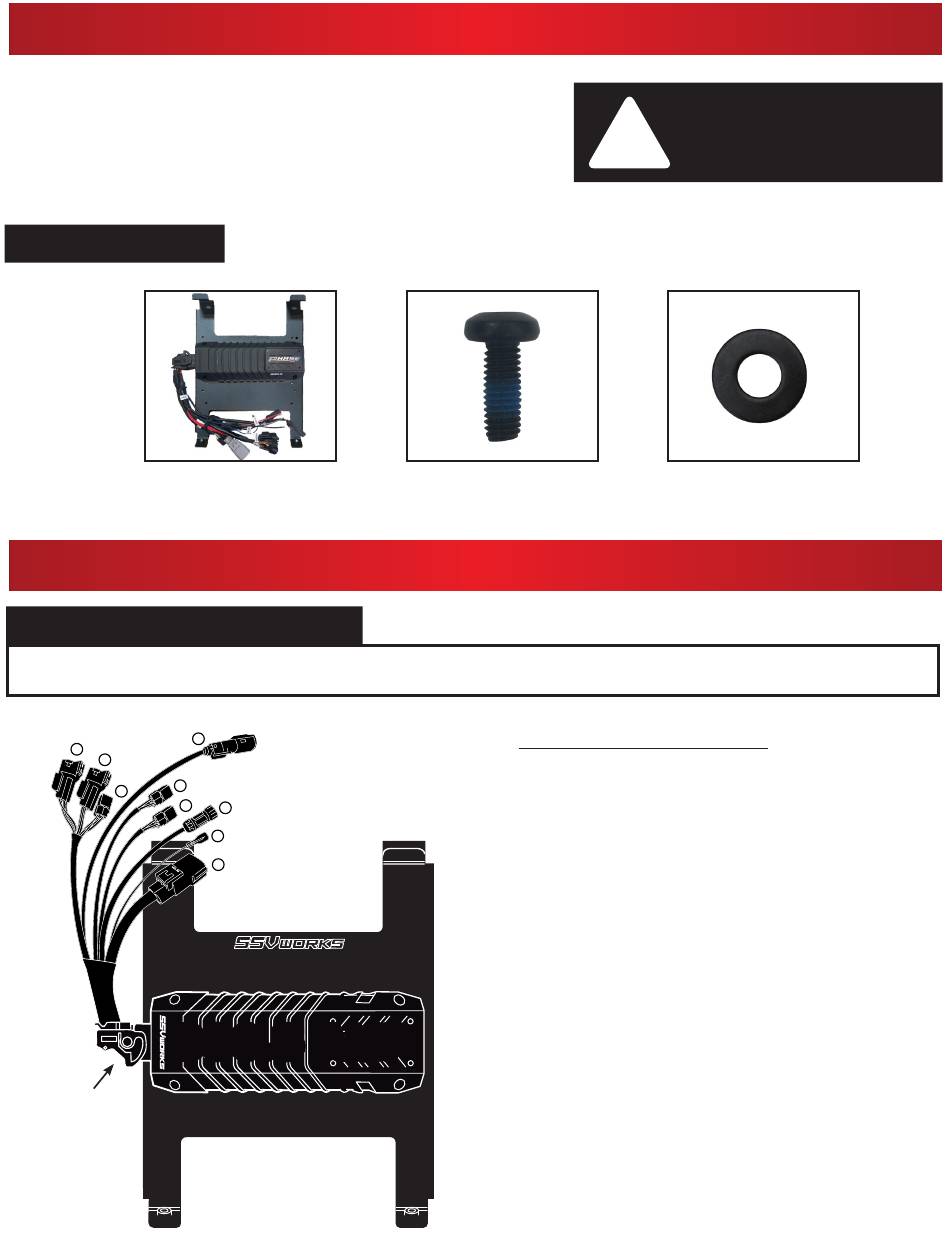

PARTS LIST IMAGES
1. Amp Tray (B-A2554)
pre-loaded with Phase EQ Amp
AMP PLATE INSTALLATION
TOOLS NEEDED FOR INSTALLATION
- T25, T30 Torx Driver
1
2
5
3
6
800.5 AMP 800.5 AMP
B-H2605
4
7
8
9
2. M6 x 1.0 Screw x4
(T-30 Torx) {B-S2187]
B-H2605 8005 Amplifier Harness
1. INPUT (FRONT) - CONNECT TO JVC MR1 "FRONT SPEAKERS"
2. INPUT (REAR) - CONNECT TO B-H1403 AUDIO "Y" SPLITTER
3. INPUT (SUB) - CONNECT TO B-H1403 AUDIO "Y" SPLITTER
4. OUTPUT (SUB) - CONNECT TO B-H2702 2-PIN SUB EXTENSION
5. OUTPUT (FRONT) - CONNECT TO FRONT SPEAKER HARNESS
6. OUTPUT (REAR) -CONNECT TO REAR SPEAKER EXTENSION
7. EXT SWITCH - ROCK & RIDE
8. AMP TURN-ON
9. TO POWER INPUT
Please read and understand these
!
instructions completely before
installation to avoid possible injury, or
damage to the accessory or vehicle.
3. M6 Washer x4
5
