WIRING DIAGRAM OF COMPLETE KIT
1
2
3
4
5
12

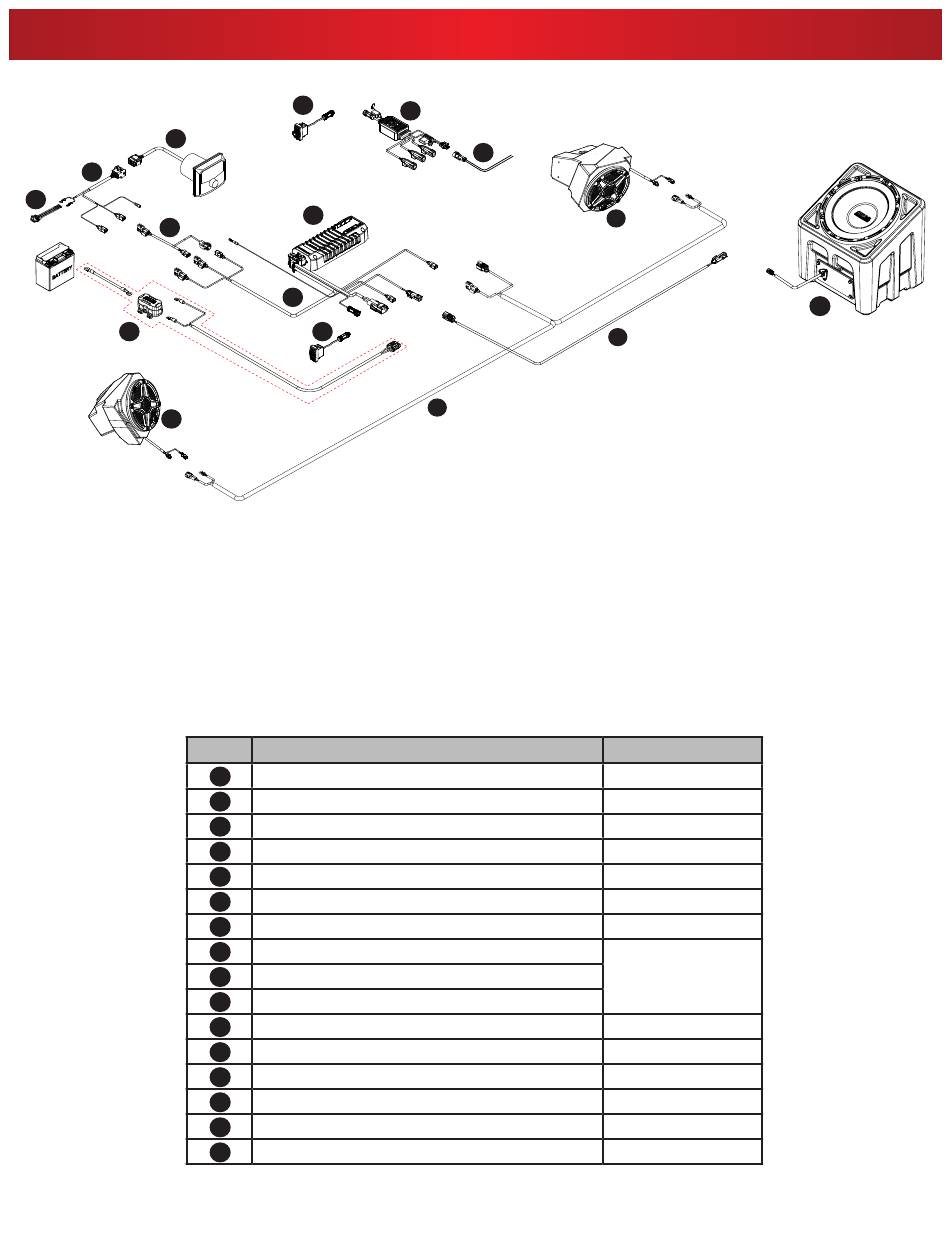

Figure 1 is designed to show the installer a reference overview of the complete 3 speaker RGB LED wiring
diagram. Each installation section will have its own detailed wiring diagram.
2
8
7
6
11
Description
1
Bluetooth Media Receiver w/ 2.7" color display
2
JVC to SSV Harness Adapter, 3 ft.
3
Pulse Connector Power/Ground Harness
4
4-Pin "Y" Audio Splitter
5
Amp Wiring Kit Assembly, 10 ft.
6
800.5 Amplifier 32-Pin Universal Harness
7
800 Watt 5 Channel Amplifier
8
RGB LED Controller Rocker Switch for 230-LIT-CC
9
SWITCH Works RGB LED Controller Command Center
230-LIT-CC Power Harness
10
Amplifier Rocker Switch for B-A8005
11
Front Kick Pod Enclosure, Left
12
13 RGB Front Speaker Harness, 4 ft.
14 Front Kick Pod Enclosure, Right
15 2-Pin Audio, Sub Extension Harness
16 X3 Loaded Subwoofer Enclosure, 10" 2 ohms
9
10
13
14
15
Part #
B-MR1
B-H2367
B-H1752
B-H1403
A-H1Q
B-H2605
B-A8005
230-LIT-CC
B-AMPRS
220-RG4-F65V
B-H2935
220-RG4-F65V
B-H2702
230-RG4-SB10V
16
Figure 1
