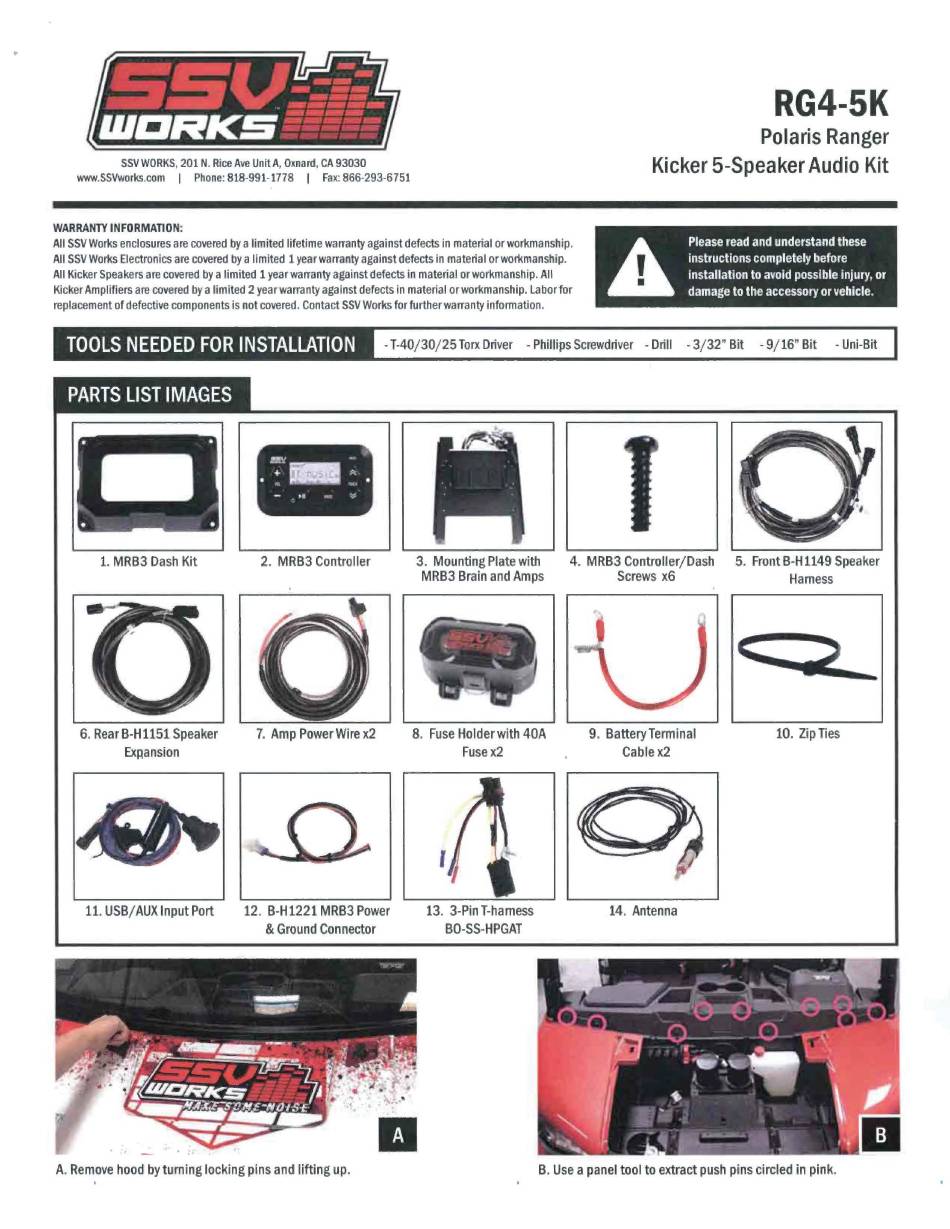

SSV Works RG4-5K Quick Start Manual

•
SSVWORKS,
201
N . Rice Ave Unit A, Oxnard, CA
93030
www.SSVWorks.com I Phone:
818-991-1778
I Fax:
866-293-6751
WARRANTY INFORMATION:
All SSV Works enclosures are covered by a limited lifetime warranty against defects in material or workmanship.
All SSV Works Electronics are covered by a limited 1 year warranty against defects in material or workmanship.
All Kicker Speakers are covered by a limited 1 year warranty against defects in material or workmanship. All
Kicker Amplifiers are covered by a limited 2 year warranty against defects in material or workmanship. Labor for
replacement of defective components is not covered. Contact SSV Works for further warranty information.

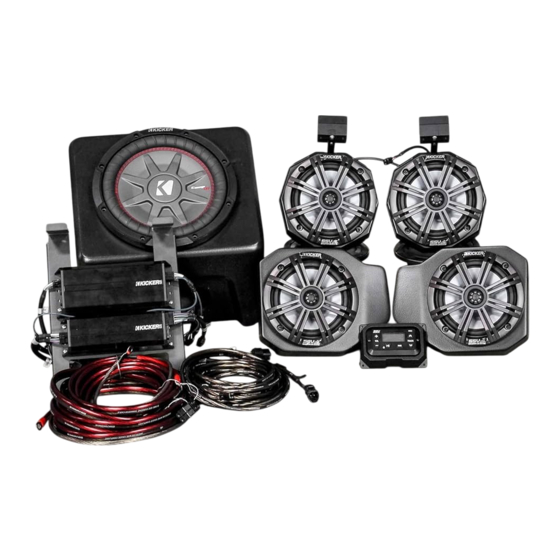

RG4-5K
Polaris Ranger
Kicker 5-Speaker Audio Kit
A
Please read and understand these
instructions completely before
installation to avoid possible Injury, or
damage to the accessory or vehicle.
TOOLS NEEDED FOR INSTALLATION
PARTS LIST IMAGES
- T-40/30/25 Torx Driver - Phillips Screwdriver - Drill - 3/32" Bit -9/16" Bit - Uni-Bit
1. MRB3 Dash Kit
6. Rear B-H 1151 Speaker
ExAansion
11. USB/ AUX Input Port
-
..
♦ - <>
e .. •• •
-
. .
-
~
2. MRB3 Controller
7. Amp Power Wire x2
12. B-H1221 MRB3 Power
&
Ground Connector
3. Mounting Plate with
MRB3 Brain and Amps
~
~
-~-. "4
,, ,
. .
. .
8. Fuse Holder with 40A
Fusex2
I
13. 3-Pin T-harness
B0-SS-HPGAT
4. MRB3 Controller/Dash 5. Front B-H 1149 Speaker
Screws x6 Harness
9. BatteryTerminal
Cablex2
14. Antenna
.?
10. ZipTies
II
A. Remove hood by turning locking pins and lifting up. B. Use a panel tool to extract push pins circled in pink.
