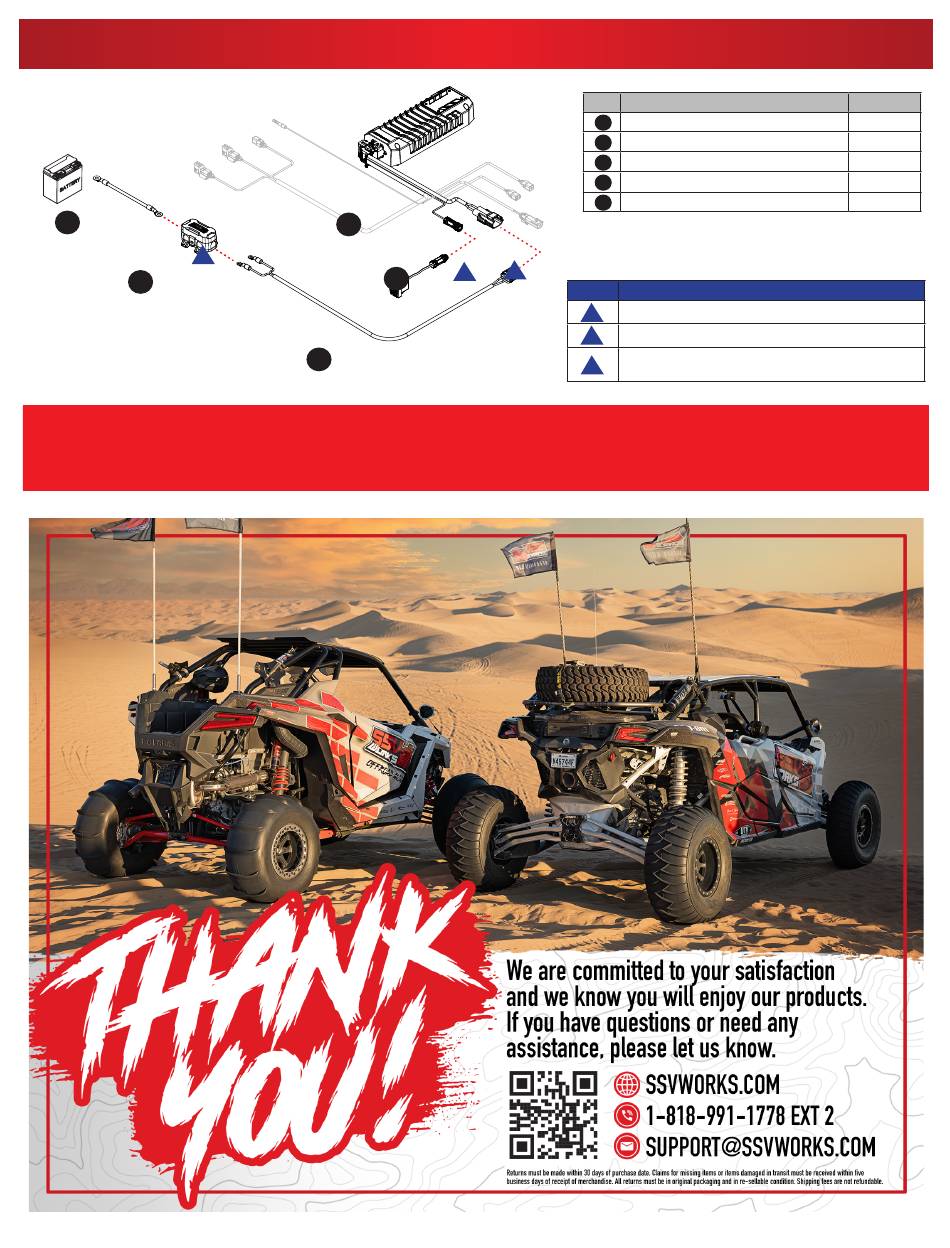

AMP WIRING DIAGRAM

5
4
THIS CONCLUDES THE INSTALLATION PROCESS. REPLACE THE FACTORY PANELS AND SEATS.
QUESTIONS? PLEASE CONTACT SSV WORKS AT 818-991-1778 OR EMAIL SUPPORT@SSVWORKS.COM
© 2023 SSV Works, Oxnard, CA 93030
1
C
2
RG4-Q3V1 8-30-23
A
B
3
Description
1
800.5 Amplifier 32-Pin Universal Harness
2
Amp Power/Ground Harness
3 Rock & Ride Rocker Switch
4
Fuseholder
5
Battery Terminal Cable
Detail Description
Connect B-H2605 (power/ground) to B-H1587
A
Connect Rock & Ride rocker switch to "Ext. Switch"
B
Install fuseholder between B-H1587 & battery terminal
C
cable. Connect ground ring terminal to chassis ground.
Part #
B-H2605
B-H1587
17
