SSV Works RG4-Q3V1 Manual page 7

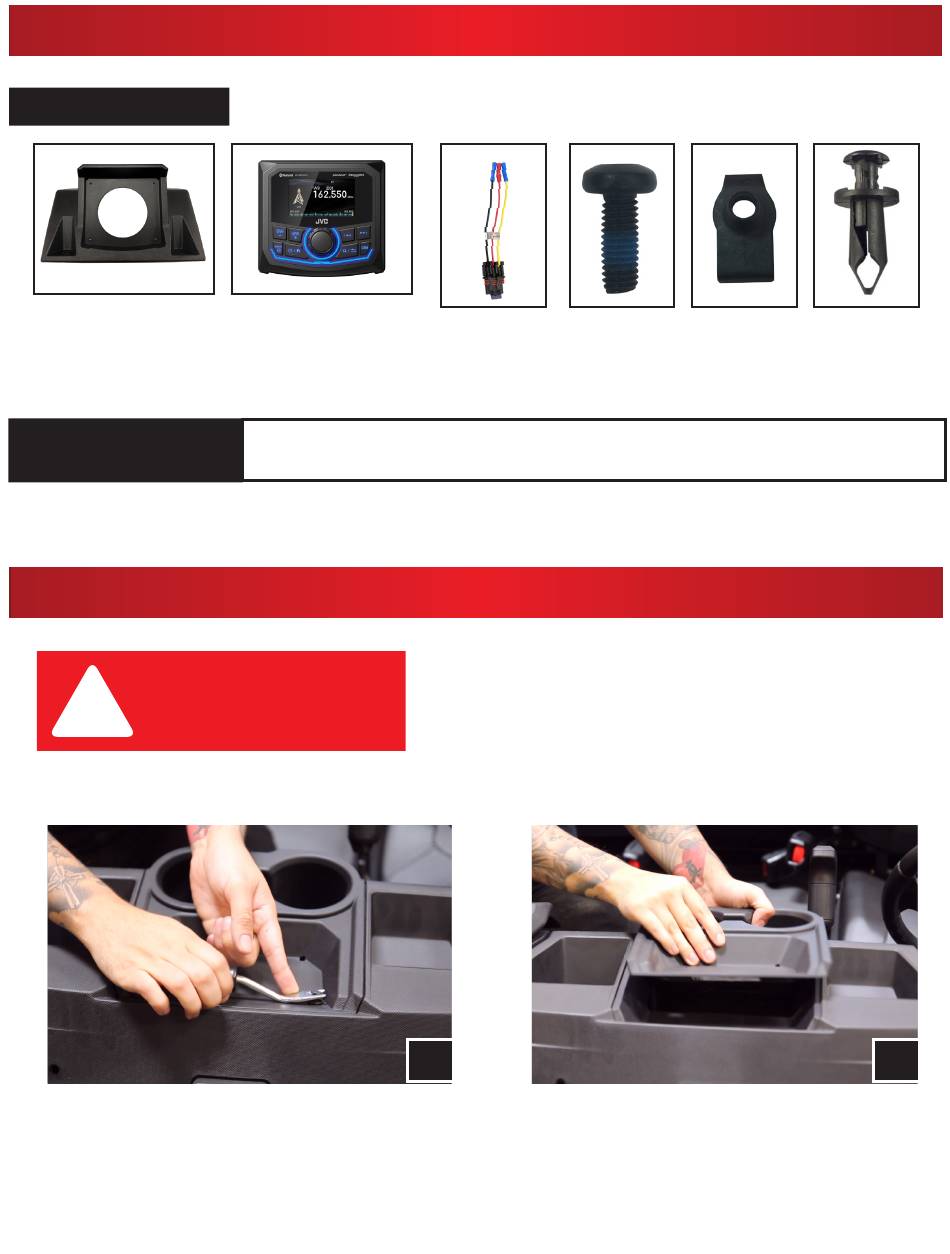

DASH KIT ASSEMBLY PARTS LIST
PARTS LIST IMAGES
1. DMR1 Dash Kit x1
INSTALLATION NOTES
DASH KIT ASSEMBLY and WIRING
!
Always disconnect the battery
before installing any electronics.
A. Use a panel tool to extract push pins on the top of the center
cup holders.
2. JVC MR1 Headunit and
Trim Ring
JVC MR1 Media Player, base mounting plate, trim ring and dash screws included with kit compatible head
units not included with RG4-DMR1. For instructions regarding the headunit, refer to the JVC manual.
.
4. B-H1752 Pulse 3. M6 x 1.0 Screws
Power/Ground x2 (T-30 torx)
Harness
A
B. With push pins extracted, lift to remove the cup holder.
4. U-Clips x2 5. Push Pins x2
B
7
