SSV Works RZ34-Q3A1 Manual

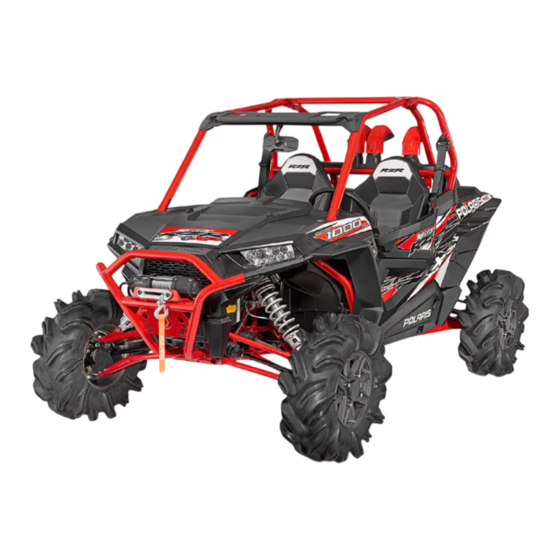

Ssv works 3 speaker audio kit phase 3 with jvc mr1 for rzr 3 abd rzr 4
Hide thumbs

Advertisement

Quick Links

Download this manual
SSV WORKS, 201 N. Rice Ave Unit A, Oxnard, CA 93030
www.SSVworks.com
|
Phone: 818-991-1778
RED
RZR3
FOLLOW THE COLOR CODE ON EACH STEP FOR YOUR VEHICLE'S SPECIFIC INSTRUCTIONS
3
pg
Panels and Dash
Disassembly
5
pg
Amp Tray
Installation
9
pg
JVC MR1
Installation
13
pg
Glovebox Subwoofer
Installation
16
pg
Kick Panel Speakers
Installation
|
Fax: 866-293-6751
2014-2018
RZ34-Q3A1
RZR 3 abd RZR 4
SSV Works 3 Speaker Audio Kit
Phase 3 with JVC MR1
BLUE
RZR4
2019+

Advertisement

loading
Need help?

Need help?

Do you have a question about the RZ34-Q3A1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SSV Works RZ34-Q3A1

Summary of Contents for SSV Works RZ34-Q3A1

  • Page 1 RZ34-Q3A1 RZR 3 abd RZR 4 SSV Works 3 Speaker Audio Kit SSV WORKS, 201 N. Rice Ave Unit A, Oxnard, CA 93030 Phase 3 with JVC MR1 www.SSVworks.com Phone: 818-991-1778 Fax: 866-293-6751 BLUE RZR4 RZR3 2019+ 2014-2018 FOLLOW THE COLOR CODE ON EACH STEP FOR YOUR VEHICLE’S SPECIFIC INSTRUCTIONS...
  • Page 2 WIRING DIAGRAM OF COMPLETE KIT Figure 1 Figure 1 is designed to show the installer a reference overview of the 3 speaker wiring diagram. Each installation section will have its own detailed wiring diagram. Description Part # Bluetooth Media Receiver w/ 2.7” color display B-MR1 JVC to SSV Harness Adapter, 3 ft.
  • Page 3 PANELS AND DASH DISASSEMBLY (All Models) A. Remove all seats by releasing the handle behind each seat, B. Disconect the negative battery cable from the battery. push forward slightly while lifting up. PANELS AND DASH DISASSEMBLY (RZR3) C. Remove hood by turning locking pins and lifting up. D.
  • Page 4 G. Remove the factory dash pocket by first extracting the 10mm bolt on the dash frame (G1). Then pull out the dash pocket with bracket attached (G2) - NOTE this bracket will no longer be used for any part of this installation. Save this screw as it will be use later during the amp plate installation. Extract (2) screws securing the sub dash (G3).
  • Page 5 All SSV Works enclosures are covered by a limited lifetime warranty against defects in instructions completely before material or workmanship. All SSV Works Electronics are covered by a limited 1 year warranty installation to avoid possible injury, or against defects in material or workmanship. All SSV Works Speakers are covered by a damage to the accessory or vehicle.
  • Page 6 Triangular 5. M6 x 1.0 Screws x 2 6. M6 Washers x 7 7. Thread Cutting Screw x 5 8. Fuse Holder with 40A Fuse x 1 (#3 Phillips) (T-30 torx) 9. Battery Terminal Cable x 1 10. MRB3 Power & Ground 11.
  • Page 7 AMP PLATE INSTALLATION (RZR3) Place the pre-installed amp plate with MRB3 Brain on the frame of the dash and line up the hole on the top of the amp plate to the factory hole where the pocket bracket was previously installed (1). Loosely screw in the factory 10mm screw in this hole location.
  • Page 8 All SSV Works enclosures are covered by a limited lifetime warranty against defects in material or workmanship. All SSV Works Electronics are covered by a limited 1 year warranty against defects in material or workmanship. All SSV Works Speakers are covered by a limited 1 year warranty against defects in material or workmanship.
  • Page 9 PARTS LIST IMAGES 1. RZ3 Dash Panel 2. Mounting Brackets 3. M3 Screw x6 4. Rocker Switch Blank (x4) DASH KIT ASSEMBLY (RZR3) A. Place the MR1 unit through the base plate and thread the provided B. Verify the correct orientation of the mounting brackets. M3 screws into the mounting brackets.

  • Page 10: Tools For Installation

    The installation of the dash kit panel is complete. Re-assemble the E. Center the trim ring on the MR1 and firmly press down until each dash. Refer to the JVC manual for further details. side and corners click into place. Once the MR1 is powered on, verify the following presets in the General Settings: Pre-out = Subwoofer...

  • Page 11: Installation Notes

    DASH KIT ASSEMBLY JVC MR1 Media Player, trim ring and dash screws included with kit compatible head units not included INSTALLATION NOTES with RZ4-DMR1. For instructions regarding the headunit, refer to the JVC manual. B. Remove the (2) push pins retaining the upper storage compartment. A.
  • Page 12 Once the MR1 is powered on, verify the following presets in the General Settings: Pre-out = Subwoofer Int. Amplifier = On JVC MR1 WIRING DIAGRAM Description Part # JVC Harness Adapter, JVC to SSV B-H2367 JVC MR1 Radio Harness Amp Power/Ground Harness B-H2605 4-Pin “Y”...
  • Page 13 NOTE Some RZR models come with the ground “GND” terminal not connected as shown. If you do not have a factory wiring going to this terminal, add a ground wire from the “GND” terminal to the frame before connecting the wires. We recommend removing the paint to bare metal, using a star washer, and repainting over C.
  • Page 14 5. Flat Mounting Bracket “A” 6. Mounting Bracket “B” 7. Left & Right Door Hinge 8. M6 x 8mm (T30 torx) Screw Brackets 9. Fuseholder with fuse, Heat Shrink, Ring terminal x1 GLOVEBOX SUBWOOFER ENCLOSURE ASSEMBLY (All Models) A. Using (4) 8mm screws and washers, attach Bracket “B” to the B.
  • Page 15 E. With the dash removed, extract the (2) 10mm bolts retaining the F. Lift the enclosure into place and line up the mounting screw holes. glovebox and remove the glovebox. G. Using the factory glove box mounting hardware, fasten the enclosure into place. Pull sub enclosure H.
  • Page 16 SUBWOOFER WIRING DIAGRAM (All Models) Description Part # Detail Description 800.5 Amplifier 32-Pin Universal Harness B-H2605 Connect Subwoofer Output from B-H2605 to B-H2702 2-Pin Audio, Sub Extension Harness B-H3074 Connect B-H3074 directly to the Subwoofer FRONT KICK PODS PARTS LIST (All Models) TOOLS NEEDED FOR INSTALLATION - T-40 Torx Driver - #2 Phillips Screwdriver...
  • Page 17 FRONT KICK PODS ASSEMBLY (All Models) A. Starting at driver side footwell, remove the factory T40 torx B. Place the driver kick pod into location so that both vehicle screw as shown. Save this screw for Step D. screw bosses line up with kick pod brackets. C.
  • Page 18 FRONT KICK PANELS WIRING DIAGRAM Description Part # Front Speaker Harness (48”) B-H1909 Detail Description Connect Front Output from B-H2605 to B-H1909 Connect Speaker Pods connectors to B-H2935 CONNECTING POWER & GROUND CABLE TO BATTERY Battery Terminal Cable Power Wire Break Break off tab...

  • Page 19: Amp Wiring Diagram

    Connect Rock & Ride rocker switch to “Ext. Switch” Install fuseholder between B-H1587 & battery terminal cable. Connect ground ring terminal to chassis ground. THIS CONCLUDES THE INSTALLATION PROCESS. REPLACE THE FACTORY PANELS AND SEATS. QUESTIONS? PLEASE CONTACT SSV WORKS AT 818-991-1778 OR EMAIL SUPPORT@SSVWORKS.COM...
  • Page 20 © 2023 SSV Works, Oxnard, CA 93030 RZ34-Q5A3 8-14-23...
