SSV Works RG4-Q3V1 Manual page 11

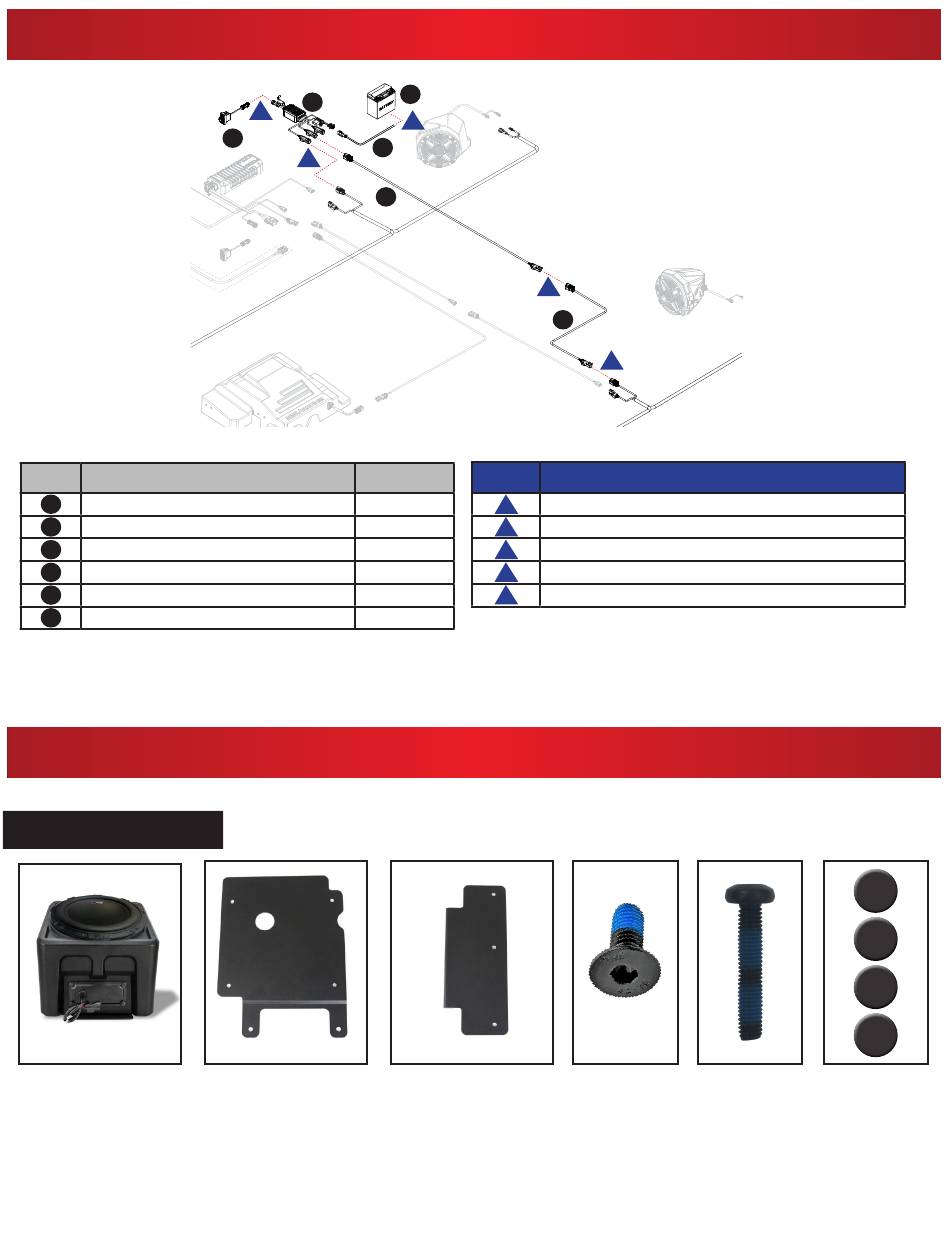

RGB LED CONTROLLER COMMAND CENTER WIRING DIAGRAM
Description
1
RGB LED Controller Rocker Switch for LIT-CC
2
LIT-CC RGB LED Controller Command Center
3
LIT-CC Power Harness
4
Battery
5
RGB Extension, 8 ft.
6
RGB Extension, 2 ft.
SUBWOOFER ENCLOSURE PARTS LIST
PARTS LIST IMAGES
1. RG4-US10 Enclosures
NOTE: To avoid subwoofer damage, do not face the subwoofer down or rest the enclosure on the subwoofer when
installing bracket to the bottom of the enclosure.
2
A
1
3
B
5
Part #
B-H2367
230-LIT-CC
B-H2933
B-H2934
2. Enclosure Bracket A
4
C
D
6
Detail
A Connect RGB LED Rocker Switch to LIT-CC
B
Connect Outputs to Front Speaker and Rear Extension Harnesses
C Connect LIT-CC Power Harness to Battery or ACC
D Connect RGB Extension B-H2933 to B-H2934 (for 4 door models)
E
Connect RGB Extension B-H2934 to RGB Rear Speaker Harness
2. Enclosure Bracket B 4. M6 Flathead 4mm
E
Description
5. M6 Allen Torx
Hex Screws x4 Screws x2
5. Foam Circles
x4
11
