4.6. Reset the Module

Reset is only used in case of emergency or abnormality. For example, the software fails to respond for
more than 5 seconds due to some serious problems.
Press the RESET button S1202 for more than 150 ms then release it to reset the module. Please note
that this operation may cause loss of information in the memory as the module will be initialized after the
resetting.

4.7. Power Consumption Test

The EVB can also be used to test the power consumption of the module after making the following
modifications.
J1402
R1407
R1423

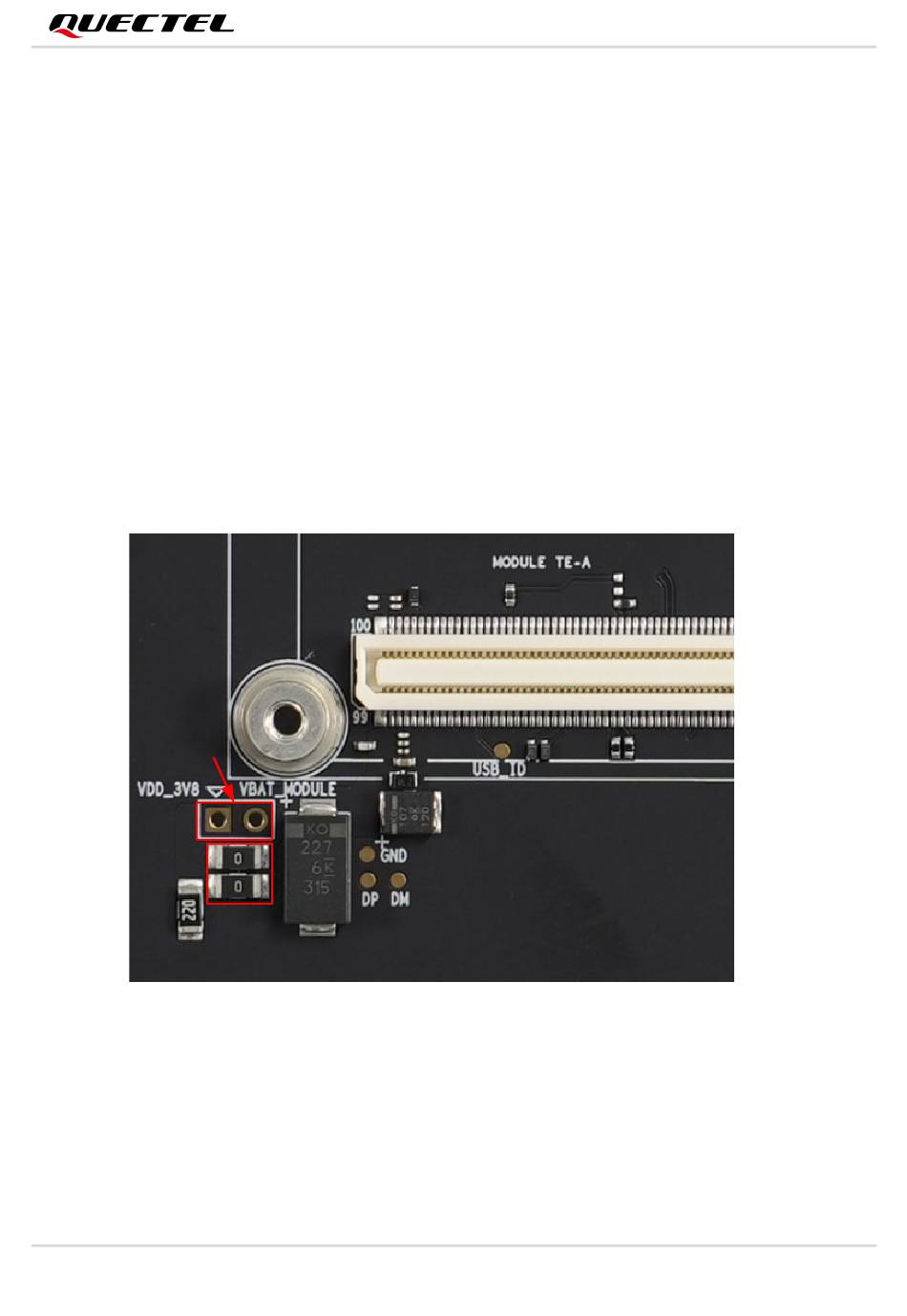

Figure 35: Modifications and Configurations for Power Consumption
1. Remove resistors R1407 and R1423.
2. Connect an external power supply to the J1402 PIN "VBAT_MODULE".
3. Turn on the module and then test the power consumption according to specific demand.
