The figure and table below illustrate the pin assignment and definition of (U)SIM card connector J0804.
J0801 is similar to J0804.

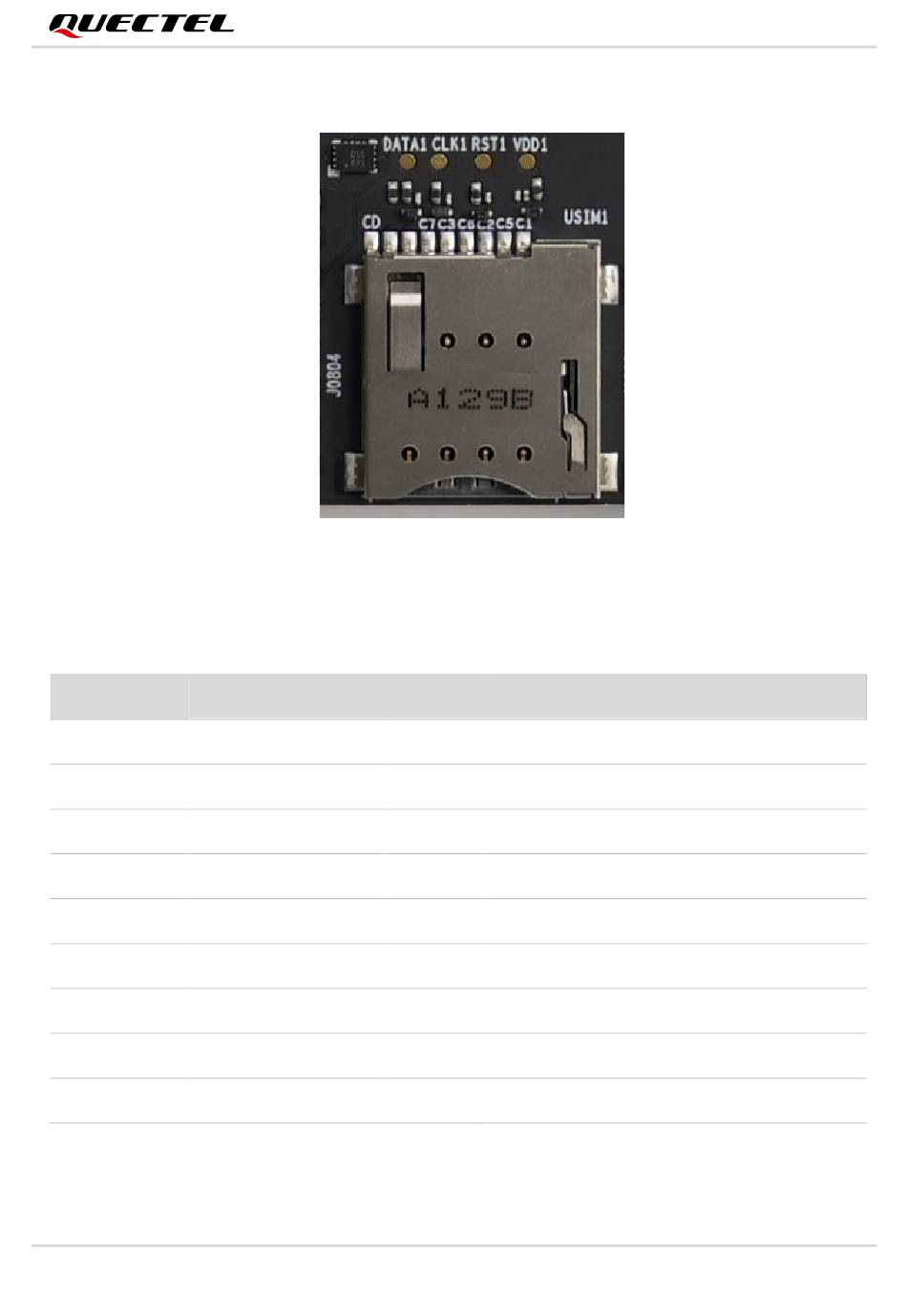

Figure 20: Pin Assignment of (U)SIM Card Connector J0804
Table 11: Pin Definition of J0801
Pin No.
Pin Name
C1
USIM_VDD
C2
USIM_RST
C3
USIM_CLK
C4
RESERVED
C5
GND
C6
VPP
C7
USIM_DATA
C8
RESERVED
CD
USIM_PRESENCE
5G-REDCAP_EVB_User_Guide
46
CD
C8
C4
C7
C3
C6
C2
C5
I/O
Description
PO
U(SIM) card power supply, provided by module
DO
U(SIM) card reset
DO
U(SIM) card clock
-
NC
-
Ground
-
NC
DIO
Data line, bi-directional
-
NC
DI
U(SIM) card insertion detection
C1
5G Module Series
27 /
