5G Module Series

2

Product Overview

2.1. Top and Bottom Views

The size of 5G-REDCAP EVB is 168 mm × 146 mm, and the top and bottom views are shown as below:

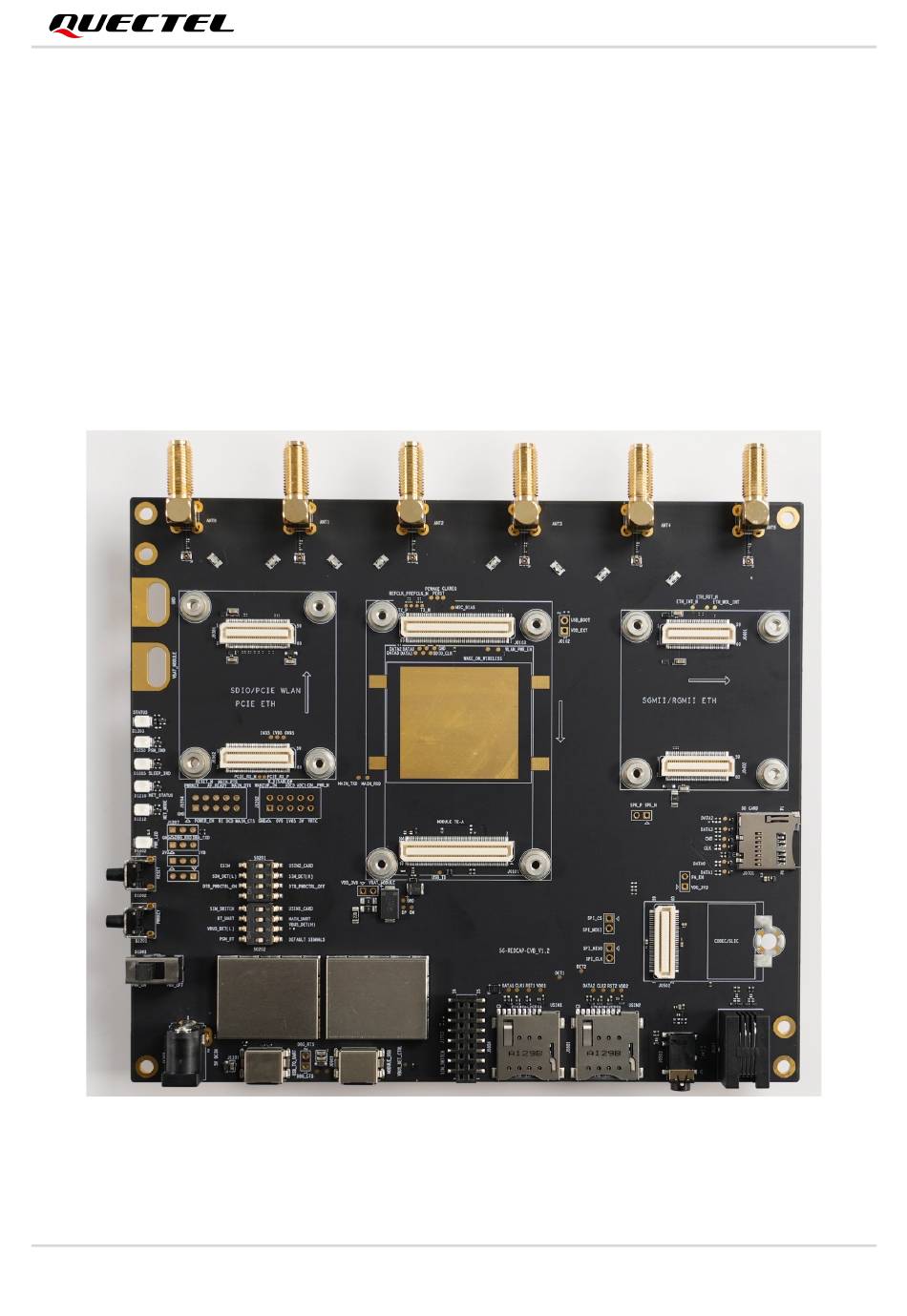

Figure 1: Top View

5G-REDCAP_EVB_User_Guide

10 /

46
