3.9. PHY TE-A Interfaces

The PHY TE-A interfaces are designed to accommodate the PHY. The PHY TE-A interfaces support
PCIe or SGMII/RGMII interface, and QEP8111 TE-A (SGMII interface) is chosen by default. The proper
TE-A is connected to the EVB via BTB connectors. The interface allows you to test the PHY function of
the module or to develop applications with PHY function easily.
Table 16: Description of PHY TE-A Interfaces
RefDes.
J0301
J0302
J0401
J0402

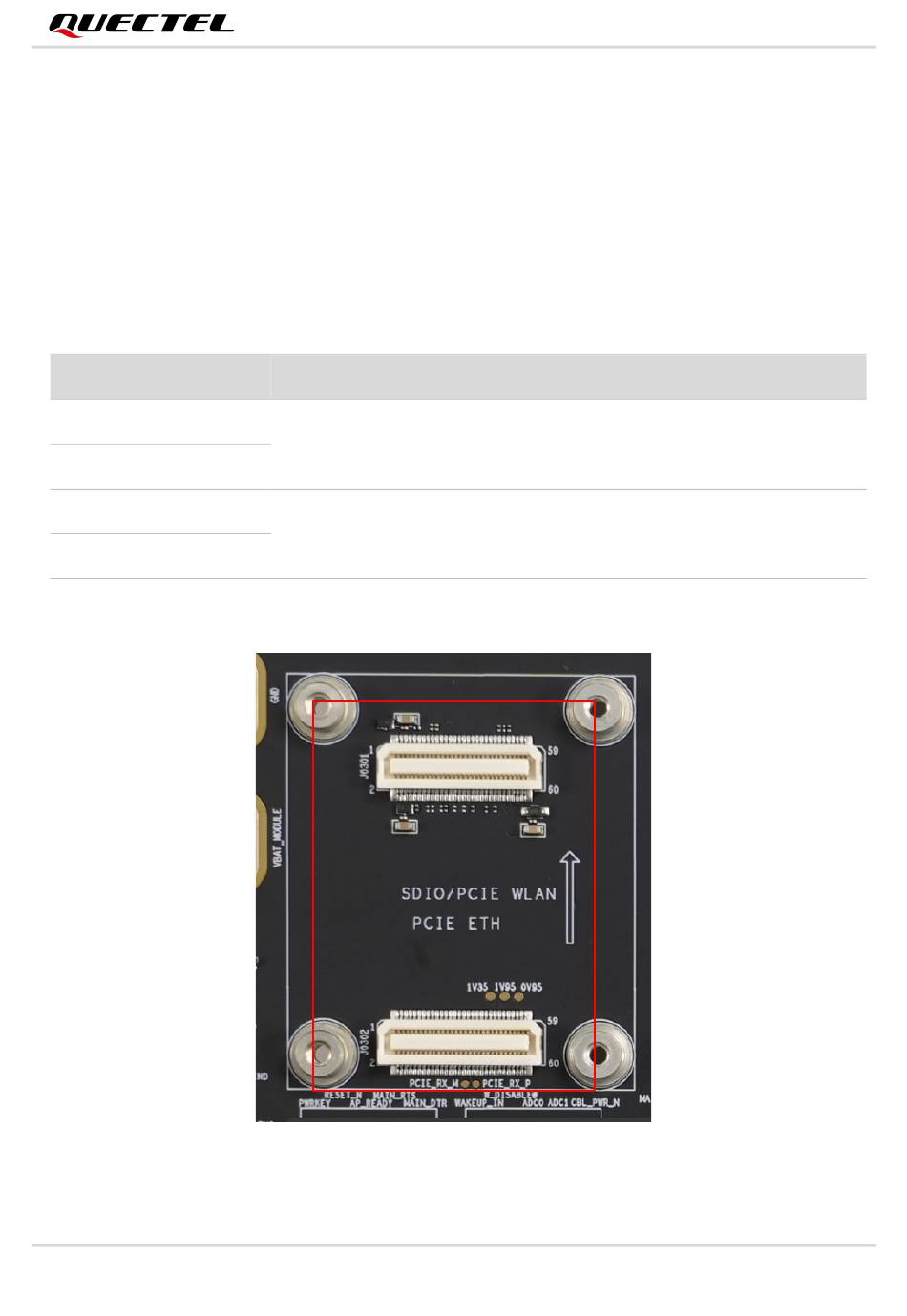

Figure 24: Connection Between PHY TE-A (PCIe Interface) and EVB
5G-REDCAP_EVB_User_Guide
46
Description
PHY TE-A connectors (PCIe interface)
PHY TE-A connectors (SGMII/RGMII interface)
J0301
PHY TE-A
PCIe Interface
J0302
5G Module Series
