3.4.1.2. Earphone Application

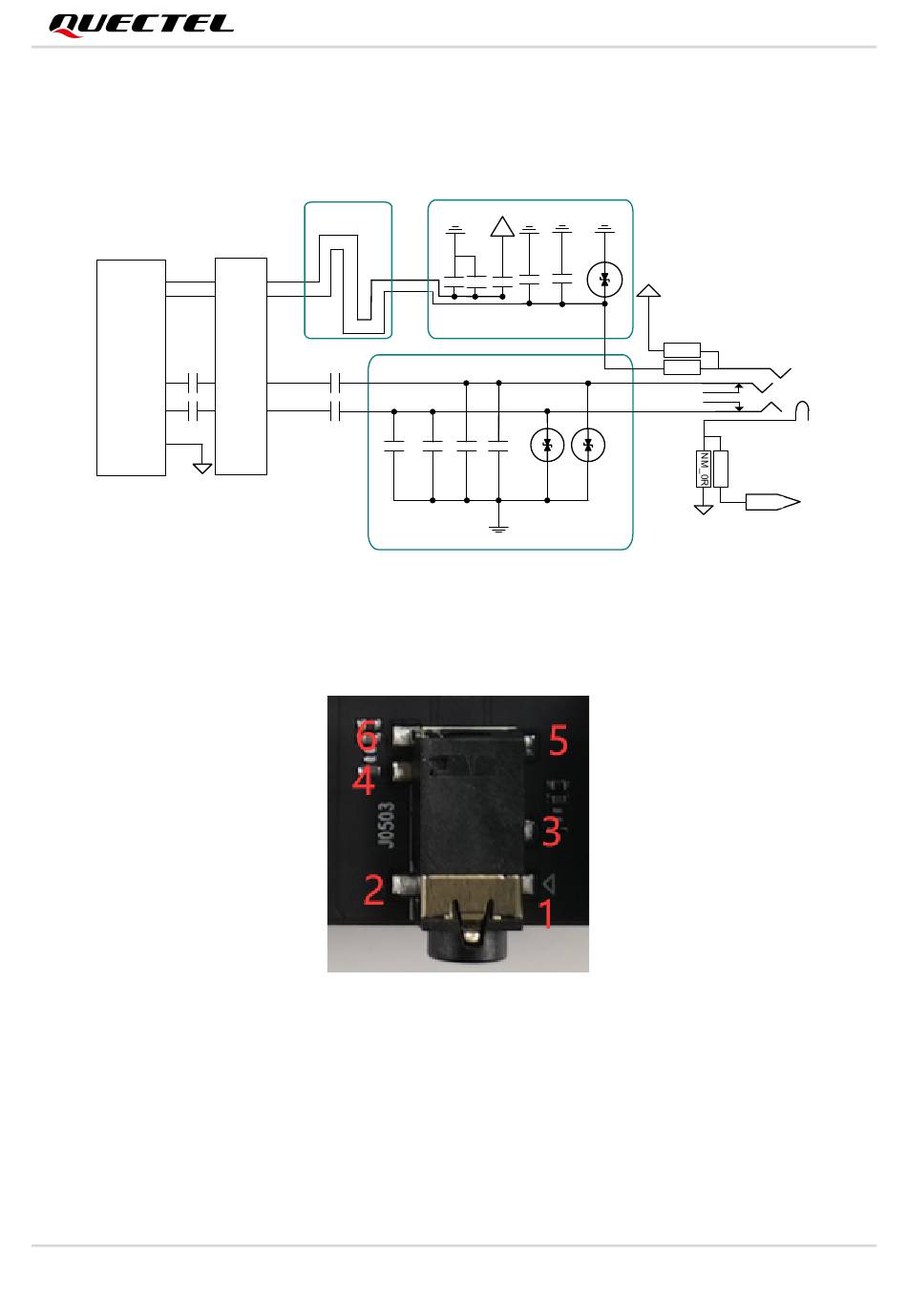

Audio interface is designed for earphone. A reference circuit design is shown by the following figure.
Codec
22uF
22uF
AGND
BTB CON
Figure 14: Reference Circuit Design for Earphone Application
The figure and table below illustrates the pin assignment and pin definition of earphone connector.
