Transistor Output Units

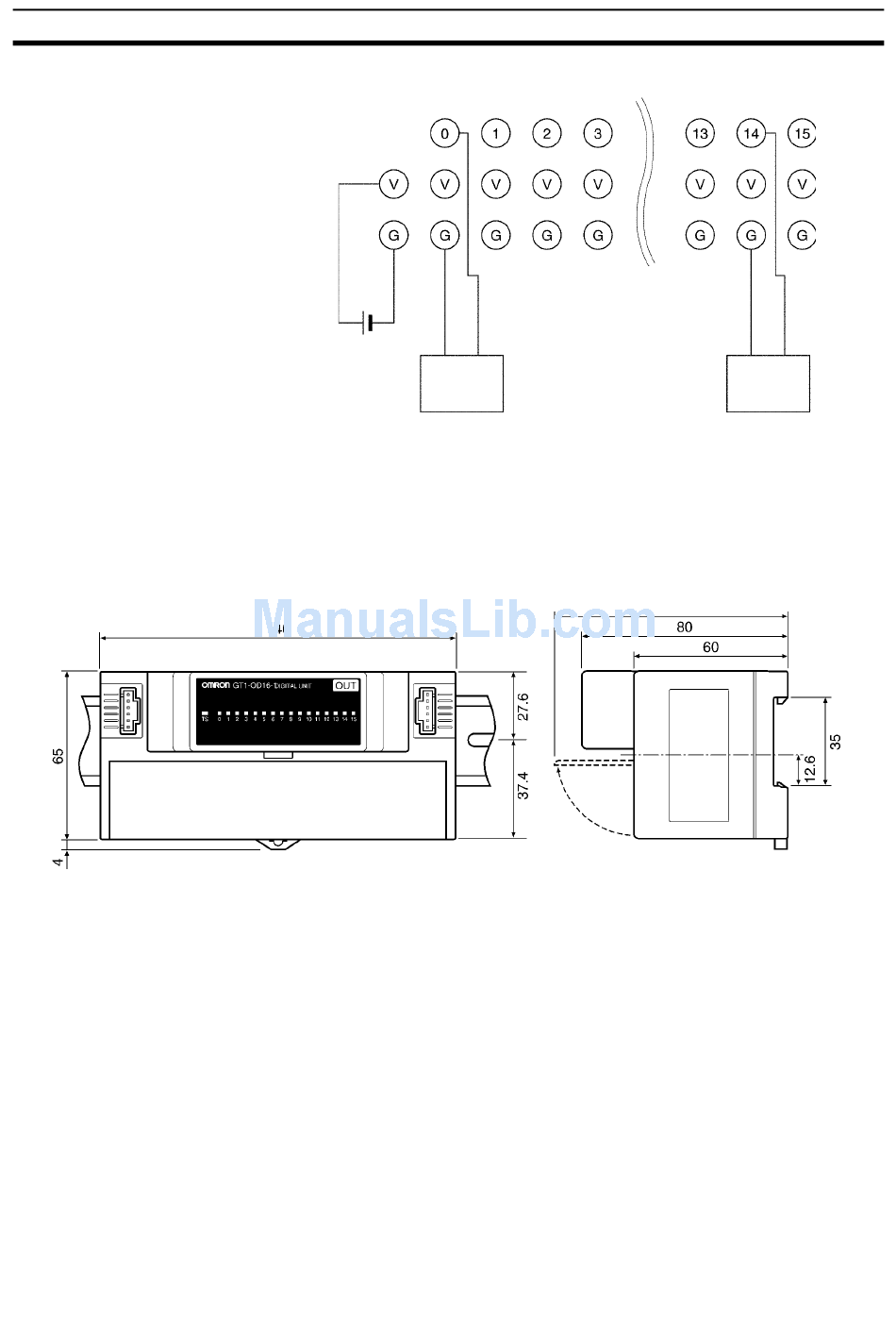

Wiring
Dimensions
70
24 VDC
I/O power
supply
Note V terminals and G terminals are internally connected. When the I/O power is
being supplied, the power can be supplied to the output devices from the V
terminals and G terminals. Current supplied in this way, however, must be less
than 4 A.
Note The vertical center of the Unit is 4.9 mm lower than the center of the DIN
track. The Unit therefore extends downward 41.4 mm (including the mounting
hook) from the DIN track center.
Solenoids,
valves, etc.
Section 4-4
Solenoids,
valves, etc.
Approx. 89
(Unit: mm)
