Analog Input Units
116
The input range will be set and the window for step 6 will appear again.
8. To change other input ranges, repeat steps 6 and 7.
9. When all the required input ranges have been changed, click OK in the Edit
Unit Parameters window of the Analog Input Unit. The Edit Device Param-
eters window for the Communications Unit will appear again.
10. To make the settings for other I/O Units, repeat steps 5 to 9.

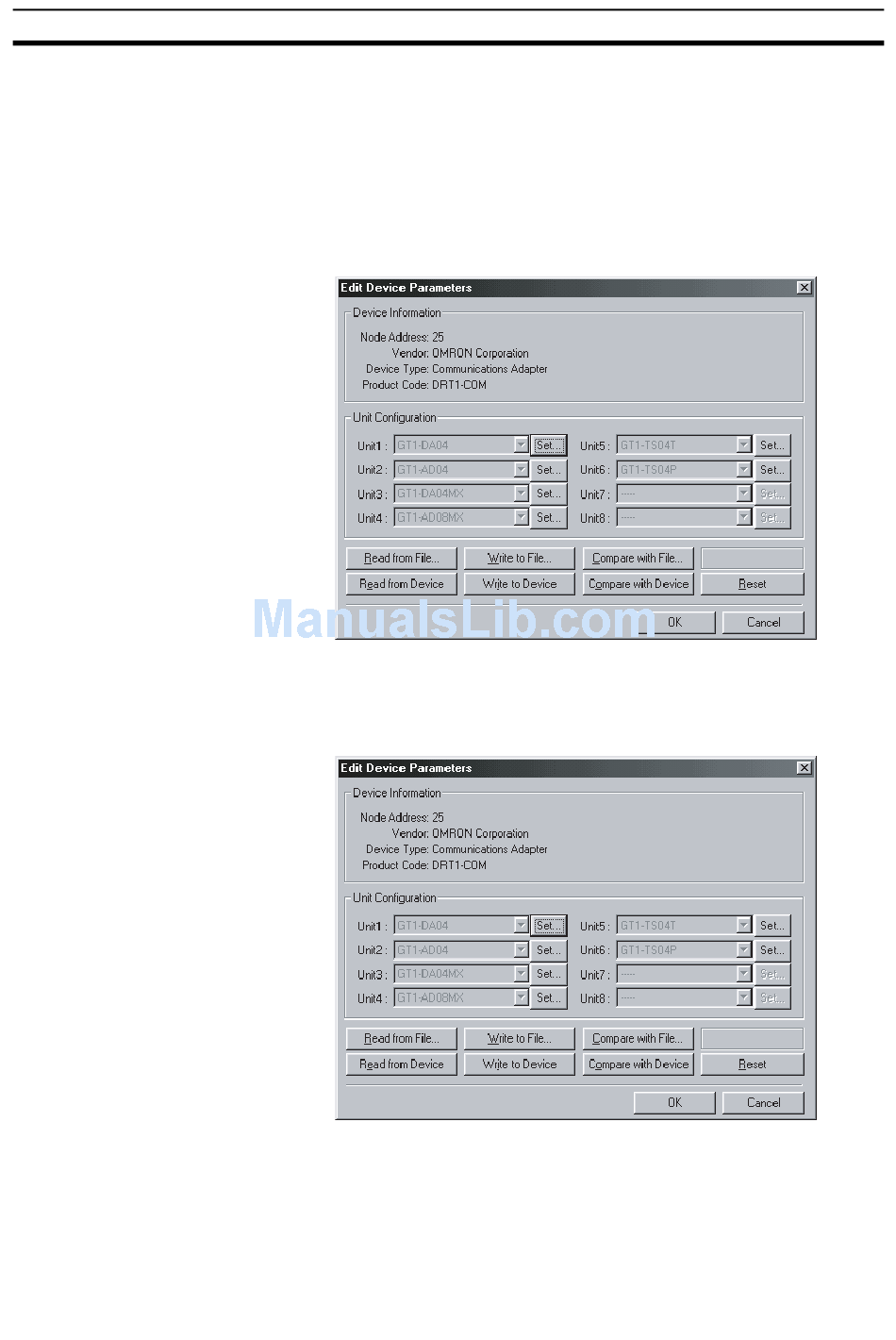

11. From the Edit Device Parameters window of the Communications Unit,
click Write to Device.
The specified input range will be set for the Analog Input Unit. At this stage,
however, the setting is not enabled.
12. From the Edit Device Parameters window of the Communications Unit,
click Reset.
The Communications Unit and all the I/O Units connected to the Commu-
nications Unit will be reset, and the specified parameters (for example, for
input range) will be enabled.
Note Even if Reset is not clicked and the power supply for the Communi-
cations Unit is turned OFF and ON again, the settings will be en-
abled.
