Transistor Input Units
4-3-3

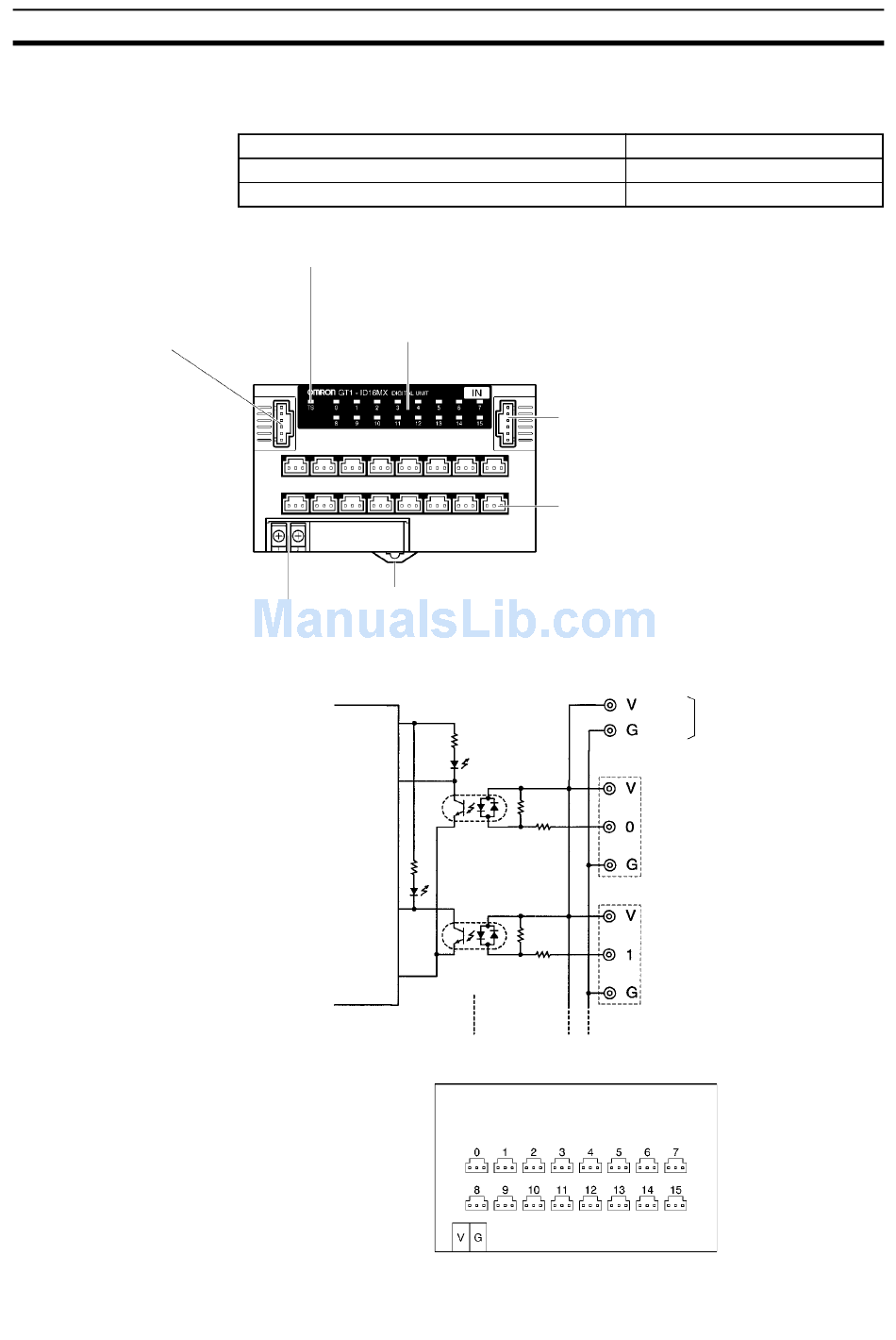

GT1-ID16MX Transistor Input Unit with Connector (NPN)

Input Specifications
Components
I/O Unit Interface
Communications Connector 1
(on the Communications Unit side)
Internal Circuits
Terminal Arrangement
48
Number of input points
Number of points that can be ON simultaneously
TS Indicator (Refer to page 200.)
Input Indicators
Display the status of the inputs.
Lit when an input is ON.
DIN Track Mounting Hook
Terminal Block
Internal
circuits
Item
I/O Unit Interface
Communications Connector 2
(on the terminator side)
Digital Input Connectors
(made by MOLEX)
Connect to input devices, such as switches
and sensors.
Photo-
coupler
Photo-
coupler
Input
Input
Section 4-3
Specifications
16 points
16 points max.
24 VDC
I/O power supply
(terminal block)
(Connector)
(Connector)
