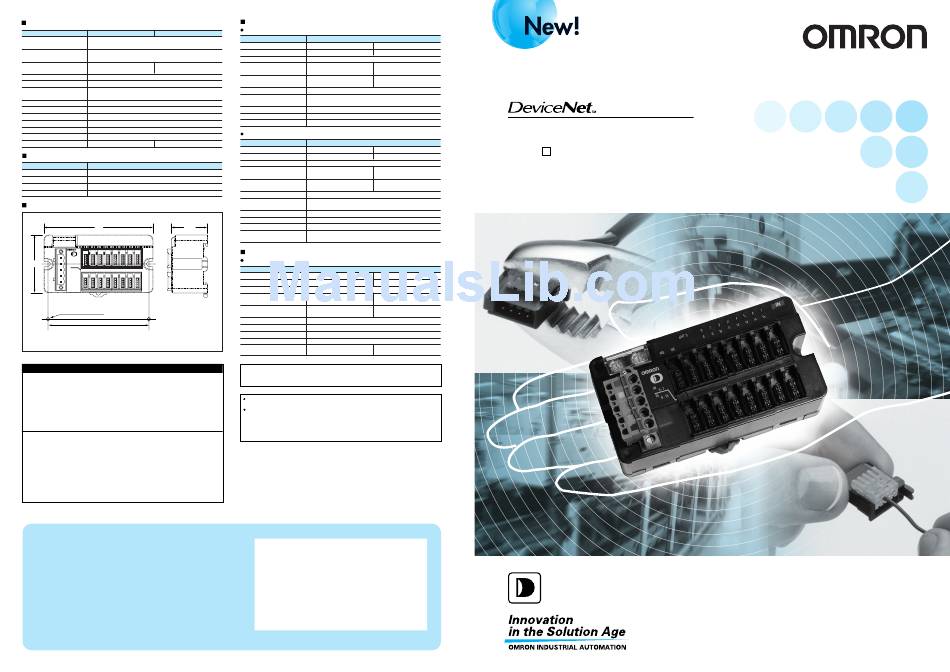

Omron DRT2-D16S Specifications

General Specifications
Item DRT2-ID16S (-1) DRT2-MD16S (-1)
Communications power
11 to 25 VDC (Supplied from communications connector.)
supply voltage
Supplied from communications connector;
I/O power supply voltage
output supplied from external source.
Communications power
230 mA max. 135 mA max.
supply current consumption
Dielectric strength 500 VAC (between isolated circuits)
Noise immunity 2 kV on power supply line (conforming to IEC61000-4-4)
10 to 56 Hz, 0.7-mm double amplitude,
Vibration resistance
2
56 to 150 Hz, acceleration: 50 m/s
2
Shock resistance 150 m/s
M4 screw mounting or DIN Track mounting
Mounting methods
M4 screws: 0.6 to 0.98 Nm
Tightening torque
Ambient operating temperature –10 to 55°C
35% to 85% (with no condensation)
Ambient operating humidity
–20 to 65°C.
Storage temperature
90 g max 95 g max.
Weight
Standard Models
Model number Specifications
DRT2-ID16S 16 inputs, NPN
DRT2-ID16S-1 16 inputs, PNP
DRT2-MD16S 8 inputs/8 outputs, NPN
DRT2-MD16S-1 8 inputs/8 outputs, PNP
Dimensions (mm)
95 33.3
U,ERR1 0 1 2 3 4 5 6 7 IN
U,ERR2 8 9 10 11 12 13 14 15 IN
MS NS
MODE ADDRESS
50
INPUT
0TO 7
INPUT
8TO15
Two 4.2 dia. or M4 holes
88±0.2
Mounting hole dimensions
Warranty and Limitations of Liability
WARRANTY
OMRON's exclusive warranty is that the products are free from defects in materials and
workmanship for a period of one year (or other period if specified) from date of sale by
OMRON.
OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED,
REGARDING NON-INFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR PARTICULAR
PURPOSE OF THE PRODUCTS. ANY BUYER OR USER ACKNOWLEDGES THAT THE BUYER
OR USER ALONE HAS DETERMINED THAT THE PRODUCTS WILL SUITABLY MEET THE
REQUIREMENTS OF THEIR INTENDED USE. OMRON DISCLAIMS ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED.
LIMITATIONS OF LIABILITY
OMRON SHALL NOT BE RESPONSIBLE FOR SPECIAL, INDIRECT, OR CONSEQUENTIAL
DAMAGES, LOSS OF PROFITS, OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH
THE PRODUCTS, WHETHER SUCH CLAIM IS BASED ON CONTRACT, WARRANTY,
NEGLIGENCE, OR STRICT LIABILITY.
In no event shall the responsibility of OMRON for any act exceed the individual price of the
product on which liability is asserted.
IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER
CLAIMS REGARDING THE PRODUCTS UNLESS OMRON'S ANALYSIS CONFIRMS THAT THE
PRODUCTS WERE PROPERLY HANDLED, STORED, INSTALLED, AND MAINTAINED AND
NOT SUBJECT TO CONTAMINATION, ABUSE, MISUSE, OR INAPPROPRIATE
MODIFICATION OR REPAIR.
Note: Do not use this document to operate the Unit.
OMRON Corporation Regional Headquarters
FA Systems Division H.Q.
OMRON EUROPE B.V.
66 Matsumoto
Wegalaan 67-69, NL-2132 JD Hoofddorp
Mishima-city, Shizuoka 411-8511 The Netherlands
Japan
Tel: (31)2356-81-300/Fax: (31)2356-81-388
Tel: (81)55-977-9181
OMRON ELECTRONICS LLC
Fax: (81)55-977-9045
1 East Commerce Drive, Schaumburg, IL 60173
U.S.A.
Tel: (1)847-843-7900/Fax: (1)847-843-8568
OMRON ASIA PACIFIC PTE. LTD.
83 Clemenceau Avenue,
#11-01, UE Square,
Singapore 239920
Tel: (65)6835-3011/Fax: (65)6835-2711
Input Specifications
16 Inputs
Item
Specifications
Model number DRT2-ID16S DRT2-ID16S-1
Internal I/O common processing NPN PNP
Number of I/O points 16 inputs
15 VDC min. (between each 15 VDC min. (between each
ON voltage
input terminal and V) input terminal and G)
5 VDC max. (between each
5 VDC max. (between each
OFF voltage
input terminal and V) input terminal and G)
OFF current 1.0 mA max.
11.0 mA max. per point at 24 VDC
Input current
3.0 mA min. per point at 11 VDC
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 16 inputs/common
8 Inputs/8 Outputs
Item
Specifications
Model number DRT2-MD16S DRT2-MD16S-1
Internal I/O common processing NPN PNP
Number of I/O points 8 inputs (0 to 7)
9 VDC min. (between each input 9 VDC min. (between each input
ON voltage
terminal and V) 1.5 ms max. terminal and G)
5 VDC min. (between each input
5 VDC min. (between each input
OFF voltage
terminal and V) terminal and G)
OFF current 1.0 mA max.
11 mA max. per point at 24 VDC
Input current
3.0 mA min. per point at 11 VDC
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 8 points per common
Sensor short-circuit
100 mA min. (per point)
detection current
Output Specifications
8 Inputs/8 Outputs
Item Specifications
Model number DRT2-MD16S DRT2-MD16S-1
Internal I/O common processing NPN PNP
Number of I/O points 8 outputs (8 to 15)
0.3 A per point, 2.4 A 0.3 A per point, 1.6 A
Rated output
per common per common
Residual voltage and 2 V max. at 0.3 ADC, between each 2 V max. at 0.3 ADC, between each
current output terminal and G output terminal and V
Leakage current 0.1 mA max.
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 8 points per common
Load short-circuit detection
2.4 A min. per common 1.6 A min. per common
current
