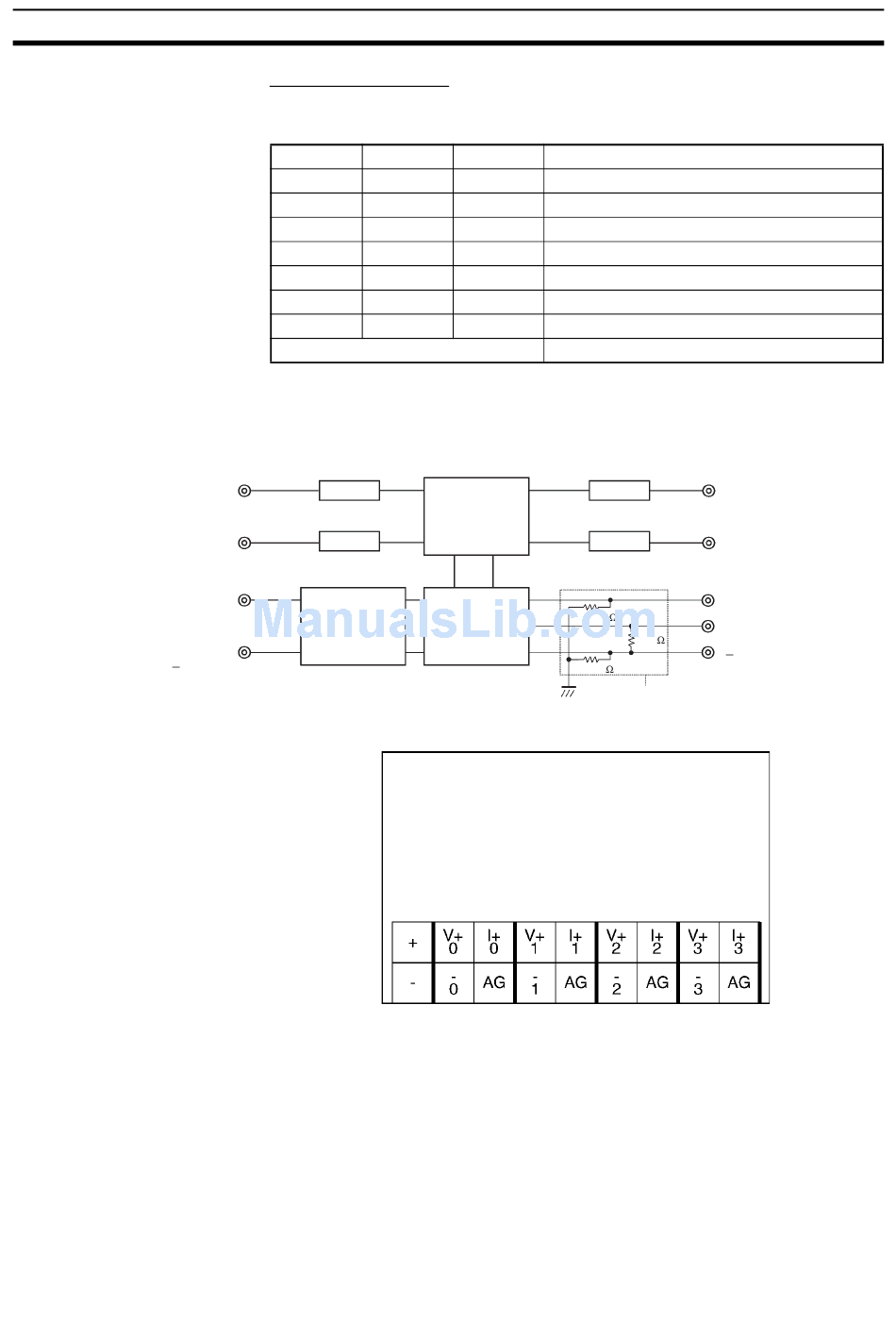

Analog Input Units
Internal Circuits
I/O Unit
interface
24 VDC
Internal +
power
supply
24 VDC
Terminal Arrangement
100
Input Range Settings
As shown in the following table, the DIP switch input range settings are for two
inputs each.
Pin 1 Pin 2
Pin 4 Pin 5
OFF OFF
ON OFF
OFF ON
ON ON
OFF OFF
ON OFF
Other than the above
Note If input range setting is performed using the Configurator (version 1.11 or
later), it is possible to make the setting for each point.
Photocoupler
Insulating DC
to DC
converter
Pin 3 Input range for inputs 0 and 1
Pin 6 Input range for inputs 2 and 3
OFF 0 to 5 V
OFF 1 to 5 V
OFF 0 to 10 V
OFF –10 to 10 V
ON 4 to 20 mA
ON 0 to 20 mA
Cannot be set
Photocoupler
I/O Unit
interface
Input circuit
510 k
Internal
circuits
510 k
Section 5-1
I/O Unit
interface
V+
I+
250
4 circuits
