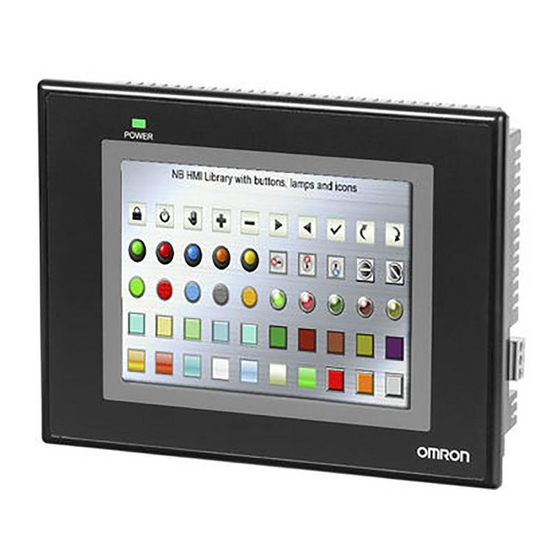

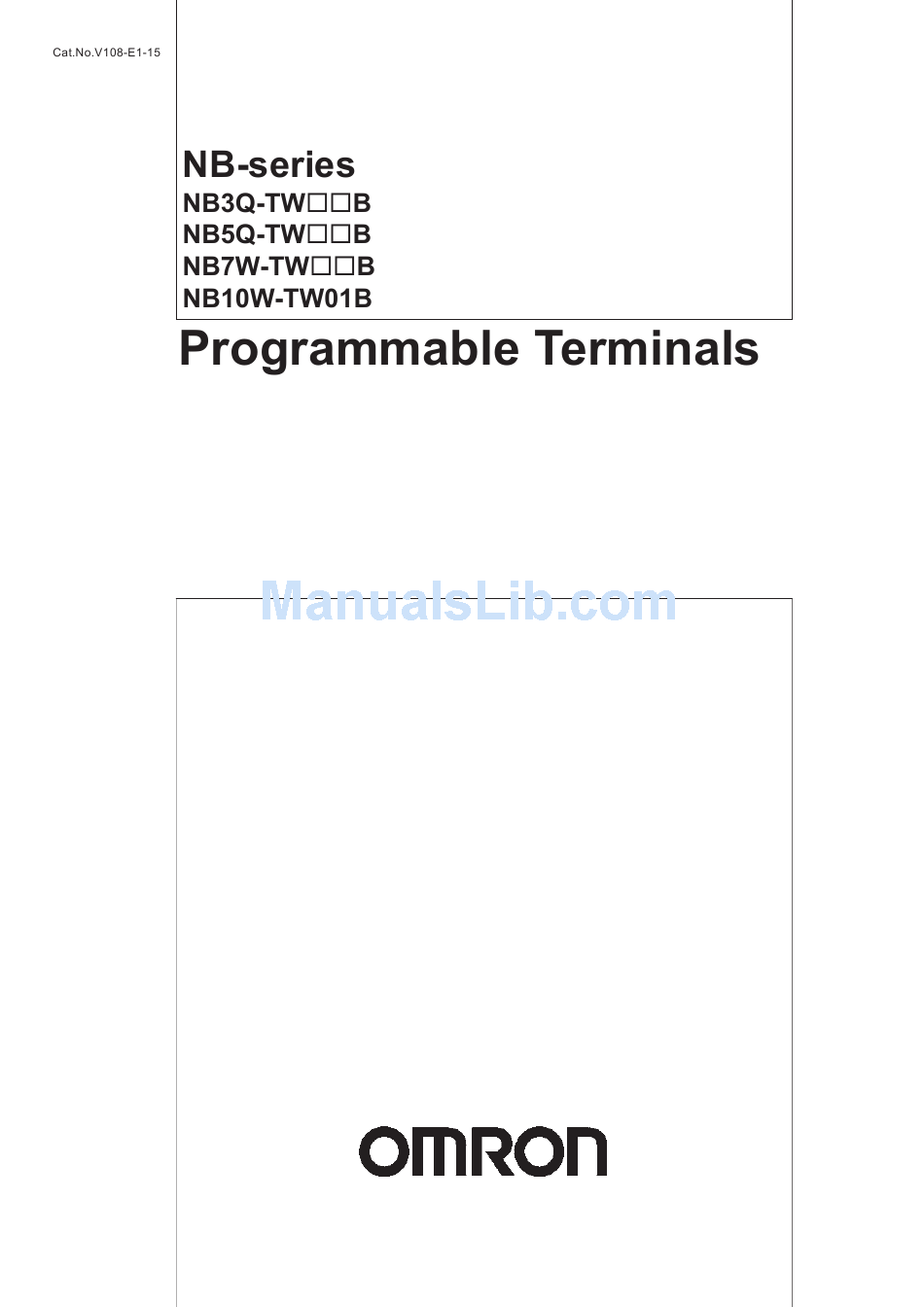

  • Page 1 HOST CONNECTION MANUAL...
  • Page 2 No patent liability is assumed with respect to the use of the information contained herein. Moreover, because OMRON is constantly striving to improve its high-quality products, the information contained in this manual is subject to change without notice. Every precaution has been taken in the preparation of this manual. Neverthe- less, OMRON assumes no responsibility for errors or omissions.
  • Page 3 NB-series NB3Q-TWB NB5Q-TWB NB7W-TWB NB10W-TW01B Programmable Terminals Host Connection Manual Revised July 2017...

  • Page 5: Introduction

    OMRON representative. • Make sure that the ratings and performance characteristics of the product are sufficient for the systems, machines, and equipment, and be sure to provide the systems, machines, and equipment with double safety mechanisms.

  • Page 6: Nb-Series Manuals

    NB-series Manuals NB-series Manuals NB-series manuals are organized in the sections listed in the following tables. Refer to the appropriate section in the manuals as required. Programmable Terminals Host Connection Manual (Cat. No. V108) (This Manual) Section Contents Section 1 List for All PLCs This section lists all PLCs supported by NB Units.
  • Page 7 NB-series Manuals Programmable Terminals Setup Manual (Cat. No. V107) Section Contents Section 1 Part Names and Functions This section describes the names and functions of the various parts of an NB Unit. Section 2 Installing the NB Unit and This section describes the methods used to install the NB Unit and Connecting Peripheral Devices connect peripheral devices.

  • Page 8: Manual Structure

    Manual Structure Manual Structure Page Structure and Icons The following page structure and icons are used in this manual. Level 1 heading 2 Installing the NB Unit and Connecting Peripheral Devices Level 2 heading Level 3 heading Level 3 heading 2-1-2 Installation onto the Operation Panel Install the NB Unit by embedding it into the operation panel.

  • Page 9: Terminology

    The following terminology is used in this manual. Terms Descriptions NB Unit Indicates the main Unit of the products in the OMRON NB Series of Programmable Terminal. NB Series Indicates products in the OMRON NB Series of Programmable Terminal. In this manual, unless otherwise specified, NB Series is taken as the subject concerned.
  • Page 10 Terminology NB-series Programmable Terminals Host Connection Manual (V108)

  • Page 11: Table Of Contents

    CONTENTS CONTENTS Introduction....................... 1 NB-series Manuals....................2 Manual Structure ...................... 4 Terminology ......................5 Terms and Conditions Agreement ................ 11 Safety Precautions ....................13 Precautions for Safe Use ..................16 Precautions for Correct Use .................. 18 Conformance to EC Directives ................19 Related Manuals .....................
  • Page 12 CONTENTS Sec. 3 Connecting to Mitsubishi PLCs..........3-1 Serial Port and Ethernet......................3-2 3-1-1 Serial Port ........................... 3-2 3-1-2 Ethernet............................3-3 Communication Setting and Cable Connection ..............3-5 3-2-1 Serial Port ........................... 3-5 3-2-2 Ethernet............................3-6 Communication Setting ......................3-7 3-3-1 When Using Mitsubishi FX1S, Mitsubishi FX1N/2N/3G and Mitsubishi FX3U Communication Protocols .............................
  • Page 13 CONTENTS Sec. 6 Connecting to Delta PLCs............. 6-1 Serial Port Communication ....................6-2 Communication Parameters and Cable Fabrication ............6-3 Communication Parameter Setting..................6-4 Supported Registers ....................... 6-6 Cable Fabrication ........................6-7 Sec. 7 Connecting to LSIS PLCs............7-1 Serial Port Communication ....................7-2 Communication Parameters and Cable Fabrication ............
  • Page 14 When Using Keyence KV-5000 EtherNetSlave Communication Protocol ........ 11-5 11-4 Supported Registers ......................11-7 11-5 Cable Connection ........................11-8 Sec. 12 Connecting to OMRON Safety Controller ......12-1 12-1 Serial Port..........................12-2 12-2 Communication Parameters and Cable Fabrication ............12-3 12-3 Communication Parameter Setting..................

  • Page 15: Terms And Conditions Agreement

    Omron’s exclusive warranty is that the Products will be free from defects in materials and workman- ship for a period of twelve months from the date of sale by Omron (or such other period expressed in writing by Omron). Omron disclaims all other warranties, express or implied.
  • Page 16 Disclaimers Performance Data Data presented in Omron Company websites, catalogs and other materials is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the result of Omron’s test conditions, and the user must correlate it to actual application requirements. Actual performance is subject to the Omron’s Warranty and Limitations of Liability.

  • Page 17: Safety Precautions

    Safety Precautions Safety Precautions Notation Used for Safety Information The following notation is used in this manual to provide precautions required to ensure safe usage of the product. The safety precautions that are provided are extremely important to safety. Always read and heed the information provided in all safety precautions.
  • Page 18 Safety Precautions WARNING Do not attempt to take the product apart and do not touch the product inside while the power is being supplied. Otherwise it may result in electric shock. Always ensure that the personnel in charge confirm that installation, inspection, and maintenance were properly performed for the NB Unit.
  • Page 19 Safety Precautions Precaution Caution Wiring TIn the case of the NB Series, when grounding the positive terminal of power supply of 24 V to the NB, do not ground functional grounding terminal at NB side. Some functions of a PC connected to the NB may cause a short circuit and the NB Unit may cause damage. •...

  • Page 20: Precautions For Safe Use

    Precautions for Safe Use Precautions for Safe Use • When unpacking the NB Units and the peripheral devices, check carefully for any external scratches or other damages. Also, shake the Units gently and check for any abnormal sound. • The NB Unit must be installed in a control panel. •...
  • Page 21 Precautions for Safe Use • When changing the password with the screen, do not reset or turn OFF the power supply until writing is finished. Failure to save the password may cause the screen to fail to function. • When using an equipment monitor, confirm the safety of the system before carrying out the following operations: •...

  • Page 22: Precautions For Correct Use

    Precautions for Correct Use Precautions for Correct Use • Do not install the unit in any of the following locations: Locations subject to severe changes in temperature Locations subject to temperatures or humidity outside the range specified in the specifications Locations subject to condensation as the result of high humidity Locations subject to corrosive or flammable gases Locations subject to strong shock or vibration...

  • Page 23: Conformance To Ec Directives

    OMRON products are electronic devices that are incorporated in machines and manufacturing installations. OMRON PTs conform to the related EMC Directives (see note) so that the devices and machines into which they are built can more easily conform to EMC Directives. The actual products have been through inspections and are completely in accordance with EMC directives.

  • Page 24: Related Manuals

    Related Manuals Related Manuals The related manuals are as follows: Devices and Software Manual Name Manual No. NB series NB Series NB-Designer Operation Manual V106 NB Series Setup Manual V107 NB Series Host Connection Manual (This manual) V108 NB Series Startup Guide V109 SYSMAC CP Series CP1L CPU Unit Operation Manual W462...
  • Page 25 Related Manuals Devices and Software Manual Name Manual No. Safety Controller G9SP Series Safety Controller OPERATION MANUAL Z922 External Tool  W446 CX-Programmer Ver.9. Operation Manual Sysmac Studio Version 1 Operation Manual W504 NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 26 Related Manuals NB-series Programmable Terminals Host Connection Manual (V108)

  • Page 27: List For All Plcs Supported By Nb Series

    List for All PLCs Supported by NB Series This section lists all PLCs supported by NB Series. 1-1 Lists for Supported PLC ........1-2 1-2 Definition and Description of Serial Port COM .

  • Page 28: Lists For Supported Plc

    1 List for All PLCs Supported by NB Series Lists for Supported PLC Names Displayed in NB-Designer PLC Models PLC Manufacturers AB CompactLogix/ControlLogix CompactLogix 1769-L20 Rockwell Automation, Series(DF1) Inc. CompactLogix 1769-L30 CompactLogix 1769-L31 CompactLogix 1769-L32E CompactLogix 1769-L35E ControlLogix 1756-L61 ControlLogix 1756-L63 AB SLC500/MicroLogix Series(DF1) MicroLogix 1000 MicroLogix 1200...
  • Page 29 1 List for All PLCs Supported by NB Series Names Displayed in NB-Designer PLC Models PLC Manufacturers LS Master-K Cnet K120s LSIS K200s LS Master-K CPU Direct K120s K200s LS Master-K Modbus RTU K120s K200s LS XGT CPU Direct LS XGT Cnet XBC-DN64H XBC-DR32H Mitsubishi FX Series Ethernet (TCP...
  • Page 30 1 List for All PLCs Supported by NB Series Names Displayed in NB-Designer PLC Models PLC Manufacturers Mitsubishi QnA 3Ebin Ethernet Q03UDE Mitsubishi (TCP Slave) Q04UDEH Q06UDEH Q10UDEH Q13UDEH Q20UDEH Q26UDEH Q50UDEH Q100UDEH Q03UDV Q04UDV Q06UDV Q13UDV Q26UDV L02CPU L02CPU-P L06CPU L06CPU-P L26CPU...
  • Page 31 CP1H/L/E Omron NX1 Series Host Link NX1P2- Omron CJ/CS/NJ Series Ethernet (UDP CS1W-ETN21/EIP21 Slave) CJ1W-ETN21/EIP21 CJ2H--EIP CJ2M-CPU3 NJ01 Omron NX1 Series Ethernet (UDP Slave) NX1P2- Omron CP Series Ethernet (UDP Slave) CP1L-EM CP1L-EL CP1W-CIF41 CP1H CP1L OMRON G9SP G9SP-N10S G9SP-N10D...
  • Page 32 1 List for All PLCs Supported by NB Series Names Displayed in NB-Designer PLC Models PLC Manufacturers Siemens S7-200 CPU212/214/215/216 Siemens CPU221/222/224/226 CPU224 XP CN CPU226 XP CN SIEMENS S7-200 (Smart) Ethernet CPU CR40 (TCP Slave) CPU SR20 CP 243-1communication module CP 243-1 IT communication module SIEMENS S7-300/400 CPU312IFM/CPU313/CPU313C...

  • Page 33: Definition And Description Of Serial Port Com

    1 List for All PLCs Supported by NB Series Definition and Description of Serial Port COM  Serial Port COM1 • NB5Q/NB7W/NB10W-TWB Serial port COM1 is a 9-pin D-type socket port. This port supports RS-232C communication function, making it connectable to a controller which features RS-232C function, and it can also be used for downloading programs or debugging for the product.
  • Page 34 1 List for All PLCs Supported by NB Series • NB3Q-TWB NB3Q-TWB has only 1 serial port COM1, and this port supports communication (non-isolated) based on RS-232C, RS-422 and RS-485, of which only 1 connection mode can be applied at one time.

  • Page 35: Connecting To Siemens Plcs

    Connecting to SIEMENS PLCs This section describes the connection to SIEMENS PLCs. 2-1 Serial Port and Ethernet ........2-2 2-1-1 Serial Port .

  • Page 36: Serial Port And Ethernet

    2 Connecting to SIEMENS PLCs Serial Port and Ethernet 2-1-1 Serial Port Series Link Module Driver CPU212 RS485 on the CPU unit SIEMENS S7-200 CPU214 CPU215 CPU216 CPU221 S7-200 CPU222 CPU224 CPU226 CPU224 XP CN CPU226 XP CN CPU312IFM MPI port on the CPU unit SIEMENS S7-300/400 (PC Adapter Direct) CPU313 CPU313C...

  • Page 37: Communication Parameters And Cable Fabrication

    2 Connecting to SIEMENS PLCs Communication Parameters and Cable Fabrication 2-2-1 Serial Port Series Link Module COMM Type Parameter Cable CPU222 RS485 on the CPU unit RS232 Refer to Self-made cable CPU224 Section 2-3 required RS485 S7-200 CPU226 CPU224 XP CN CPU226 XP CN CPU312IFM MPI port on the CPU unit...

  • Page 38: Communication Parameter Setting

    2 Connecting to SIEMENS PLCs Communication Parameter Setting 2-3-1 When Using SIEMENS S7-200 Communication Protocol PT Settings PT default communication parameters: 9600bps (Baud Rate), 8 (Data Bit), 1 (Stop Bit), even(Parity Check) and 2 (PLC Station No.) Note The maximum communication baud rate is 187.5K that is not supported by the direct online. The PLC No.

  • Page 39: When Using Siemens S7-300/400 (Pc Adapter Direct) Communication Protocol

    2 Connecting to SIEMENS PLCs PLC Settings 2-3-2 When Using SIEMENS S7-300/400 (PC Adapter Direct) Communication Protocol PT Settings PT default communication parameters: 19200bps(Baud Rate), 8(Data Bit), 2(Stop Bit), odd (Parity Check) and 2 (PLC Station No.) (Multiple Station No. is not supported.) RS232 Communication NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 40 2 Connecting to SIEMENS PLCs Note 1 The PLC Station No. is not needed if the PC adapter is used, which realize one for one communication. 2 When MPI-Adapter SSW7, RS232 (Order No.700-751-1VK21) manufactured by Helmholz is used, set the communication speed as follows.
  • Page 41 2 Connecting to SIEMENS PLCs Download the set parameters to PLC after the setting is completed. Then open [SIMATIC Manager] menu-[Option]-[PG/PC Interface Setting], select PC Adapter (MPI) and modify the transmission rate of MPI port to be 187.5K, as shown below: NB-series Programmable Terminals Host Connection Manual (V108)

  • Page 42: Siemens S7-200 (Smart) Ethernet (Tcp Slave)

    2 Connecting to SIEMENS PLCs 2-3-3 SIEMENS S7-200 (SMART) Ethernet (TCP Slave) PT Settings NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 43 2 Connecting to SIEMENS PLCs Note When you use S7-200 SMART, observe the following setting. Set the [PLC property] - [Protocol Time Out 2] to "20". PLC Settings  Using Ethernet Port of CPU Unit When you use the Unit that uses built-in Ethernet Port, set the Unit with STEP7-MICRO/WIN Smart. Double-click the [Communications].
  • Page 44 2 Connecting to SIEMENS PLCs Connect the PLC to be connected on the Ethernet Network that is connectable with PC and click the [Find CPUs]. Select the found CPU and click the [Edit] button. 2-10 NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 45 2 Connecting to SIEMENS PLCs Set IP address and others and click the [Set] button.  Using communication module When you use communication module, make settings with STEP7 Micro/Win. Select the [Tools] - [Ethernet Wizard...] from Menu. 2-11 NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 46 2 Connecting to SIEMENS PLCs Click the [Next>] button. Set the Module Position to "0" and click the [Next>] button. Precautions for Correct Use Precautions for Correct Use In order to communicate with the NB, the Module Position must be "0". If yours not the case, change the CPU configurations and set the Module Position to "0".
  • Page 47 2 Connecting to SIEMENS PLCs Make settings of IP address and others and select the [Auto Detect Communications] for the [Module Connection Type]. When completing the settings, click the [Next>] button. Make settings as below and click the [Next>] button. 2-13 NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 48 2 Connecting to SIEMENS PLCs Make settings as below and click the [OK] button. Make settings as below and click the [Next>] button. 2-14 NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 49 2 Connecting to SIEMENS PLCs Click the [Suggest Address] button and then the [Next>] button. Click the [Finish] button. Click the [Yes] button. 2-15 NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 50 2 Connecting to SIEMENS PLCs Correct your program to call the subroutine ETH0_CTRL for each cycle. 2-16 NB-series Programmable Terminals Host Connection Manual (V108)

  • Page 51: Siemens S7-300 Ethernet (Tcp Slave)

    2 Connecting to SIEMENS PLCs 2-3-4 SIEMENS S7-300 Ethernet (TCP Slave) PT Settings PLC Settings  Using Ethernet Port of CPU Unit Make settings with SIMATIC STEP 7 (TIA Portal). 2-17 NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 52 2 Connecting to SIEMENS PLCs Double-click the [General] tab - [PROFINET interface [X3]] - [Ethernet addresses] and set IP address and others. Transfer the set descriptions to the PLC. If you transfer the descriptions for the first time, select the [Extended download to device] and check in the [Show All compatible devices] check box. 2-18 NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 53 2 Connecting to SIEMENS PLCs Create a Data block. Double-click the [Project tree] - [Add new block]. Click the Data Block. Example: If you create a new Data block DB10, make settings as below. 2-19 NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 54 2 Connecting to SIEMENS PLCs Additional Information • If you use the Data block, the data type of the NB and the PLC should be the same. For instance, if the Data type of the PLC is REAL, the storing data type of the numeric input com- ponent should be Float.
  • Page 55 2 Connecting to SIEMENS PLCs Select the Model from [CP 343-1] - [Hardware catalog] and double-click on the Model. Click the [General] tab - [MPI address]. Set the [Connection to backplane bus] - [Address] to "3". 2-21 NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 56 2 Connecting to SIEMENS PLCs Click the [General] tab - [Ethernet addresses]. Make settings IP address and others. Download the settings to the PLC. 2-22 NB-series Programmable Terminals Host Connection Manual (V108)

  • Page 57: Siemens S7-1200 Ethernet (Tcp Slave)

    2 Connecting to SIEMENS PLCs 2-3-5 SIEMENS S7-1200 Ethernet (TCP Slave) PT Settings 2-23 NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 58 2 Connecting to SIEMENS PLCs PLC Settings Make settings of the PLC using SIMATIC STEP 7 (TIA Portal). Double-click the [General] tab - [PROFINET interface] - [Ethernet addresses] and set IP address and others. Transfer the set descriptions to the PLC. If you transfer the descriptions for the first time, select the [Extended download to device] and check the [Show All compatible devices] check box.
  • Page 59 2 Connecting to SIEMENS PLCs Create a Data block. Double-click the [Project tree] - [Add new block]. Click the [Data Block]. Example: If you should create a new Data block DB10, make settings as below. 2-25 NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 60 2 Connecting to SIEMENS PLCs Precautions for Correct Use Precautions for Correct Use • If you use the Data block, the data type of the NB and the PLC should be the same. For instance, if the Data type of the PLC is REAL, the storing data type of the numeric input com- ponent should be Float.

  • Page 61: Supported Registers

    2 Connecting to SIEMENS PLCs Supported Registers 2-4-1 SIEMENS S7-200 Device Bit Address Word Address Format Notes SCR Nodes S.B 0.0~31.7 ------ DD.O Special Memory Bit SM.B 0.0~549.7 ------ DDD.O Counter Bit Cnt 0~255 ------ DDD.O Counter Bit Tim 0~255 ------ DDD.O Variable Memory Nodes...

  • Page 62: Siemens S7-300/400 (Pc Adapter Direct)

    2 Connecting to SIEMENS PLCs 2-4-2 SIEMENS S7-300/400 (PC Adapter Direct) Device Bit Address Word Address Format Notes External Input Nodes I 0.0~511.7 ------ DDDD.O External Output Nodes Q 0.0~511.7 ------ DDDD.O Internal Auxiliary Nodes M 0.0~4095.7 ------ DDDD.O Data Register Nodes DBm.DBX 0~65535.7 ------ DDDDD.O...

  • Page 63: Siemens S7-300 Ethernet (Tcp Slave)

    2 Connecting to SIEMENS PLCs 2-4-4 SIEMENS S7-300 Ethernet (TCP Slave) Device Bit Address Word Address Format Note Data Register Nodes DBm_DBX ------ DDDDD.O m:1 to 10 0.0~65535.7 Data Register Nodes DBn_DBX ------ DDDDDDDD. n:1 to 255 100000.0~25565535.7 External Input Nodes I 0.0~2047.7 ------ DDDD.O...

  • Page 64: Siemens S7-1200 Ethernet (Tcp Slave)

    2 Connecting to SIEMENS PLCs 2-4-5 SIEMENS S7-1200 Ethernet (TCP Slave) Device Bit Address Word Address Format Note Data Register Nodes DBm_DBX ------ DDDDD.O m:1 to 10 0.0~65535.7 Data Register Nodes DBn_DBX ------ DDDDDDDD. n:1 to 255 100000.0~25565535.7 External Input Nodes I 0.0~1023.7 ------ DDDD.O...

  • Page 65: Cable Fabrication

    2 Connecting to SIEMENS PLCs Cable Fabrication When Using SIEMENS S7-200 Communication Protocol  RS232 Communication Cable Use RS-232/PPI multi-host cable and self-made RS232 cable manufactured by SIEMENS to communicate with PT. • Self-made RS-232 Cable PT (COM1/COM2) RS-232/PPI cable connector Signal Pin No.
  • Page 66 2 Connecting to SIEMENS PLCs 2-32 NB-series Programmable Terminals Host Connection Manual (V108)

  • Page 67: Connecting To Mitsubishi Plcs

    Connecting to Mitsubishi PLCs This section describes the connection to Mitsubishi PLCs. 3-1 Serial Port and Ethernet ........3-2 3-1-1 Serial Port .

  • Page 68: Serial Port And Ethernet

    3 Connecting to Mitsubishi PLCs Serial Port and Ethernet 3-1-1 Serial Port Link Module Series Driver (The products in ( ) are also needed) FXCPU FX1S RS422 on the CPU unit Mitsubishi FX1S *2 FX2NC-485-ADP (FX1N-CNV-BD) Mitsubishi FX1S *2 FX0N-485-ADP (FX1N-CNV-BD) Mitsubishi FX-485ADP/485BD/232BD FX1N--BD (Multi-station) *1...

  • Page 69: Ethernet

    3 Connecting to Mitsubishi PLCs Link Module Series Driver (The products in ( ) are also needed) MELSEC Q Q06HCPU RS232 on the CPU unit Mitsubishi Q06H QJ71C24 Mitsubishi Q_QnA (Link Port) QJ71C24-R2 QJ71C24N QJ71C24N-R2 QJ71C24N-R4 Q00UJCPU RS232 on the CPU unit Mitsubishi Q_QnA (Link Port) Q06UDHCPU RS232 on the CPU unit...
  • Page 70 3 Connecting to Mitsubishi PLCs Series Link Module Driver MELSEC L L02CPU Ethernet Port on CPU Unit Mitsubishi QnA 3EBin Ethernet (TCP Slave) L02CPU-P LJ71E71-100 Mitsubishi QJ71E71 EtherNet Slave L06CPU L06CPU-P L26CPU L26CPU-P L26CPU-BT L26CPU-PBT L02SCPU LJ71E71-100 Mitsubishi QJ71E71 EtherNet Slave L02SCPU-P NB-series Programmable Terminals Host Connection Manual (V108)

  • Page 71: Communication Setting And Cable Connection

    3 Connecting to Mitsubishi PLCs Communication Setting and Cable Connection 3-2-1 Serial Port Series Link Module COMM Type Parameter Cable FXCPU FX1S RS422 on the CPU unit RS422 Refer to Section 3-3 Self-made cable FX1N required RS232 Module RS232 FX2N RS485 Module RS422 FX1NC...

  • Page 72: Ethernet

    3 Connecting to Mitsubishi PLCs 3-2-2 Ethernet Series Link Module COMM Type Parameter Cable FXCPU FX3U FX3U-ENET-L Refer to Section 3-3 Network Cable MELSEC Q Q00JCPU QJ71E71-100 Q00CPU Q01CPU Q02CPU Q02HCPU Q12HCPU Q25HCPU Q26UDVCPU Q03UDECPU Ethernet Port on CPU Unit - Q04UDEHCPU Q06UDEHCPU Q10UDEHCPU...

  • Page 73: Communication Setting

    3 Connecting to Mitsubishi PLCs Communication Setting 3-3-1 When Using Mitsubishi FX1S, Mitsubishi FX1N/2N/3G and Mitsubishi FX3U Communication Protocols PT Settings PT default communication parameters: 9600bps (Baud Rate), 7 (Data Bit), even (Parity Check), 1 (Stop Bit) and 0 (PLC Station No.) The PLC Communication Time Out, Max interval of word (bit) block pack, Max size of word(bit) block package on the right of the dialog box vary with PLC protocols.
  • Page 74 3 Connecting to Mitsubishi PLCs RS232 Communication PLC Settings The PLC setting is as shown below when Mitsubishi FX1S, Mitsubishi FX1N/2N/3G and Mitsubishi FX3U communication protocols are used: Click the [Default] button to make settings without checking the [Communication Setting]: Note 1 The communication protocols such as Mitsubishi FX1S, Mitsubishi FX1N/2N/3G and Mitsubishi FX3U etc.

  • Page 75: When Using Mitsubishi Fx-485Adp/485Bd/232Bd (Multi-Station) Communication Protocols

    3 Connecting to Mitsubishi PLCs 3-3-2 When Using Mitsubishi FX-485ADP/485BD/232BD (Multi-station) Communication Protocols PT Settings PT default communication parameters: 19200bps (Baud Rate), 7(Data Bit), even (Parity Check), 2 (Stop Bit) and 0 (PLC Station No.) Note: The protocols are only applicable to PLCs communicating through communication function expansion board and support Multiple Station No.
  • Page 76 3 Connecting to Mitsubishi PLCs PLC Settings The PLC setting is as shown below when FX-485ADP/485BD/232BD (Multi-station) communication protocols are used: Double-click the [PLC Parameter] under [Project Data List] in GX Developer software. Open the [FX Parameter] dialog box. FX1S/FX1N/FX2N/3G Series PLC Check the [Operate communication setting] option.
  • Page 77 3 Connecting to Mitsubishi PLCs (2) FX3U/3UC Series PLC Check the [Operate communication setting] option. Note 1 The [CH1] should be selected for FX3U/3UC Series PLC. 2 Set the parameters as follows. [Dedicated Protocol] is selected for Protocol, [Sum Check] is checked, and [Form4] is selected for the Transmission Control Sequence.

  • Page 78: When Using Fx2N-10Gm/20Gm Communication Protocol

    3 Connecting to Mitsubishi PLCs 3-3-3 When Using FX2N-10GM/20GM Communication Protocol PT Settings PT default communication parameters: 9600bps (Baud Rate), 8 (Data Bit), even (Parity Check), 1 (Stop Bit) and 0 (PLC Station No.) Note This protocol can be used when communicating with the PLC through the programming port of the CPU and the Functions Extension board.

  • Page 79: When Using Mitsubishi Q00J (Cpu Port) Communication Protocol

    3 Connecting to Mitsubishi PLCs 3-3-4 When Using Mitsubishi Q00J (CPU Port) Communication Protocol PT Settings PT default communication parameters: 19200bps (Baud Rate), 8 (Data Bit), odd (Parity Check), 1 (Stop Bit) and 0 (PLC Station No.) (Multiple Station No. is not supported.) RS232 Communication Note There is no need to set PLC baud rate that will automatically vary with the baud rate set by 3-3-5...

  • Page 80: When Using Mitsubishi Q06H Communication Protocol

    3 Connecting to Mitsubishi PLCs RS232 Communication Note There is no need to set PLC baud rate that will automatically vary with the baud rate set by PT. 3-3-6 When Using Mitsubishi Q06H Communication Protocol PT Settings PT default communication parameters: 115200bps (Baud Rate), 8 (Data Bit), odd (Parity Check), 1 (Stop Bit) and 0 (PLC Station No.) (Multiple Station No.

  • Page 81: When Using Mitsubishi Q_Qna (Link Port) Communication Protocol

    3 Connecting to Mitsubishi PLCs 3-3-7 When Using Mitsubishi Q_QnA (Link Port) Communication Protocol PT Settings PT default communication parameters: 9600bps (Baud Rate), 8 (Data Bit), odd (Parity Check), 1 (Stop Bit) and 0 (PLC Station No.) RS232 Communication RS422 Communication 3-15 NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 82 3 Connecting to Mitsubishi PLCs PLC Settings The PLC settings is as shown below when Mitsubishi Q_QnA (Link Port) or Mitsubishi Melsec Q communication protocols are used:  Communication through CPU Port  Communication through C24 Serial Port Communication Module Open [Parameter] on Project Data List and double-click [PLC parameter], and select [I/O assignment] after the [Qn (H) Parameter] dialog box is opened.
  • Page 83 3 Connecting to Mitsubishi PLCs Click the [Type] dropdown list to select the [Intelli.] option. Click the [Switch setting] button and make settings as shown below: 3-17 NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 84 3 Connecting to Mitsubishi PLCs The attribute descriptions of Switch1, Switch2, Switch3, Switch4 and Switch5 are as shown below: Switch Content [Example] CH1:Baud rate , transmission setting Baud rate transmission setting 0BEEH 115Kbps Settings Content 8bit 4800 Action set Independent Linked Switch 1 1bit...
  • Page 85 3 Connecting to Mitsubishi PLCs The Switch1, Switch2 and Switch5 can be set as shown below if the CH1 RS232 communication parameters and Station No. are set to 19200/8/Odd/1 and 0 respectively: Setting Setting Switch Setup Description Value Switch 1 07E6 19200/8/With/Odd/1 Switch 2...

  • Page 86: When Using Mitsubishi Fx Series Ethernet(Tcp Slave) Communication Protocol

    3 Connecting to Mitsubishi PLCs 3-3-8 When Using Mitsubishi FX Series Ethernet(TCP Slave) Communication Protocol PT Settings The PT Network Settings are as shown below. 3-20 NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 87 3 Connecting to Mitsubishi PLCs PLC Settings The PLC Settings when using Communication Protocol of Mitsubishi FX Series Ethernet (TCP Slave) is as shown below. Start-up Setting Tool, FX3U-ENET-L. Click the [Operation Setting] to open [Ethernet Operation Setting]. Set the IP address to the same parameters as the PT settings. Other settings should be the same as the dialog box as below.
  • Page 88 3 Connecting to Mitsubishi PLCs Click the [Open Setting] to open the [Ethernet Open Setting]. 3-22 NB-series Programmable Terminals Host Connection Manual (V108)

  • Page 89: When Using Mitsubishi Qna 3Ebin Ethernet (Tcp Slave) Communication Protocol

    3 Connecting to Mitsubishi PLCs 3-3-9 When Using Mitsubishi QnA 3EBin Ethernet (TCP Slave) Communication Protocol PT Settings The PT Network Settings are as shown below. Note The Station No. is fixed to 255. 3-23 NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 90 3 Connecting to Mitsubishi PLCs PLC Settings The PLC Settings when using Communication Protocol of Mitsubishi QnA 3EBin Ethernet (TCP Slave) is as shown below. Double-click the [PLC Parameter] under [Project] of GX Works2 software. [Q Parameter Setting] or [L Parameter Setting] dialog boxes are open. Set the IP address to the same parameters as the PT settings.
  • Page 91 3 Connecting to Mitsubishi PLCs Click the [Open Setting] to open [Build-in Ethernet Port Open Setting] dialog box. Set the parameters as the same with the dialog box as follows. 3-25 NB-series Programmable Terminals Host Connection Manual (V108)

  • Page 92: When Using Mitsubishi Qj71E71 Ethernet Slave Communication Protocol

    3 Connecting to Mitsubishi PLCs 3-3-10 When Using Mitsubishi QJ71E71 EtherNet Slave Communication Protocol PT Settings The PT Network Settings are as shown below. 3-26 NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 93 3 Connecting to Mitsubishi PLCs PLC Settings PLC Settings when using Mitsubishi QJ71E71 EtherNet Slave Communication Protocol are as shown below. Double-click the [Ethernet/CC IE/MELSECNET] under [Project] of GX Works2 software. [Network Parameter] tab is opened. Set the parameters as the same with the diagram as follows. Note When connecting to NB, each parameter should be restricted to the ones as follows.
  • Page 94 3 Connecting to Mitsubishi PLCs Click the [Operation Setting] to open [Ethernet Operation Setting]. Set the IP address to the same parameters as the PT settings. Other settings should be the same as the dialog box as below. Click the [Open Setting] to open the [Ethernet Open Setting] tab. Set the IP address to the same parameters as the PT settings.

  • Page 95: Supported Registers

    3 Connecting to Mitsubishi PLCs Supported Registers Precautions for Correct Use Precautions for Correct Use The operation is not guaranteed when the area that does not exist phisically is accessed. Additional Information Address format description: D: decimal, O: octal, H: hexadecimal. Mitsubishi FX1S Driver Device Bit Address...
  • Page 96 3 Connecting to Mitsubishi PLCs Mitsubishi FX2N-10GM/20GM Driver Device Bit Address Word Address Format Notes Input Relay X 0-571 ------ Output Relay Y 0-571 ------ Internal Relay M 0-7999 ------ DDDD Special Internal Relay SM 9000-9999 ------ DDDD Data Register ------ D 0-7999 DDDD...
  • Page 97 3 Connecting to Mitsubishi PLCs Mitsubishi Q00J (CPU Port) Driver Device Bit Address Word Address Format Notes Counter Coil CC 0-1023 DDDD Counter Contact CS 0-1023 DDDD Timer Coil TC 0-2047 DDDD Timer Contact TS 0-2047 DDDD Special Link Relay SB 0-7FFF ------ HHHH...
  • Page 98 3 Connecting to Mitsubishi PLCs Mitsubishi Q series (CPU Port) Driver Device Bit Address Word Address Format Notes Special Link Relay SB 0-7FFF ------ HHHH Link Relay B 0-7FFF ------ HHHH Edge Relay V 0-32767 ------ DDDDD Annunciator F 0-32767 ------ DDDDD Latch Relay...
  • Page 99 3 Connecting to Mitsubishi PLCs Mitsubishi FX Series Ethernet (TCP Slave) Device Bit Address Word Address Format Notes Input Relay X 0-255 ------ Output Relay Y 0-255 ------ Timer Contact T_bit 0-511 ------ Counter Contact C_bit 0-255 ------ Data Contact D_bit 0-127999 ------ DDDDD...
  • Page 100 3 Connecting to Mitsubishi PLCs Device Bit Address Word Address Format Notes Counter Value ------ CN 0-32767 DDDDD Index Register ------ Z 0-19 File Register ------ R 0-32767 DDDDD File Register ------ ZR 0-4849663 DDDDDDD (Block switching is not necessary) Special Link Resister ------ SB 0-7FF0...

  • Page 101: Cable Fabrication

    3 Connecting to Mitsubishi PLCs Cable Fabrication FX Series RS232 Communication Cable  FX-232-BD Communication Cable Communication expansion board PT (COM1/COM2) or special communication adaptor Signal Pin No. Pin No. Signal D-Sub D-Sub 9Pin 9Pin (Female) (Female) FX Series RS485/422 Communication Cable ...
  • Page 102 3 Connecting to Mitsubishi PLCs Q Series RS232 Communication Cable  Communication Cable for CPU Port (Except Q00UJ CPU and L02S CPU) PT (COM1/COM2) Signal Pin No. Pin No. Signa l D-Sub 6Pin Mini 9Pin (Female) (Female)  Communication Cable for CPU Port (Q00UJ CPU and L02S CPU) For the communication with the PT, use RS-232 cable (QC30R2) to connect the PC - sequencer CPU manufactured by Mitsubishi Electric.

  • Page 103: Connecting To Schneider Plcs

    Connecting to Schneider PLCs This section describes the connection to Schneider PLCs. 4-1 Serial Port Communication ........4-2 4-2 Communication Parameters and Cable Fabrication .

  • Page 104: Serial Port Communication

    4 Connecting to Schneider PLCs Serial Port Communication Series Link Module Driver Micro TSX3705001 TER port on the CPU Schneider Modicon Uni- TSX 37 05 028DR1 TelWay TSX 37 08 056DR1 Modbus RTU TSX 37 10 128DT1 TSX 37 10 128DR1 TSX 37 10 128DTK1 TSX 37 10 164DTK1 TSX 37 10 028AR1...

  • Page 105: Communication Parameters And Cable Fabrication

    4 Connecting to Schneider PLCs Communication Parameters and Cable Fabrication Link COMM Series Driver Parameter Cable Module Type Modicon TSX3705001 RS485 on Schneider RS232 Refer to Self-made TSX3705001 the CPU Modicon Section 4-3 cable RS485 TSX 37 05 028DR1 unit Uni-TelWay required TSX 37 08 056DR1...

  • Page 106: Communication Parameter Setting

    4 Connecting to Schneider PLCs Communication Parameter Setting PT Settings  When Using Schneider Modicon Uni-TelWay Protocol PT default communication parameters: 19200bps (Baud Rate), 8 (Data Bit), odd (Parity Check), 1 (Stop Bit) and 4 (PLC Station No.) RS232 Communication RS485 Communication NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 107 4 Connecting to Schneider PLCs  When Using Modbus RTU Protocol PT default communication parameters: 9600bps (Baud Rate), 8 (Data Bit), even (Parity Check), 1 (Stop Bit) and 1 (PLC Station No.) RS232 Communication RS485 Communication NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 108 4 Connecting to Schneider PLCs PLC Settings  PL7 Software Setting Open “Programs” menu - Select [XWAY Driver Manager] from Modicon Telemecanique: Select [UNITELWAY Driver] tab and push [Configuration] in the dialog box and finally select [Edit] in the following dialog box to modify the related setttings of the communications. NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 109 4 Connecting to Schneider PLCs The following prompt information will appear after the [OK] button is clicked: NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 110 4 Connecting to Schneider PLCs Click [XWAY Test] [Connect] and the Connected prompt information will appear when the  connection is successful. Open PL7 Software Click [Hardware Configuration] in [STATION] Double-click [comm]    in popup window. NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 111 4 Connecting to Schneider PLCs The settings are as shown below if Schneider Modicon Uni-TelWay Protocol is used: The settings are shown as below if Modbus RTU Protocol is used: Download the project to PLC after the settings are completed. NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 112 4 Connecting to Schneider PLCs PT Settings  When Using Schneider Twido Modbus RTU Protocol PT default communication parameters: 19200bps (Baud Rate), 8 (Data Bit), none (Parity Check), 1 (Stop Bit) and 1 (PLC Station No.) RS485 Communication RS232 Communication 4-10 NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 113 4 Connecting to Schneider PLCs PLC Settings  When Using Schneider Twido Modbus RTU Protocol Note The memory addresses of Twido are under dynamic management, which may lead to communication failure when address link is available. Refer to the setting method of PLC as follows and set the words or bits correctly.
  • Page 114 4 Connecting to Schneider PLCs Expand the range of word memory address. Then change the [Auto] option in the [Assigned] column after selecting [Controller], [Used Memory] and [Edit] to a larger variable than internal memory and download the settings to the PLC. It is assumed that the “Auto”...

  • Page 115: Supported Registers

    4 Connecting to Schneider PLCs Supported Registers Modicon TSX Device Bit Address Word Address Format Notes System Internal Nodes S00000-32767 ------ DDDDD Internal Auxiliary Nodes M00000-32767 ------ DDDDD Data Register Bit Nodes MW.B0000-9999.F ------ DDDD.H Data Registers ------ MW0000-7999 DDDD Data Registers (32-bit) ------ MD0000-7999...

  • Page 116: Cable Fabrication

    4 Connecting to Schneider PLCs Cable Fabrication When Using Schneider Modicon Uni-TelWay Protocol  RS232 Communication Cable Use serial port programming cable manufactured by Schneider directly to communicate with PT. Note Direct the middle cable knob to position 2 and add a RS232 cable directly between the PT and programming cable.

  • Page 117: Modbus Connection

    Modbus Connection This section describes the connection on Modbus protocol. 5-1 Serial Port and Ethernet ........5-2 5-2 Communication Parameters and Cable Fabrication .

  • Page 118: Serial Port And Ethernet

    5 Modbus Connection Serial Port and Ethernet Series Link Module SIO Type Driver Modbus RTU Modbus Compatible RS232 on the CPU unit - Modbus RTU External Device Modbus RTU RS422 on the CPU unit - Modicon_BE RS485 on the CPU unit - Modbus RTU Extend RS232 on the CPU unit - Modbus RTU Extend...

  • Page 119: Communication Parameters And Cable Fabrication

    5 Modbus Connection Communication Parameters and Cable Fabrication Series Link Module COMM Type Parameter Cable Modbus RTU Modbus RS232 on the RS232 Refer to Section 5-3 Self-made cable Compatible CPU unit required External Device RS422 on the RS422 CPU unit RS485 on the RS485 CPU unit...

  • Page 120: Communication Parameter Setting

    5 Modbus Connection Communication Parameter Setting PT Settings  When Using Modbus RTU Protocol PT default communication parameters: 9600bps (Baud Rate), 8 (Data Bit), even (Parity Check), 1 (Stop Bit) and 1 (PLC Station No.) Note 1 Modbus RTU driver supports little-endian. Modbus RTU Modicon_BE supports big-endian. ...
  • Page 121 5 Modbus Connection  When Using Modbus RTU Slave Protocol PT default communication parameters: 9600bps (Baud Rate), 8 (Data Bit), even (Parity Check), 1 (Stop Bit) and 1 (PLC Station No.)  When Using Modbus ASCII Protocol PT default communication parameters: 9600bps (Baud Rate), 8 (Data Bit), even (Parity Check), 1 (Stop Bit) and 1 (PLC Station No.) NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 122 5 Modbus Connection  When Using Modbus TCP Slave Protocol PT serves as the master, the network configuration is as follows.  When Using Modbus TCP Protocol PT serves as the slave, the network configuration is as follows. Refer to 5-7 Example of NB as Modbus Slave for example. NB-series Programmable Terminals Host Connection Manual (V108)

  • Page 123: Supported Registers

    5 Modbus Connection Supported Registers Modbus RTU Device Bit Address Word Address Format Notes System Internal/External Output 0X 1-65535 ------ DDDDD Nodes System Internal/External Input 1X 1-65535 ------ DDDDD Nodes Analog Input Data Registers ------ 3X 1-65535 DDDDD Data Registers ------ 4X 1-65535 DDDDD...
  • Page 124 5 Modbus Connection Modbus RTU Slave Device Bit Address Word Address Format Notes System Internal/External Output LB 0-8999 ------ DDDDD Mapping to Nodes 0x 1~9000 Data Registers ------ LB 0-8999 DDDDD Mapping to 4x 1~9000 Modbus ASCII Device Bit Address Word Address Format Notes...

  • Page 125: Cable Fabrication

    5 Modbus Connection Cable Fabrication  RS232 Communication Cable PT (COM1/COM2) Signal Pin No. Pin No. Signal D-Sub D-Sub 9Pin 9Pin (Female)  RS422 Communication Cable Communication expansion board PT (COM2) or special communication adaptor Signa l Pin No. Signal SDB+ RDB+ D-Sub...

  • Page 126: Modbus Protocol

    5 Modbus Connection Modbus Protocol 5-6-1 Introduction to Modbus Protocol Modbus functions as a request-response protocol which provides the service specified by function codes. Modbus protocol such as ASCII, RTU, and TCP does not specify the physical layer, but defines the message frame and is available to communicate with the Controllers through varied networks.

  • Page 127: When Nb Adopts Modbus Tcp Protocol (Master/Slave Mode)

    5 Modbus Connection The read/write function codes corresponding to each mode are as follows: Modbus RTU, Modbus RTU Extend, Mode Modbus TCP Modbus RTU Slave, Modbus ASCII Function Word Word Read 01, 02 03, 04 01, 02* 03, 04* Write 05, 15 06, 16 05, 15...

  • Page 128: Example Of Nb As Modbus Slave

    5 Modbus Connection Example of NB as Modbus Slave Communication by Modbus RTU Slave protocol System description: Use CP1E-N30D- (30-point I/O type) as Modbus master and an NB Unit as Modbus slave to perform the communication. PLC Setting CP1E-N30D should connect to CP1W-CIF11 module functioning as RS485 communication port. ...
  • Page 129 5 Modbus Connection NB Unit Setting We take one NB7W-TW00B as example with the system configuration as shown below: NB7W-TW00B communication settings: 9600 (Baud Rate), 8 (Data Bit), 1 (Stop Bit), Even (Parity Check) and 1 (device No.), as shown below: 5-13 NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 130 5 Modbus Connection Cable Fabrication OMRON PLC side CP1W-CIF11 NB7W-TW00B Signal Signal Pin No. COM2(female) Pin No. SDB + RDA- RDB + SD(TXD) SDA- RD(RXD ) SDB+ Terminal 1 Terminal 2 RDB + SDA- RDA- Connector shell 5-14 NB-series Programmable Terminals Host Connection Manual (V108)

  • Page 131: Example Of Connection Using Modbus Tcp Protocol

    5 Modbus Connection Example of connection using Modbus TCP protocol Use Modbus TCP protocol to perform the communication, PT serving as the slave. PLC Setting Since Modbus TCP is a general purpose protocol, setting method differs depending on the PLC. Please confirm the setting of PLC used before making the settings.

  • Page 132: Example Of E5Cc/E5Ec, 3G3Mx2 Connection Using Modbus Rtu Extend Protocol

    5 Modbus Connection Example of E5CC/E5EC, 3G3MX2 connection using Modbus RTU Extend Protocol Unit Setting Connect with the NB using RS485 communication port. Set or check Baud Rate, Data Bit, Parity Check and Stop Bit using the operator came with the unit. Make sure the communication setting of NB unit and the temperature controller or the inverter corresponds.
  • Page 133 5 Modbus Connection Cable Fabrication E5CC/E5EC NB7W-TW01B Signal Pin No. Signal COM2(female) A( -) SDB + RS-485 B(+) connector SD(TXD) RD(RXD) Terminal 1 Terminal 2 RDB + SDA- RDA- Connector shell 3G3MX2 NB7W-TW01B Signal Pin No. COM2(female) Signal SDB + RS-485 SD(TXD) connector...

  • Page 134: Example Of Power Pmac Motion Controller Using Modbus Tcp Slave Protocol

    5 Modbus Connection 5-10 Example of Power PMAC Motion Controller using Modbus TCP Slave Protocol The NB communicates with the Power PMAC using the Ethernet communication port via the Modbus TCP Slave protocol with the PT designated as a master unit. Therefore, the communication settings between the NB and the Power PMAC must be consistent.
  • Page 135 5 Modbus Connection  Power PMAC Settings Perform the Power PMAC settings as described below: In addition, add the following item to the "global definitions.pmh" file on the Power PMAC IDE tool to make the Power PMAC operate as the Modbus TCP slave unit. Sys.ModbusServerEnable = 1 5-19 NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 136 5 Modbus Connection  Address Mapping The data on the Power PMAC are managed as variables. By enabling the Modbus TCP slave func- tion on the Power PMAC side, the Modbus addresses are automatically linked with those of the vari- ables on the Power PMAC.

  • Page 137: Connecting To Delta Plcs

    Connecting to Delta PLCs This section describes the connection to Delta PLCs 6-1 Serial Port Communication ........6-2 6-2 Communication Parameters and Cable Fabrication .

  • Page 138: Serial Port Communication

    6 Connecting to Delta PLCs Serial Port Communication Series Link Module Driver DVP-XXES/EX/SS RS232 on the CPU unit Delta DVP DVP-XXSA/SX/SC RS485 on port DVP-XXEH/EH2/SV NB-series Programmable Terminals Host Connection Manual (V108)

  • Page 139: Communication Parameters And Cable Fabrication

    6 Connecting to Delta PLCs Communication Parameters and Cable Fabrication Series Link Module COMM Type Parameter Cable DVP-XXES/EX/SS RS232 on the RS232 Refer to Self-made DVP-XXSA/SX/SC CPU unit Section 6-3 cable required DVP-XXEH/EH2/SV RS485 on port RS485 NB-series Programmable Terminals Host Connection Manual (V108)

  • Page 140: Communication Parameter Setting

    6 Connecting to Delta PLCs Communication Parameter Setting PT Settings PT default communication parameters: 9600bps (Baud Rate), 7 (Data Bit), even (Parity Check), 1 (Stop Bit) and 1(PLC Station No.) RS232 Communication RS485 Communication Note The communication parameters should be set through modification of D1120 value when RS485 communi- cation is used.
  • Page 141 6 Connecting to Delta PLCs PLC Settings You can check the baud rates equivalent to the value of D1120 in the dialog box, “RS-485 Protocol Setting (D1120)” after selecting [Help] menu in the Wpl207 software, and [Auxiliary Editing] in the “Help” in the Wpl207 software. Monitor and modify the value of D1120 after PLC is connected to Wpl207.

  • Page 142: Supported Registers

    6 Connecting to Delta PLCs Supported Registers Device Bit Address Word Address Format Notes External Input Nodes X0-23417 ------ OOOOO External Output Nodes Y0-23417 ------ OOOOO Internal Auxiliary M0-9999 ------ DDDD Nodes Sequence Control S0-9999 ------ DDDD Nodes Timer Nodes T0-9999 ------ DDDD...

  • Page 143: Cable Fabrication

    6 Connecting to Delta PLCs Cable Fabrication  RS232 Communication Cable PT (COM1/COM2) Signa l Pin No. Pin No. Signal D-Sub 8Pin Mini 9Pin (Female) (Male)  RS485 Communication Cable PT (COM2) Signa l Pin No. Signal RDB+ SDB+/RDB+ RS-485 D-Sub RDA- SDA-/RDA-...
  • Page 144 6 Connecting to Delta PLCs NB-series Programmable Terminals Host Connection Manual (V108)

  • Page 145: Connecting To Lsis Plcs

    Connecting to LSIS PLCs This section describes the connection to LSIS PLCs 7-1 Serial Port Communication ........7-2 7-2 Communication Parameters and Cable Fabrication .

  • Page 146: Serial Port Communication

    7 Connecting to LSIS PLCs Serial Port Communication Series Type Link Module Driver Master-K K120S K7M-DR10UE Port1 on CPU unit LS Master-K CPU Direct Port2 on CPU unit LS Master-K Cnet K7M-DR20U LS Master-K Modbus RTU K7M-DT30U K7M-DT40U K7M-DT60U K200S K3P-07AS RS232 on the CPU unit XBC-DN64H...

  • Page 147: Communication Parameters And Cable Fabrication

    7 Connecting to LSIS PLCs Communication Parameters and Cable Fabrication COMM Series Link Module Parameter Cable Type K120S K7M-DR10UE Port1 on CPU unit RS232 Refer to Section Self-made cable required Port2 on CPU unit RS485 K7M-DR20U Port1 on CPU unit RS232 Port2 on CPU unit RS485...

  • Page 148: Communication Parameter Setting

    7 Connecting to LSIS PLCs Communication Parameter Setting PT Settings  When Using LS Master-K Cnet Protocol PT default communication parameters: 38400bps (Baud Rate), 8 (Data Bit), none (Parity Check), 1 (Stop Bit) and 1(PLC Station No.) RS232 Communication RS485 Communication ...
  • Page 149 7 Connecting to LSIS PLCs RS232 Communication Note LS Master-K CPU Direct protocol only supports communication speed of 38400bps.  When Using LS Master-K Modbus RTU Protocol PT default communication parameters: 38400bps (Baud Rate), 8 (Data Bit), none (Parity Check), 1 (Stop Bit) and 1 (PLC Station No.) RS232 Communication NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 150 7 Connecting to LSIS PLCs  When Using LS XGT CPU Direct Protocol PT default communication parameters: 115200bps (Baud Rate), 8 (Data Bit), none (Parity Check), 1 (Stop Bit) and 0 (PLC Station No.) RS232 Communication Note LS XGT CPU Direct protocol only supports communication speed of 115200bps and the Multiple Station No. is not supported.
  • Page 151 7 Connecting to LSIS PLCs  When Using LS XEC Cnet Protocol PT default communication parameters: 9600bps (Baud Rate), 8 (Data Bit), none (Parity Check), 1 (Stop Bit) and 0 (PLC Station No.) RS232 Communication RS485 Communication NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 152 7 Connecting to LSIS PLCs PLC Settings  When Using LS Master-K Cnet Protocol The software settings are as shown below (Please pay attention to the settings encircled by red line.):  When Using LS Master-K Modbus RTU Protocol The software settings are as shown below (Please pay attention to the settings encircled by red line.): The “Cannot Change PLC Mode”...
  • Page 153 7 Connecting to LSIS PLCs  When Using LS XGT Cnet Protocol Set the communication parameters through the [Tools]-[Network Manager] menu option. PLC must operate in [OPR] mode, which can be set on PLC NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 154 7 Connecting to LSIS PLCs  When Using LS XEC Cnet Protocol Right click on the [Network Configuration]-[Unspecified Network]-[PLC name] and select [Prop- erties]. On the [Standard Settings - Cnet] window, select the [Standard Settings] tab, and set communi- cation parameters. 7-10 NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 155 7 Connecting to LSIS PLCs On the [Standard Settings - Cnet] window, select the [Advanced Settings] tab, and set commu- nication parameters. 7-11 NB-series Programmable Terminals Host Connection Manual (V108)

  • Page 156: Supported Registers

    7 Connecting to LSIS PLCs Supported Registers K120S K7M-DR10UE Device Bit Address Word Address Format Notes I/O Relay P 0.0-63.f ------ DD.H Auxiliary Relay M 0.0-191.f ------ DDD.H Link Relay L 0.0-63.f ------ DD.H Keep Relay K 0.0-31.f ------ DD.H Special Relay F 0.0-31.f DD.H...
  • Page 157 7 Connecting to LSIS PLCs LS XGT CPU Direct Device Bit Address Word Address Format File Relay R_bit 0.0-10239.F ------ DDDDD.H Data Relay D_bit 0.0-10239.F ------ DDDDD.H Communication Relay N_bit 0.0-5119.F ------ DDDD.H Link Relay L_bit 0.0-2047.F ------ DDDD.H Index Relay Z_bit 0.0-127.F ------ DDD.H...
  • Page 158 7 Connecting to LSIS PLCs Device Bit Address Word Address Format File Register ------ R 0-10239 DDDDD Special module Register ------ U 0-511 Keep Register ------ K 0-4095 DDDD Link Register ------ L 0-2047 DDDD Auxiliary Register ------ M 0-4095 DDDD Communication Register ------...

  • Page 159: Cable Fabrication

    7 Connecting to LSIS PLCs Cable Fabrication When Using LS Master-K Cnet/LS Master-K Modbus RTU Protocol  RS232 Communication Cable PT (COM1/COM2) Signal Pin No. Pin No. Signal D-Sub D-Sub 9Pin 9Pin (Female) (Female)  RS485 Communication Cable PT (COM2) Signal Signa l Pin No.
  • Page 160 7 Connecting to LSIS PLCs When Using LS XGT / XEC Cnet Protocol  RS232 Programming Cable Signal Pin No. Pin No. Signa l D-Sub 6Pin Mini 9Pin ( Male) (Female)  RS232 Communication Cable PT (COM1/COM2) Signal Pin No. Signal D-Sub Built-in...

  • Page 161: Connecting To Panasonic Industrial Devices Sunx Plcs

    Connecting to Panasonic Industrial Devices SUNX PLCs This section describes the connection to Panasonic Industrial Devices SUNX PLCs. 8-1 Serial Port Communication ........8-2 8-2 Communication Parameters and Cable Fabrication .

  • Page 162: Serial Port Communication

    8 Connecting to Panasonic Industrial Devices SUNX PLCs Serial Port Communication Series Link Module Driver Tool port on the Control unit Panasonic FP AFPG801 AFPG802 AFPG803 AFPG806 Tool port on the Control unit RS232C port on the Control unit FP-M Tool port on the Control unit FP2SH RS232C port on the Control unit...

  • Page 163: Communication Parameters And Cable Fabrication

    8 Connecting to Panasonic Industrial Devices SUNX PLCs Communication Parameters and Cable Fabrication Series Link Module COMM Type Parameter Cable Tool port on the Control unit RS232C Refer to Self-made cable required Section 8-3 AFPG801 AFPG802 AFPG806 AFPG803 RS485 AFPG806 Tool port on the Control unit RS232C RS232C port on the Control unit...

  • Page 164: Communication Parameter Setting

    8 Connecting to Panasonic Industrial Devices SUNX PLCs Communication Parameter Setting PT Settings PT default communication parameters: 9600bps (Baud Rate), 8 (Data Bit), odd (Parity Check), 1 (Stop Bit) and 1 (PLC Station No.) RS232 Communication RS485 Communication RS422 Communication PLC Settings Please refer to relevant instruction manual of communication device on parameter settings.

  • Page 165: Supported Registers

    8 Connecting to Panasonic Industrial Devices SUNX PLCs Supported Registers FP0-C16 Device Bit Address Word Address Format Notes External Output Nodes Y0.0-12.F DD.H External Input Nodes X0.0-12.F DD.H Timer Nodes T0-99 Counter Nodes C100-143 Internal Auxiliary Nodes R0.0-62.F DD.H R900.0-903.F DDD.H Setting Value Registers SV0-143...

  • Page 166: Cable Fabrication

    8 Connecting to Panasonic Industrial Devices SUNX PLCs Cable Fabrication  RS232 Communication Cable • Tool port PT (COM1/COM2) Signal Pin No. Pin No. Signa l D-Sub 5Pin Mini 9Pin (Female) (Female) • CPU port PT (COM1/COM2) PLC FP0 CPU Signal Pin No.
  • Page 167 8 Connecting to Panasonic Industrial Devices SUNX PLCs  RS422 Communication Cable • FP3 RS422 programming port PT (COM2) Signal Pin No. Pin No. Signal SDB+ RXDB TXDB RDB+ D-Sub RXDA SDA- D-Sub 9Pin TXDA RDA- 15Pin (Female) (Female) RTA+ Terminal R1 Terminal R2 CTS+...
  • Page 168 8 Connecting to Panasonic Industrial Devices SUNX PLCs NB-series Programmable Terminals Host Connection Manual (V108)

  • Page 169: Connecting To Allen-Bradley (Rockwell) Plc

    Connecting to Allen-Bradley (Rockwell) PLC This section describes the connection to Allen-Bradley PLC. 9-1 Serial Port Communication and Ethernet ......9-2 9-1-1 Serial Port .

  • Page 170: Serial Port Communication And Ethernet

    9 Connecting to Allen-Bradley (Rockwell) PLC Serial Port Communication and Ethernet 9-1-1 Serial Port Series Link Module Driver MicroLogix MicroLogix 1500 Channel 1 AB SLC500/MicroLogix Series (DF1) (1764-LRP) MicroLogix 1000 Channel 0 MicroLogix 1200 AIC + Advanced Interface MicroLogix 1500 Converter1761-NET-AIC (1764-LSP, 1764-LRP) MicroLogix 1400...

  • Page 171: Ethernet

    9 Connecting to Allen-Bradley (Rockwell) PLC 9-1-2 Ethernet Series Link Module Driver MicroLogix MicroLogix 1100 Ethernet port on CPU Unit AB MicroLogix Series Ethernet (TCP Slave) MicroLogix 1400 MicroLogix 1000 Communication Module 1761-NET-ENI MicroLogix 1200 MicroLogix 1400 MicroLogix 1500 NB-series Programmable Terminals Host Connection Manual (V108)

  • Page 172: Communication Parameters And Cable Fabrication

    9 Connecting to Allen-Bradley (Rockwell) PLC Communication Parameters and Cable Fabrication 9-2-1 Serial Port Series Link Module COMM Type Parameter Cable MicroLogix MicroLogix 1500 Channel 1 RS232C Refer to Section 9-3 Self-made cable (1764-LRP) required MicroLogix 1000 Channel 0 MicroLogix 1200 AIC +Advanced MicroLogix Interface Converter...

  • Page 173: Communication Parameter Setting

    9 Connecting to Allen-Bradley (Rockwell) PLC Communication Parameter Setting 9-3-1 When Using AB SLC500/MicroLogix Series (DF1) Protocol PT Settings MicroLogix default communication parameters: 19200 (Baud Rate), 8 (Data Bit), none (Parity), 1 (Stop Bit) and 0 (Station No.) SLC500 default communication parameters: 9600 (Baud Rate), 8 (Data Bit), none (Parity), 1 (Stop Bit) and 0 (Station No.) NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 174 9 Connecting to Allen-Bradley (Rockwell) PLC PLC Settings • RSLogix500 software setting (Take MicroLogix 1500 as example) Select the “DF1 Full Duplex” for Driver option and “CRC” for the [Error Detection] option in the Channel Configuration dialog box of the software. And the register setting is also available.

  • Page 175: When Using Ab Compactlogix/Controllogix Series (Df1) Protocol

    9 Connecting to Allen-Bradley (Rockwell) PLC 9-3-2 When Using AB CompactLogix/ControlLogix Series (DF1) Protocol PT Settings CompactLogix/ControlLogix default communication parameters: 19200 (Baud Rate), 8 (Data Bit), none (Parity), 1 (Stop Bit) and 0 (Station No.) NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 176 9 Connecting to Allen-Bradley (Rockwell) PLC PLC Settings • RSLogix5000 Software Settings Note “DF1 Point to Point” is selected as Protocol; “CRC” is selected as Error Detection and “Enable Duplicate Detection” is not checked. Set the parameters of the communications in [Controller Properties] dialog box. Define the tag and set the data types, then select “Controller Tags”...
  • Page 177 9 Connecting to Allen-Bradley (Rockwell) PLC Note The software must be changed to “Offline” status. • Setting Example Create a new tag with Name of a and Data Type of INT. Note 1 When selecting the Data Type, note that the CompactLogix/ControlLogix protocol supports only 3 Data Types such as INT, BOOL, and REAL.
  • Page 178 9 Connecting to Allen-Bradley (Rockwell) PLC After defining the tags, you also need to make the mapping between the Name and the File Number. Note 1 The file number should be unique, i.e., the same file number cannot be mapped on the different file names.

  • Page 179: Ab Micrologix Series Ethernet(Tcp Slave)

    9 Connecting to Allen-Bradley (Rockwell) PLC 9-3-3 AB MicroLogix Series Ethernet(TCP Slave) PT Settings The Network Settings of PT are as shown below. 9-11 NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 180 9 Connecting to Allen-Bradley (Rockwell) PLC PLC Settings The PLC Settings when using Communication Protocol AB MicroLogix Series Ethernet (TCP Slave) are as shown below.  Using Ethernet port on CPU Unit Start-up RSLogix 500 and double-click [Channel Configuration]. Select the tab of a channel to which Ethernet port is allocated. Set the IP Address to the same address as the PT settings.
  • Page 181 9 Connecting to Allen-Bradley (Rockwell) PLC  Using the Communication Module Start-up ENI/ENIW Utility. Set the IP Address to the same parameters as the PT settings. Click ENI ROM to save the settings. 9-13 NB-series Programmable Terminals Host Connection Manual (V108)

  • Page 182: Supported Registers

    9 Connecting to Allen-Bradley (Rockwell) PLC Supported Registers Additional Information FFF refers to the File Number and DDD refers to the Variable No. Address. AB SLC500/MicroLogix Series (DF1) Driver Device Bit Address Word Address Format Notes Internal Auxiliary Nodes B3: 0.0~255.15 ------ DDD.DD Internal Auxiliary Nodes...
  • Page 183 9 Connecting to Allen-Bradley (Rockwell) PLC AB CompactLogix/ControlLogix Series (DF1) Driver Device Bit Address Word Address Format Note Integer data file bit level N_BOOL000000.00~254254.15 ------ FFFDDD.DD Bit data file B_BOOL000000~254991 ------ FFFDDD Floating point data file ------ REAL000000~254254 FFFDDD Integer data file ------ INT000000~254254 FFFDDD...

  • Page 184: Cable Fabrication

    9 Connecting to Allen-Bradley (Rockwell) PLC Cable Fabrication Serial Communication Cable  RS232 Communication Cable for MicroLogix • Communication Cable (Cat.No.: 1761-CBL-PM02) manufactured by Rockwell Automation, Inc. PT (COM1/COM2) Signal Pin No. Pin No. Signal D-Sub 9Pin D-Sub (Female) 9Pin (Female) •...
  • Page 185 Connecting to PLC of GE Fanuc Automation Inc. This section describes the connection to PLC of GE Fanuc Automation Inc. 10-1 Serial Port Communication .........10-2 10-2 Serial Port Communication Parameters and Cable Fabrication .

  • Page 186: Serial Port Communication

    10 Connecting to PLC of GE Fanuc Automation Inc. 10-1 Serial Port Communication Series Link Module Driver GE Fanuc Series 90-30 IC693CPU311 Serial Connector on Power Supply GE Fanuc Series SNP IC693CPU313 (Break-free mode)* IC693CPU321 IC693CPU323 IC693CPU331 IC693CPU341 IC693CPU350 IC693CPU351 IC693CPU352 IC693CPU360 IC693CPU363...

  • Page 187: Serial Port Communication Parameters And Cable Fabrication

    10 Connecting to PLC of GE Fanuc Automation Inc. 10-2 Serial Port Communication Parameters and Cable Fabrication Series Link Module COMM Type Parameter Cable GE Fanuc IC693CPU374 RS422 on the RS232 Refer to Section 10-3 Self-made cable Series 90-30 CPU unit required RS422 IC693CMM311...

  • Page 188: Serial Port Communication Parameter Setting

    10 Connecting to PLC of GE Fanuc Automation Inc. 10-3 Serial Port Communication Parameter Setting PT Settings Default communication parameters for GE Fanuc Series SNP Protocol: 19200 (Baud Rate), 8 (Data Bit), odd (Parity), 1 (Stop Bit), 1 (Station No.). RS232 Communication RS422 Communication 10-4...
  • Page 189 10 Connecting to PLC of GE Fanuc Automation Inc. Default communication parameters for GE SNP-X Protocol: 19200 (Baud Rate), 8 (Data Bit), odd (Parity), 1 (Stop Bit), 1 (Station No.). RS232 Communication RS422 Communication Note The maximum baud rate for the communication with serial port of GE Host is 19200 bps. PLC Settings Take the settings of IC693CPU331 and IC693CMM311 as example: Select the PLC and devices with the correct models in the Proficy Machine Edition window and you can...
  • Page 190 10 Connecting to PLC of GE Fanuc Automation Inc. Note "SNP Only" should be selected during the configuration Mode setting. 10-6 NB-series Programmable Terminals Host Connection Manual (V108)

  • Page 191: Supported Registers

    10 Connecting to PLC of GE Fanuc Automation Inc. 10-4 Supported Registers Device Bit Address Word Address Format Notes System SC 01~32 ------ System SB 01~32 ------ System SA 01~32 ------ System S 01~32 ------ Temporary T 001~256 ------ Internal M 0001~4096 ------ DDDD...

  • Page 192: Cable Fabrication

    10 Connecting to PLC of GE Fanuc Automation Inc. 10-5 Cable Fabrication  RS232 Communication for GE Fanuc Series SNP Communicating with PT by directly using the communication cable provided by GE  RS232 Communication for VersaMax Series PT (COM1/COM2) VersaMax series PLC Signal Pin No.
  • Page 193 10 Connecting to PLC of GE Fanuc Automation Inc.  RS422 Communication Cable for Communication Module CMM311 PT (COM2) CMM311 port2 terminal Signal Pin No. Pin No. Signal SDB+ RDB+ D-Sub SDA- 9Pin RDA- D-Sub (Female) 25Pin (Female) Terminal R1 RTSA CTSA Terminal R2...
  • Page 194 10 Connecting to PLC of GE Fanuc Automation Inc. 10-10 NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 195 Connecting to Keyence PLCs This section describes methods to connect to Keyence PLCs. 11-1 Serial Port and the Ethernet ........11-2 11-2 Communication Setting and Cable Connection .

  • Page 196: Serial Port And The Ethernet

    11 Connecting to Keyence PLCs 11-1 Serial Port and the Ethernet Series Link Module Driver KV-3000 CPU RS232 Port on CPU Unit KeyenceKV-3000 3000 KV-5000 CPU Ethernet Port on CPU Unit KeyenceKV-5000 EtherNetSlave 5000 * This Protocol supports Multiple Station No. 11-2 NB-series Programmable Terminals Host Connection Manual (V108)

  • Page 197: Communication Setting And Cable Connection

    11 Connecting to Keyence PLCs 11-2 Communication Setting and Cable Connection Communication Series Link Module Set Value Cable Type KV-3000 KV-3000 CPU RS232 Port on RS232 Refer to 11-3 Self-made connecting CPU Unit cable required. Communication Setting KV-5000 KV-5000 CPU Ethernet Port on Refer to 11-3 Network cable...

  • Page 198: Communication Setting

    11 Connecting to Keyence PLCs 11-3 Communication Setting 11-3-1 When Using Keyence KV-3000 Communication Protocol PT Settings PT default communication parameters: 9600bps (Baud Rate), 8 (Data Bit), even (Parity Check) and 1 (Stop Bit) As showed in the right of dialog box as below, PLC Communication Time Out, Max interval of word block pack, Max interval of bit block pack, Max word block package are varied with PLC protocol.

  • Page 199: When Using Keyence Kv-5000 Ethernetslave Communication Protocol

    11 Connecting to Keyence PLCs 11-3-2 When Using Keyence KV-5000 EtherNetSlave Communication Protocol PT Setting The PT Network Setting is shown as follows. 11-5 NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 200 11 Connecting to Keyence PLCs PLC Setting PLC Setting when using Keyence KV-5000 EtherNetSlave Protocol is shown as below. Double-click the [Ethernet] - [KV-5000] under [Unit Configuration] in KV-STUDIO Software. Open the [Unit Editor] dialog box. Set the IP address and Port Number (upper link) to the same parameters as the PT setting. 11-6 NB-series Programmable Terminals Host Connection Manual (V108)

  • Page 201: Supported Registers

    11 Connecting to Keyence PLCs 11-4 Supported Registers KV-3000 Device Bit Address Word Address Format Notes Input, Output, Internal R0-999.15 ------ DDD.DD Relay Internal auxiliary Relay MR0-999.15 ------ DDD.DD Control Relay CR0-39.15 ------ DD.DD Latch Relay LR0-999.15 ------ DDD.DD Data Memory ------ DM0-65534 DDDDD...

  • Page 202: Cable Connection

    11 Connecting to Keyence PLCs 11-5 Cable Connection KV-3000 Series RS232 Communication Cable  RS-232 Communication Cable PT (COM1/COM2) Signal Pin No. Pin No. Signal D-Sub RJ-12 9 PIN (Female) (Female) KV-5000 Series Ethernet Communication Cable Use Twisted Pair Cable to connect. Refer to Ethernet communication specifications in A-1-3 Communi- cation Specifications in the NB-series Programmable Terminals Setup Manual (Cat.
  • Page 203 12-3-1 When using OMRON G9SP Communication Protocol ....12-4 12-4 Supported Registers ..........12-6 12-5 Cable Connection .

  • Page 204: Serial Port

    12 Connecting to OMRON Safety Controller 12-1 Serial Port Series Destination Driver G9SP G9SP-N10S RS-232C Connector of Option Board OMRON G9SP G9SP-N10D mounted to the Safety Controller* G9SP-N20S * Model CP1W-CIF01 is needed. 12-2 NB-series Programmable Terminals Host Connection Manual (V108)

  • Page 205: Communication Parameters And Cable Fabrication

    12 Connecting to OMRON Safety Controller 12-2 Communication Parameters and Cable Fabrication Communication Series Destination Set Value Cable Type G9SP G9SP RS-232C Connector of Option RS232 Refer to 12-3 XW2Z-200T 2m Board mounted on the Safety XW2Z-500T 5m Communication Controller...

  • Page 206: Communication Parameter Setting

    12 Connecting to OMRON Safety Controller 12-3 Communication Parameter Setting 12-3-1 When using OMRON G9SP Communication Protocol PT Settings PT default communication parameters: 9600bps (Baud Rate), 8 (Data Bit), even number (Parity Check) and 1 (Stop Bit) As showed in the right of dialog box as follow, the default values are generally selected to PLC Communication Time Out, Max interval of word block package, Max interval of bit block pack, and Max size of word block package.
  • Page 207 12 Connecting to OMRON Safety Controller PLC Settings When OMRON G9SP Communication Protocol is used, the setting of PLC is not required. Precautions for Correct Use Precautions for Correct Use For the specification of G9SP protocol, write occurs when the NB series startup.

  • Page 208: Supported Registers

    12 Connecting to OMRON Safety Controller 12-4 Supported Registers Transmission Data (G9SP Series  PT) Bit Address Word Address Device Notes (format DD) (format DD) Optional Communications Transmission CTD 0-31 ----- Data Safety Input Terminal Data Flags SID 0-47 -----...

  • Page 209: Cable Connection

    12 Connecting to OMRON Safety Controller 12-5 Cable Connection  RS-232 Communication Cable Use either of cables recommended for the communication cable. XW2Z-200T (cable length 2m) manufactured by OMRON XW2Z-500T (cable length 5m) manufactured by OMRON 12-7 NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 210 12 Connecting to OMRON Safety Controller 12-8 NB-series Programmable Terminals Host Connection Manual (V108)

  • Page 211: Revision History

    Revision History A manual revision code appears as a suffix to the catalog number on the front cover of the manual. Cat. No. V108-E1- Revision code Revision code Date Revised content October 2011 Original production April 2012 Adding descriptions of Modbus network interface communication and Modbus protocol.
  • Page 212 Revision-2 NB-series Programmable Terminals Host Connection Manual (V108)
  • Page 214 The Netherlands Hoffman Estates, IL 60169 U.S.A. Tel: (31)2356-81-300/Fax: (31)2356-81-388 Tel: (1) 847-843-7900/Fax: (1) 847-843-7787 © OMRON Corporation 2011-2017 All Rights Reserved. OMRON (CHINA) CO., LTD. OMRON ASIA PACIFIC PTE. LTD. In the interest of product improvement, Room 2211, Bank of China Tower, No.

This manual is also suitable for:

Nb5q-tw**b seriesNb7w-tw**b seriesNb10w-tw01b

Table of Contents
