Using Machine Navigator
78
• Set No. of contents to 3. (The 3 represents two states in which an alarm
occurs and one state in which no alarm occurs.)
• Select Switch contents linking with alarm. (Default: Selected)
• Set Contents No. when alarm does not occur to 0.
• Set Address for switching contents to $W100.
If the contents number is not displayed in the tree on the left of the dialog
box, click after inputting the set values.
5. Set the contents. (No setting needs to be made for 0 because for Contents
No. when alarm does not occur is set.)

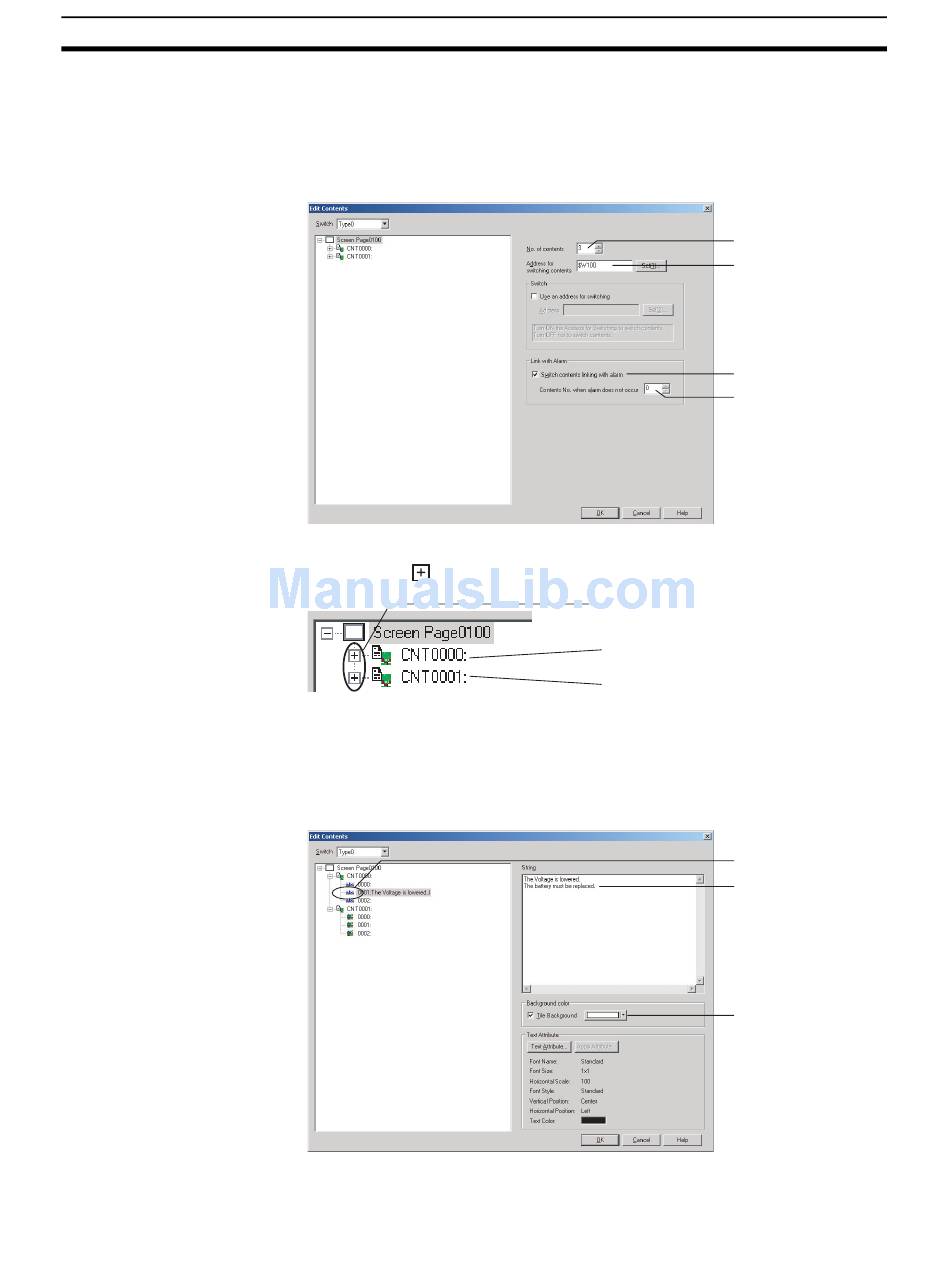

a. Click contents No. 1 for CNT0000 to input the character string for the
countermeasure.
b. Set the background color to white.
Section 4-20
Set to 3.
Set to $W100.
Select
Set to 0.
Click here.
ID No. for character string
contents display
ID No. for image contents display
1. Click here.
2. Input the
countermeasure.
3. Set white.
