Using Screens from Other Projects

1,2,3...
4-2

Using Screens from Other Projects

1,2,3...
50
Procedure

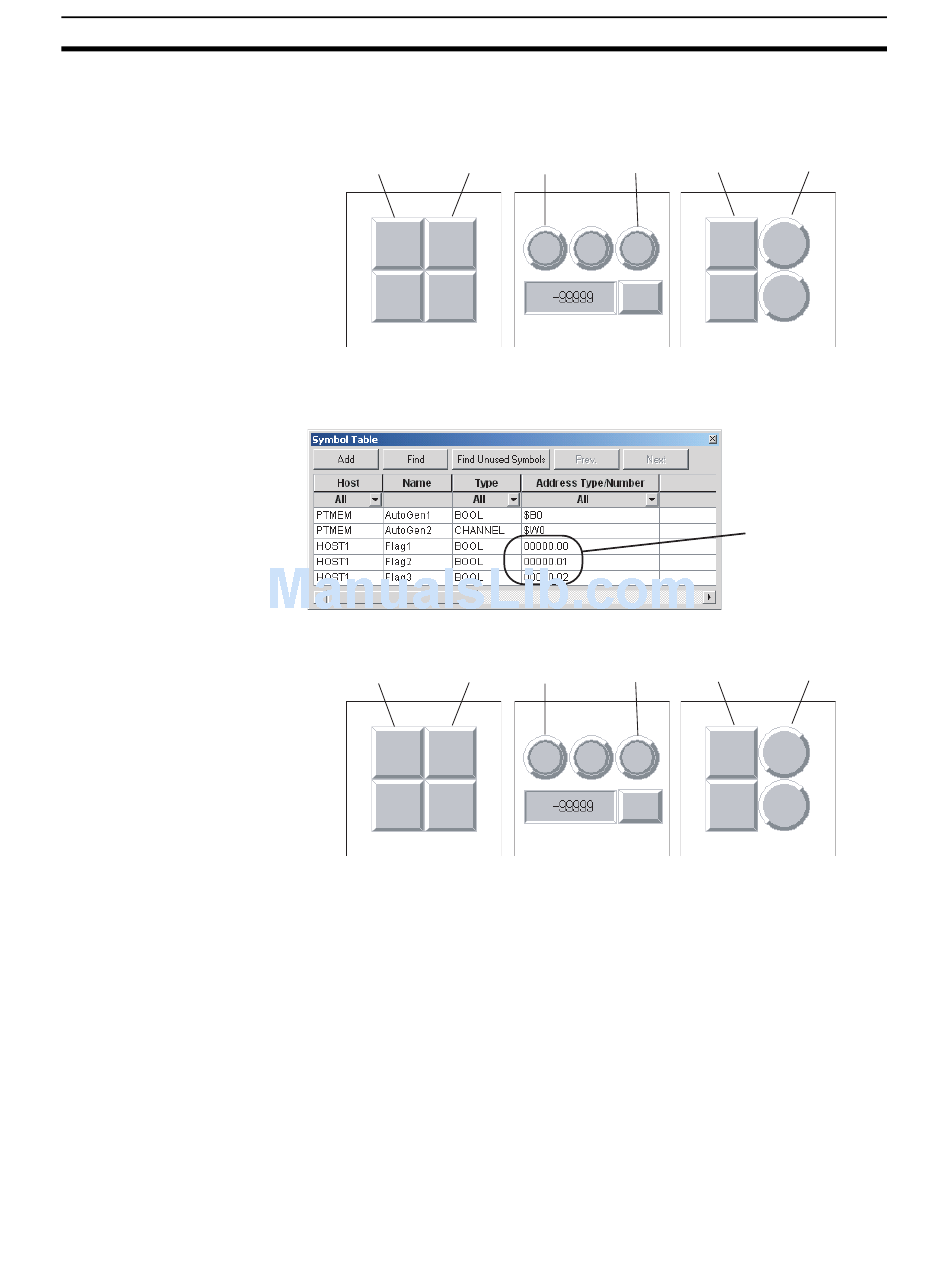

1. Input the symbol names for the communications address setting locations
for the functional object.
HOST1: Flag 1 HOST1: Flag 2 HOST1: Flag 1 HOST1: Flag 3 HOST1: Flag 2 HOST1: Flag 3
Screen 1
2. Set or change the addresses for the symbols input from the symbol table
in step 1.
3. After the addresses have been set, they will be reflected in all the function-
al objects that reference the symbols.
HOST1: 0.00 HOST1: 0.01
Screen 1
Screens from different projects can be copied between project workspaces if
more than one copy of CX-Designer is running at the same time.
If there is an alarm/event display object, data log graph, or other functional
object on the copied screen that accesses common settings, the common set-
tings are automatically copied as well. This means that settings do not need to
be adjusted to use the same common settings in both the source and destina-
tion project.
Procedure
1. Start two copies of CX-Designer and open the source project on one copy
and the destination project on the other copy. Open the project workspace
Screen/Sheet Tab Page.
Screen 3
Screen 2
HOST1: 0.00 HOST1: 0.02 HOST1: 0.01
Screen 3
Screen 2
Section 4-2
Afterwards set
the addresses in
the symbol table.
HOST1: 0.02
