Using Machine Navigator
Note

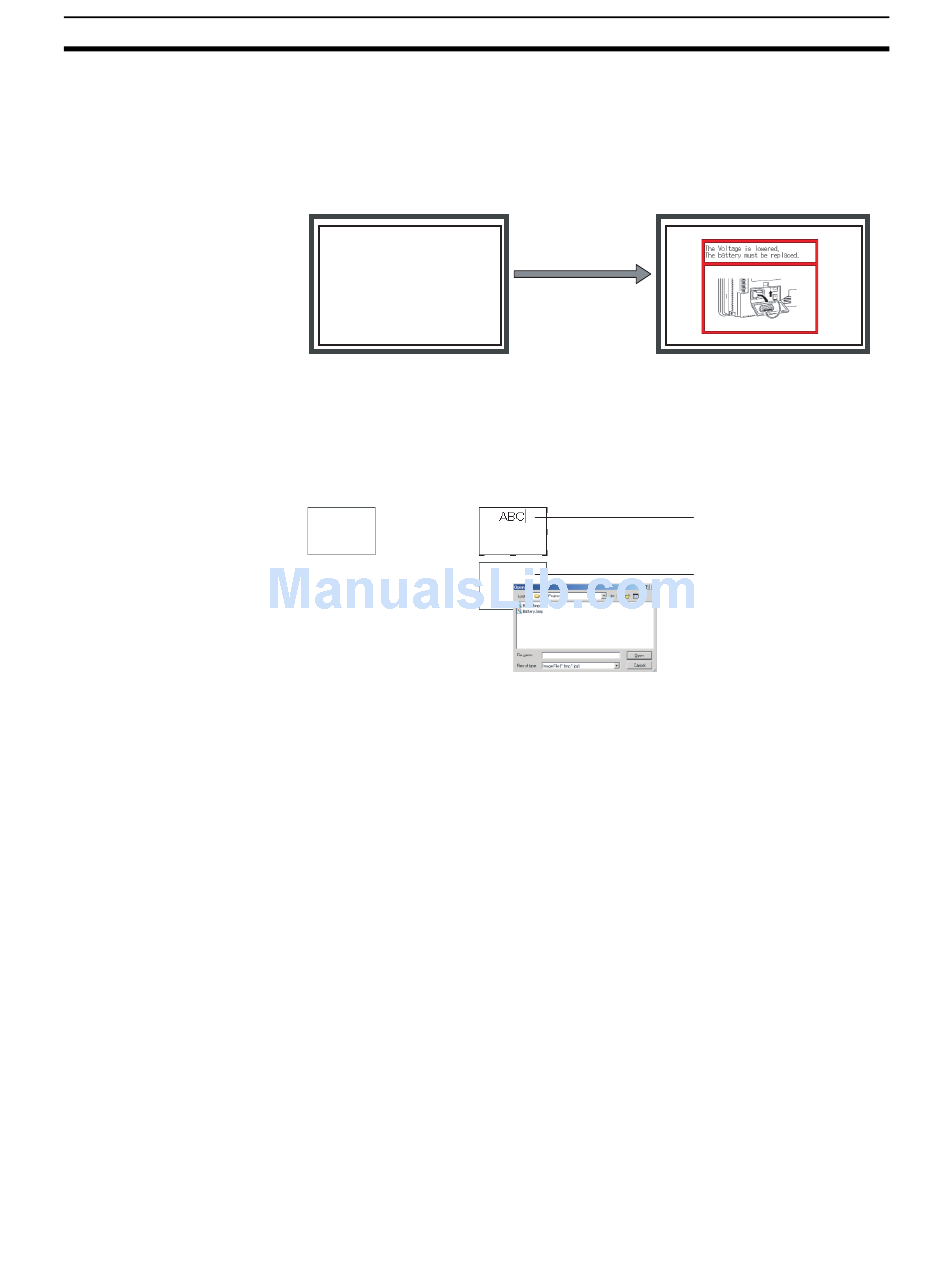

Using the Machine Navigator function, popup screen 100 will be displayed
when HOST1:100.00 turns ON at the PT, and the contents of contents No. 1
will be displayed.
Similarly, popup screen 100 will be displayed when HOST1:100.01 turns ON
at the PT, and the contents of contents No. 2 will be displayed.
NS-series PT
Character strings and image files can be set by selecting the contents display
and pressing the Space Key.
Press the Space Key.
In addition, specifying a contents number in the Edit Contents Toolbar will
cause the contents for that number to be displayed. This makes it possible to
set character strings and image files for individual contents numbers without
having to open the Edit Contents Dialog Box.
The Edit Contents Dialog Box can also be displayed by selecting PT - Edit
Contents.
HOST1:100.00 or
HOST1:100.01 turns ON.
Popup screen 100 is automatically
displayed, and contents related to
the alarm are displayed in the
contents display.
Section 4-20
For a contents display showing a
character string, input the
character string to be displayed.
For a contents display showing
an image, select the image file.
81
