User Interface
Contents No.
Output Window
40

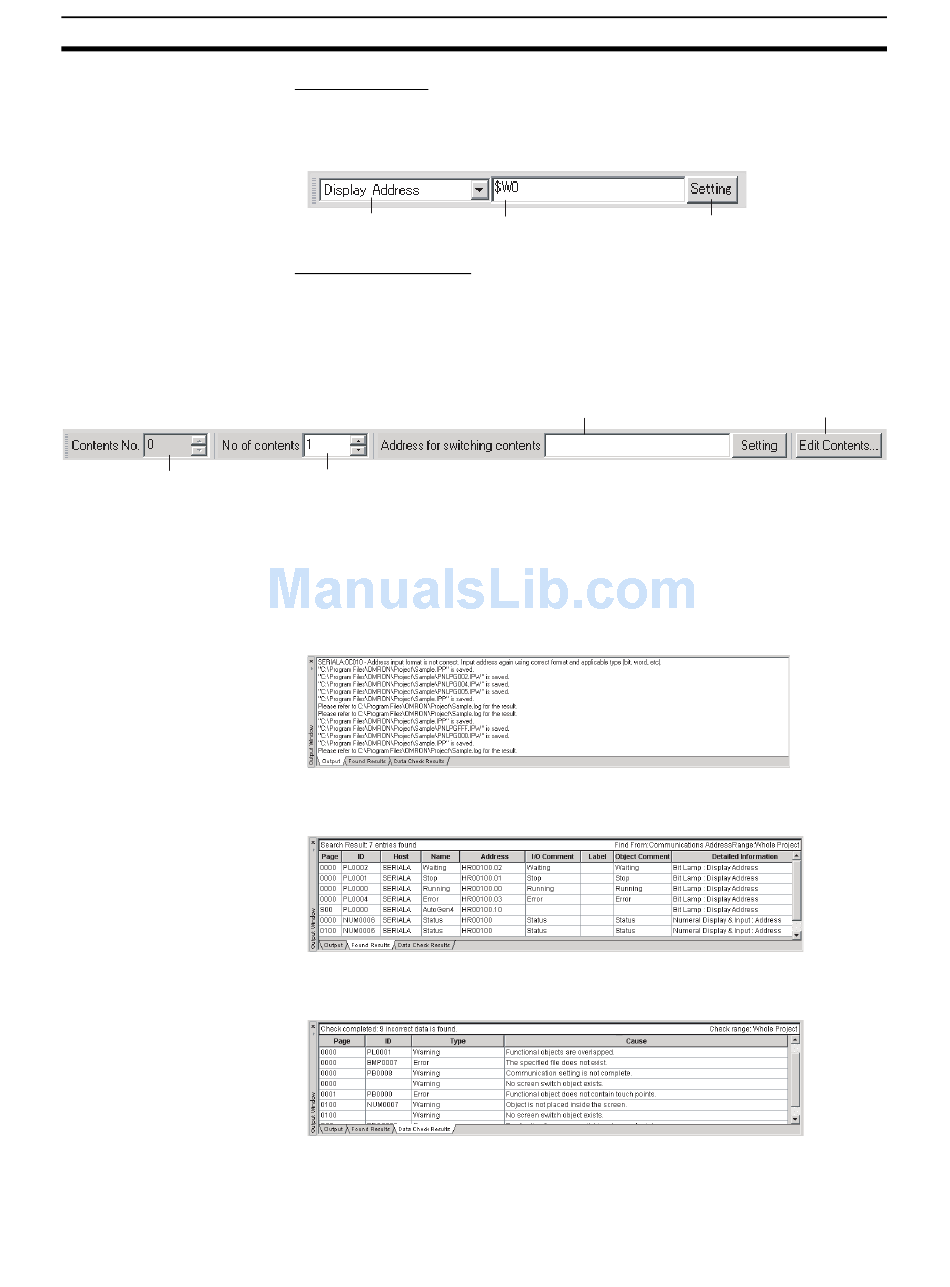

■ Address Toolbar
Displays the setting functions for the addresses of the functional objects in a
toolbar. Select the functional object for which the address is to be set and set
the address.
Address Selection
■ Edit Contents Toolbar
Sets the basic contents change settings required for using the Machine Navi-
gator. By changing the contents number, the display can be changed to the
contents set for that contents number.
Click the Edit Contents Button to display the Edit Contents Dialog Box.
Detailed settings can then be made for changing contents.
No. of contents
The Output Window displays various data such as CX-Designer search, data
check, and other processing results and error details.
The Output Window can be displayed and hidden by selecting View - Win-
dow - Output Window.
The Output Tab Page displays the CX-Designer operating status and error
information.
The Found Results Tab Page displays the search and replace results.
Click an item to display and select the corresponding object.
The Data Check Results Tab Page displays the data check results.
Click an item to display and select the corresponding object.
Address Edition
Address for switching contents
Section 3-3
Address Settings
Edit Contents Button
