Creating Polygonal Lamps

Note

4-18 Creating Polygonal Lamps

Procedure
1,2,3...
In the Color/Shape Tab Page, the same settings will be set as for the original
bit lamp.
The following functional objects can be converted to Multifunction Objects:
ON/OFF buttons, word buttons, command buttons, bit lamps, and word lamps.

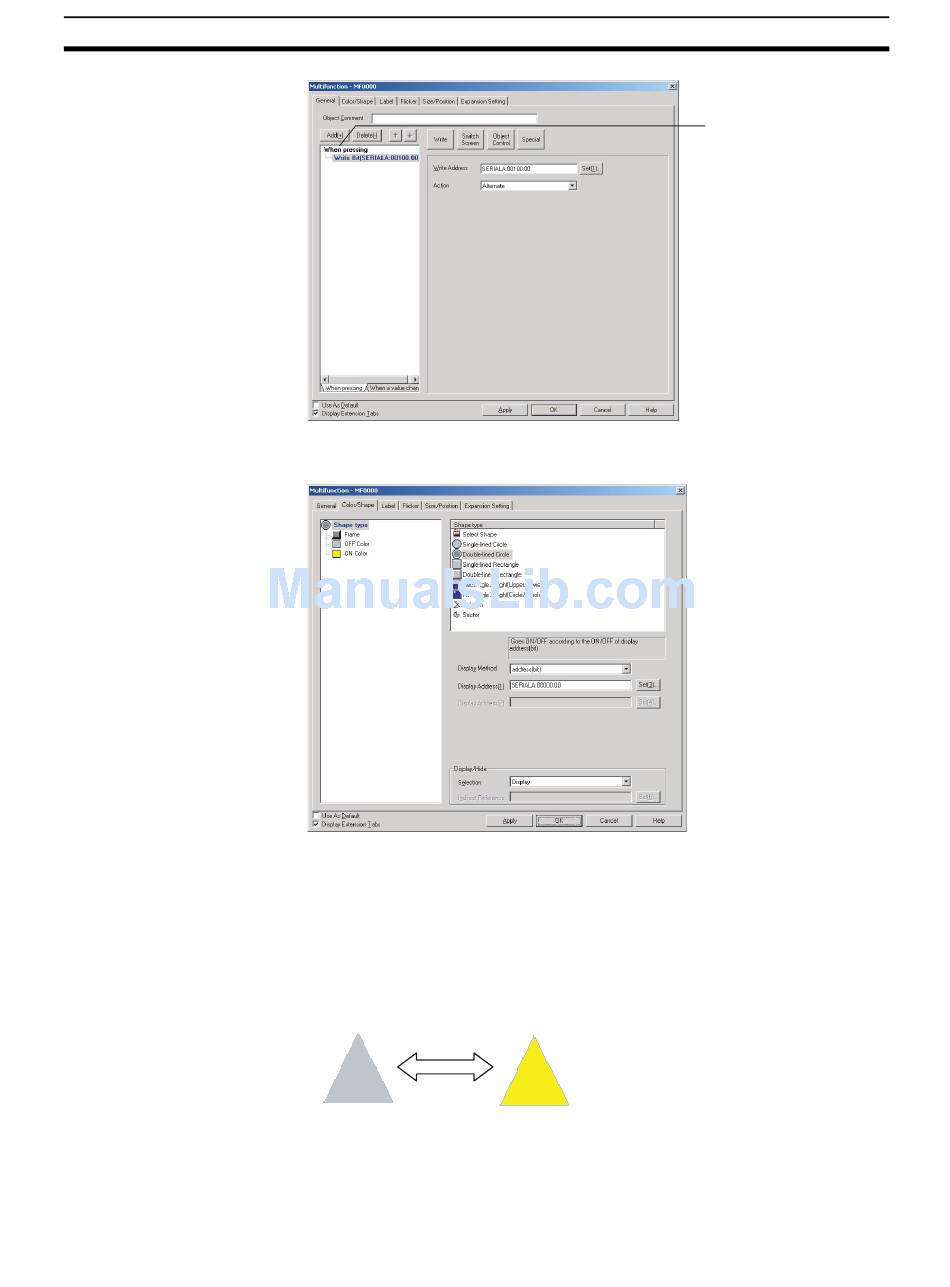

Polygonal lamps can be created by using Multifunction Objects. This example
procedure shows how to create a polygonal lamp that is turned ON and OFF
by turning ON and OFF HOST1:0.0.
HOST1:0.0 : OFF
1. Create a Multifunction Object and open the Property Setting Dialog Box.
The General Tab Page will be displayed.
HOST1:0.0 : ON
Section 4-18
Set the operation for when the
Multifunction Object is pressed.
The settings will be the same for
the Multifunction Object as for the
bit lamp before the conversion.
