Executing Multiple Functions with a Single Operation

4-16 Executing Multiple Functions with a Single Operation

Procedure
1,2,3...
70
With Multifunction Objects, multiple processes can be set and can then be
executed with just the press of a button. Processes that could previously be
executed only by using macros can now be easily executed by making set-
tings based on properties.
Previous
Executed by macro
This procedure describes how to use a Multifunction Object to perform the fol-
lowing operations.
• Turn ON $B100.
• Set SERIALA:DM0 to 123.
• Switch to screen 100.
1. Create a Multifunction Object and open the Property Setting Dialog Box.
2. In the General Tab Page, open the When pressing Tab Page and select the
first item in the action item list.
3. Click the Write Button and select Write Bit from the menu. The properties
for the bit setting will be displayed.
4. Set $B100 for the write address, and SET for the action.
5. Click the Add Button to add the new action item.
6. Click the Write Button and select Write Word from the displayed menu.
7. Set SERIALA: DM0 for the write address, Set Value for the action, and 123
for the set value.

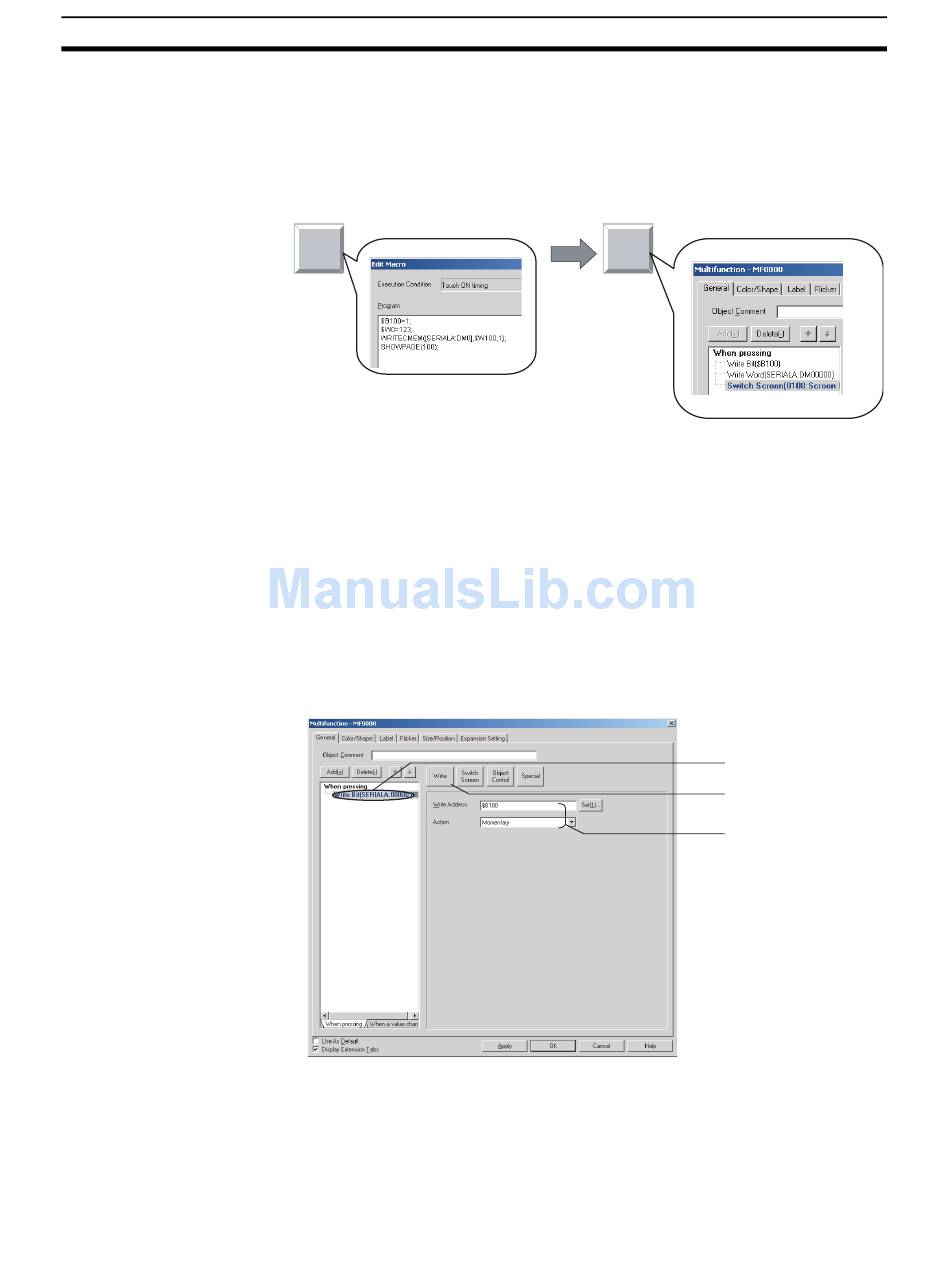

Multifunction Object
Easy property settings
Executed in order of settings.
1. Click the first item.
2. Click the Write Button
and select Write Bit.
3. Make the following settings:
Write Address: $B100
●
● Action: SET
Section 4-16
