Creating Screens Using Symbols
4-1-2

Reusing Existing Projects in Another System

1,2,3...
4-1-3 Copying and Pasting Symbols Between the CX-Programmer and
the CX-Designer
4. When the changes have been completed, they will be reflected in all func-
tional objects that use that symbol.
HOST1: 0.0 HOST1: 0.0
Screen 1
Screen 2
HOST1: 10.0
HOST1: 10.0
Screen 2
Screen 1

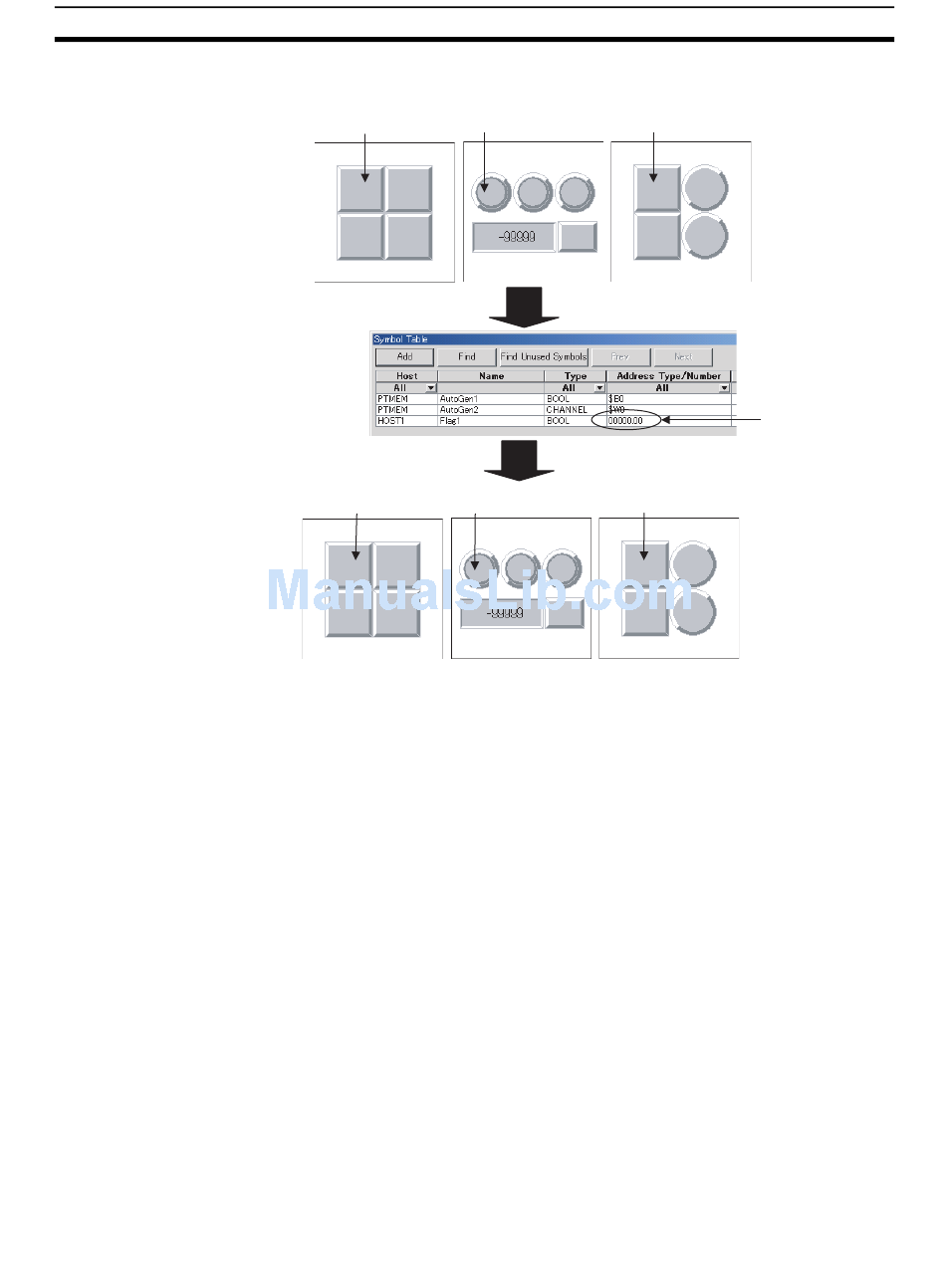

When using existing projects in another system, the addresses allocated for
objects can be easily changed simply by changing the addresses in the sym-
bol table.
Procedure
1. Change the allocated address for each symbol in the symbol table.
2. To replace addresses in the symbol table, right-click the mouse and select
Replace from the pop-up menu that is displayed.
Both CX-Designer and CX-Programmer have symbol tables and can share
their symbol data.
This means that CX-Programmer symbols can be copied to the CX-Designer.
And symbols added using the CX-designer can be copied to the CX-Program-
mer.
Section 4-1
HOST1: 0.0
Screen 3
Change the
address
in the symbol
table to 10.0.
HOST1: 10.0
Screen 3
