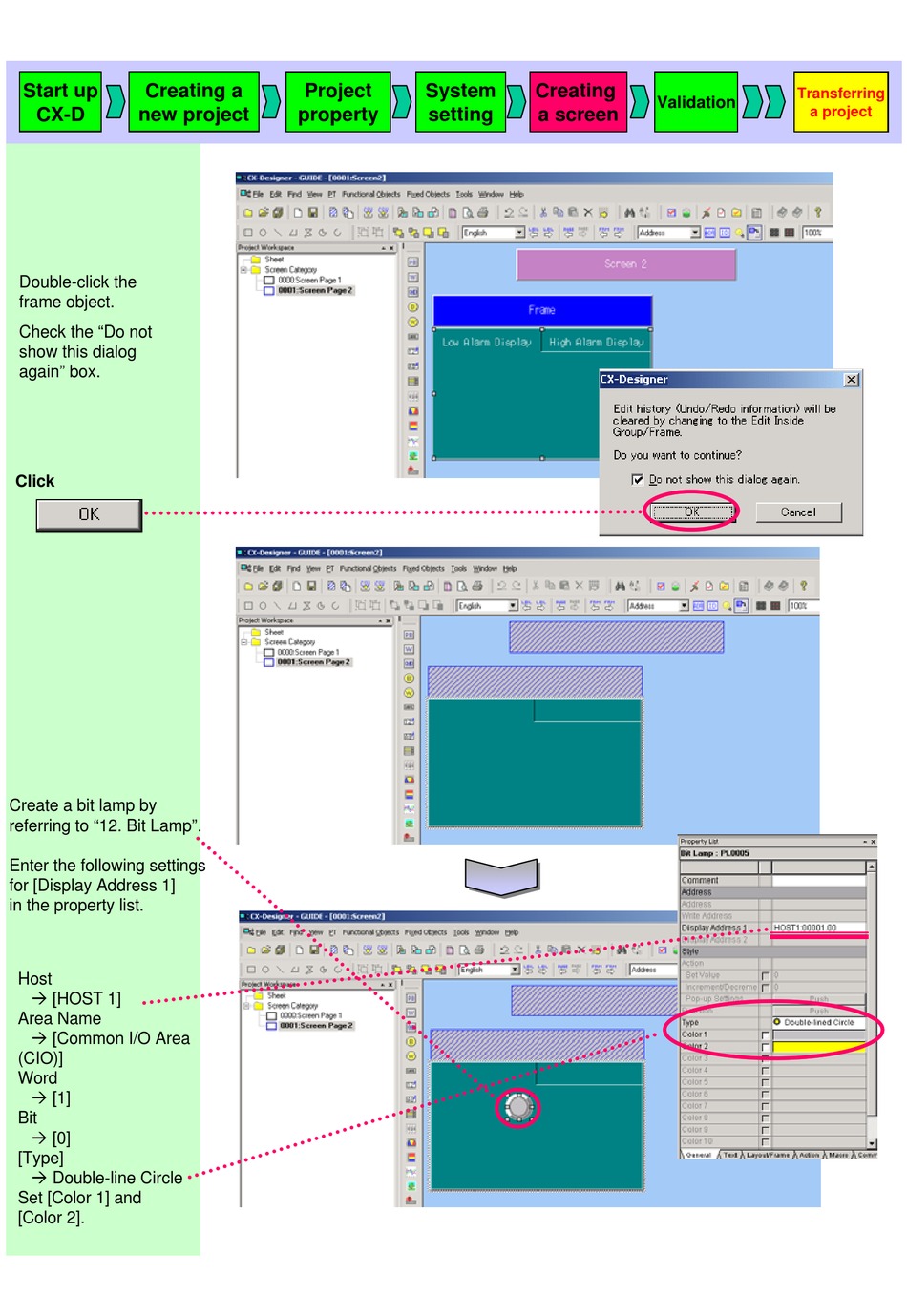

Omron CX-DESIGNER - INTRODUCTION GUIDE Introduction Manual page 44

Start up Creating a
CX-D new project
Double-click the
frame object.
Check the "Do not
show this dialog
again" box.
Click
Create a bit lamp by
referring to "12. Bit Lamp".
Enter the following settings
for [Display Address 1]
in the property list.
Host
! [HOST 1]
Area Name
! [Common I/O Area
(CIO)]
Word
! [1]
Bit
! [0]
[Type]
! Double-line Circle
Set [Color 1] and
[Color 2].
Project System
property setting
Creating
Validation
a screen
Transferring
a project
