On/Off Button - Omron CX-DESIGNER - INTRODUCTION GUIDE Introduction Manual

Start up Creating a
CX-D new project

10. ON/OFF Button

10. ON/OFF Button

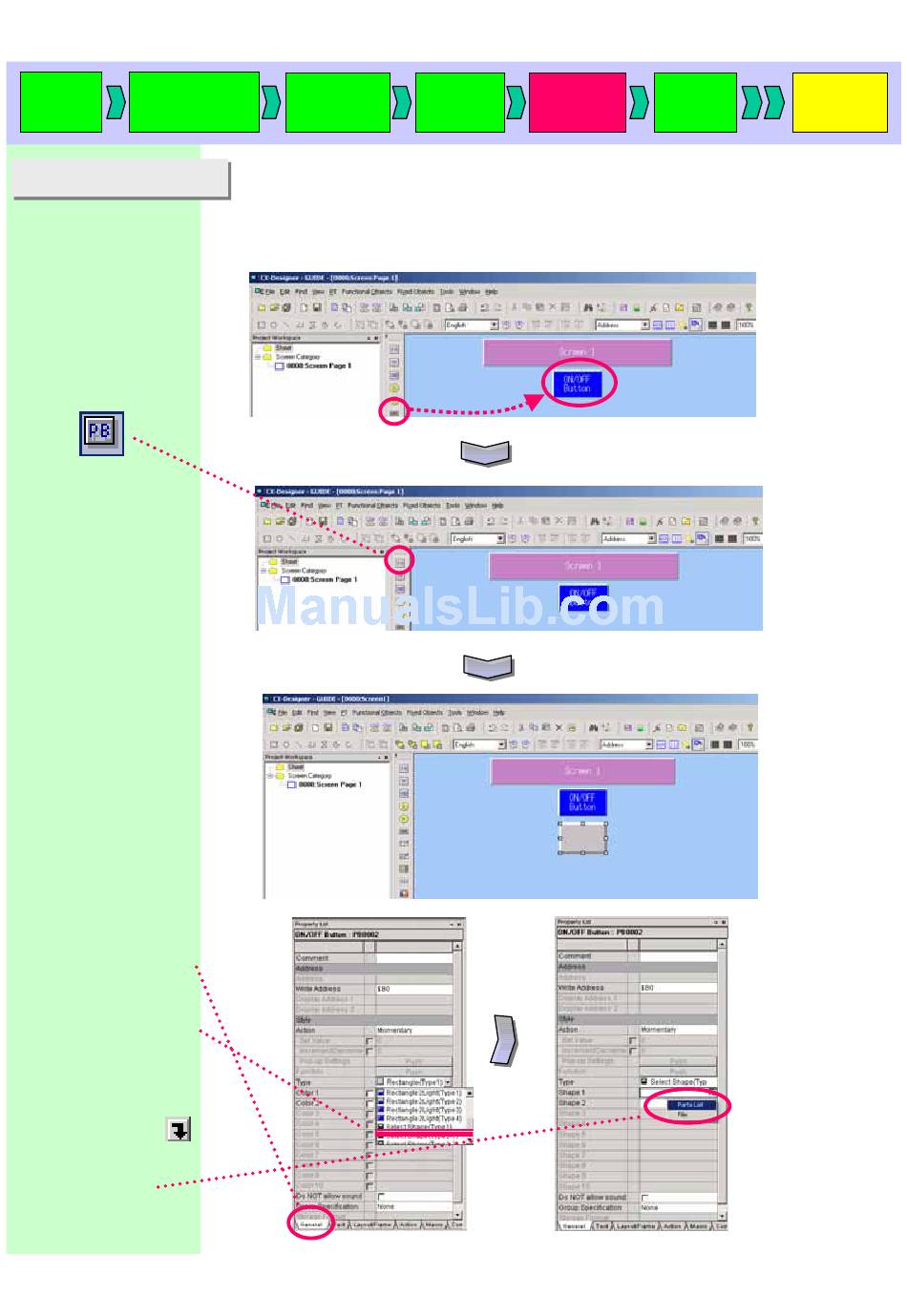

Create a text object by
referring to a "Display a
Text".
Click the [ON/OFF] icon
on the list.
Drag and drop a mouse
to make a shape, same
as performed for the text
object on page 19.
Select the [General] tab.
Click [Type] and select
"Select Shape (Type 1)".
Click "Shape 1" and
Select "Parts List"
Project
property
Creating a ON/OFF button on the screen.
ON/OFF Button has a function that goes ON/OFF according to the ON/OFF states
of specified address (bit) by operation such as touch switch input.
In this manual, a button is used as ON/OFF button and Occurred/Cancelled
button of virtual alarms.
