Omron CX-DESIGNER - INTRODUCTION GUIDE Introduction Manual page 65

Start up Creating a
CX-D new project

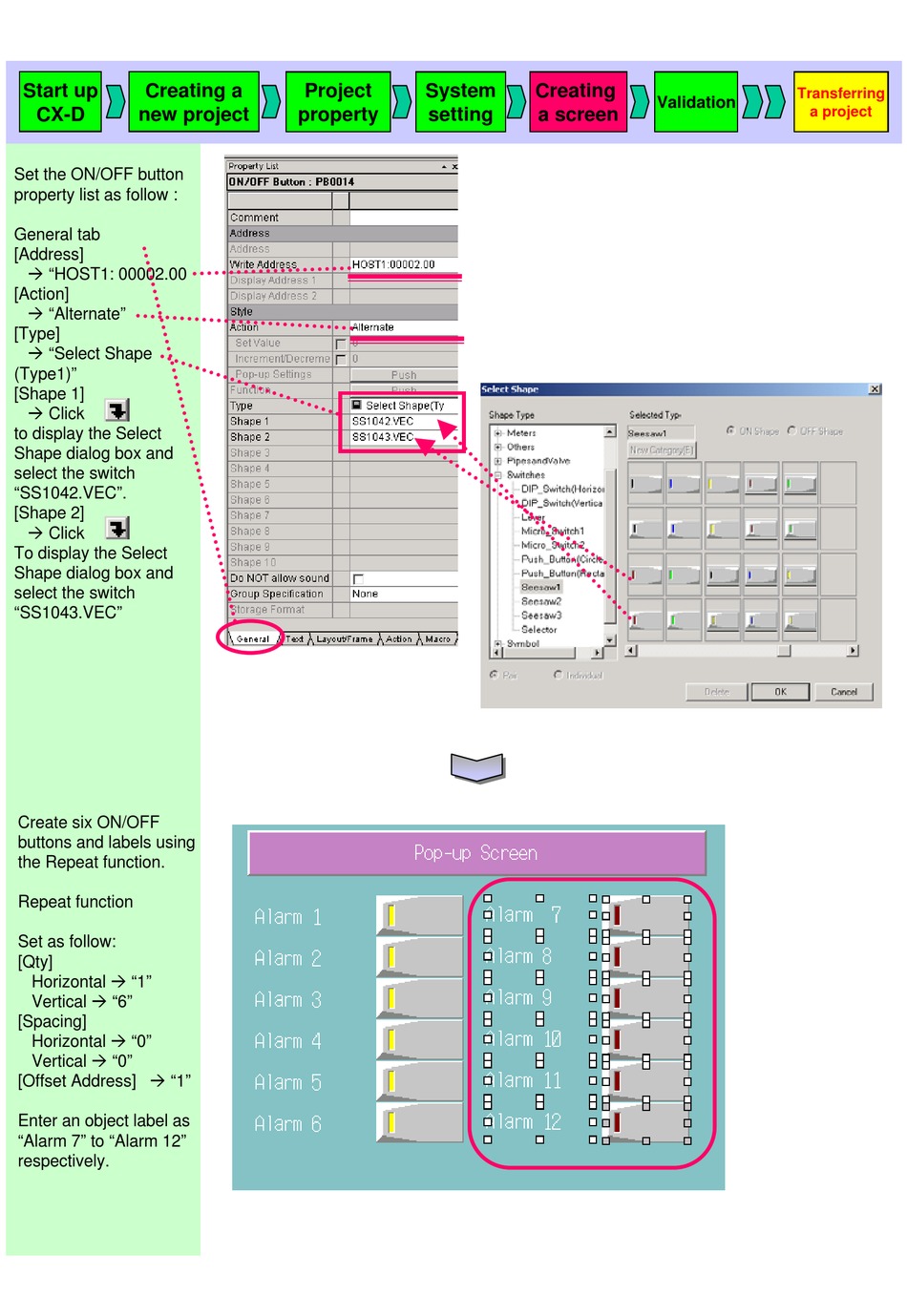

Set the ON/OFF button
property list as follow :
General tab
[Address]
! "HOST1: 00002.00
[Action]
! "Alternate"
[Type]
! "Select Shape
(Type1)"
[Shape 1]
! Click
to display the Select
Shape dialog box and
select the switch
"SS1042.VEC".
[Shape 2]
! Click
To display the Select
Shape dialog box and
select the switch
"SS1043.VEC"
Create six ON/OFF
buttons and labels using
the Repeat function.
Repeat function
Set as follow:
[Qty]
Horizontal ! "1"
Vertical ! "6"
[Spacing]
Horizontal ! "0"
Vertical ! "0"
[Offset Address] ! "1"
Enter an object label as
"Alarm 7" to "Alarm 12"
respectively.
Project System
property setting
Creating
Validation
a screen
Transferring
a project
