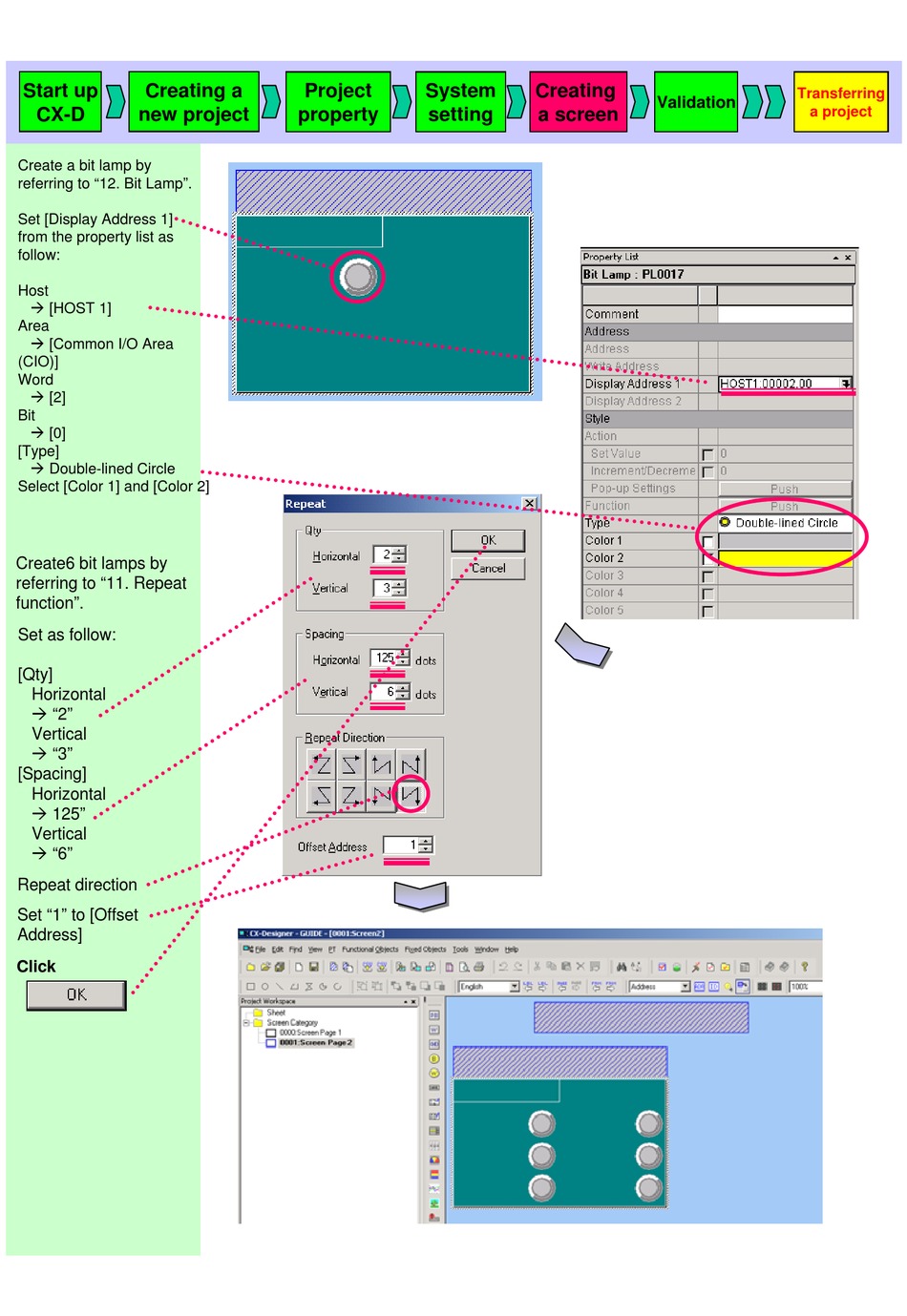

Omron CX-DESIGNER - INTRODUCTION GUIDE Introduction Manual page 48

Start up Creating a
CX-D new project
Create a bit lamp by
referring to "12. Bit Lamp".
Set [Display Address 1]
from the property list as
follow:
Host
! [HOST 1]
Area
! [Common I/O Area
(CIO)]
Word
! [2]
Bit
! [0]
[Type]
! Double-lined Circle
Select [Color 1] and [Color 2]
Create6 bit lamps by
referring to "11. Repeat
function".
Set as follow:
[Qty]
Horizontal
! "2"
Vertical
! "3"
[Spacing]
Horizontal
! 125"
Vertical
! "6"
Repeat direction
Set "1" to [Offset
Address]
Click
Project System
property setting
Creating
Validation
a screen
Transferring
a project
