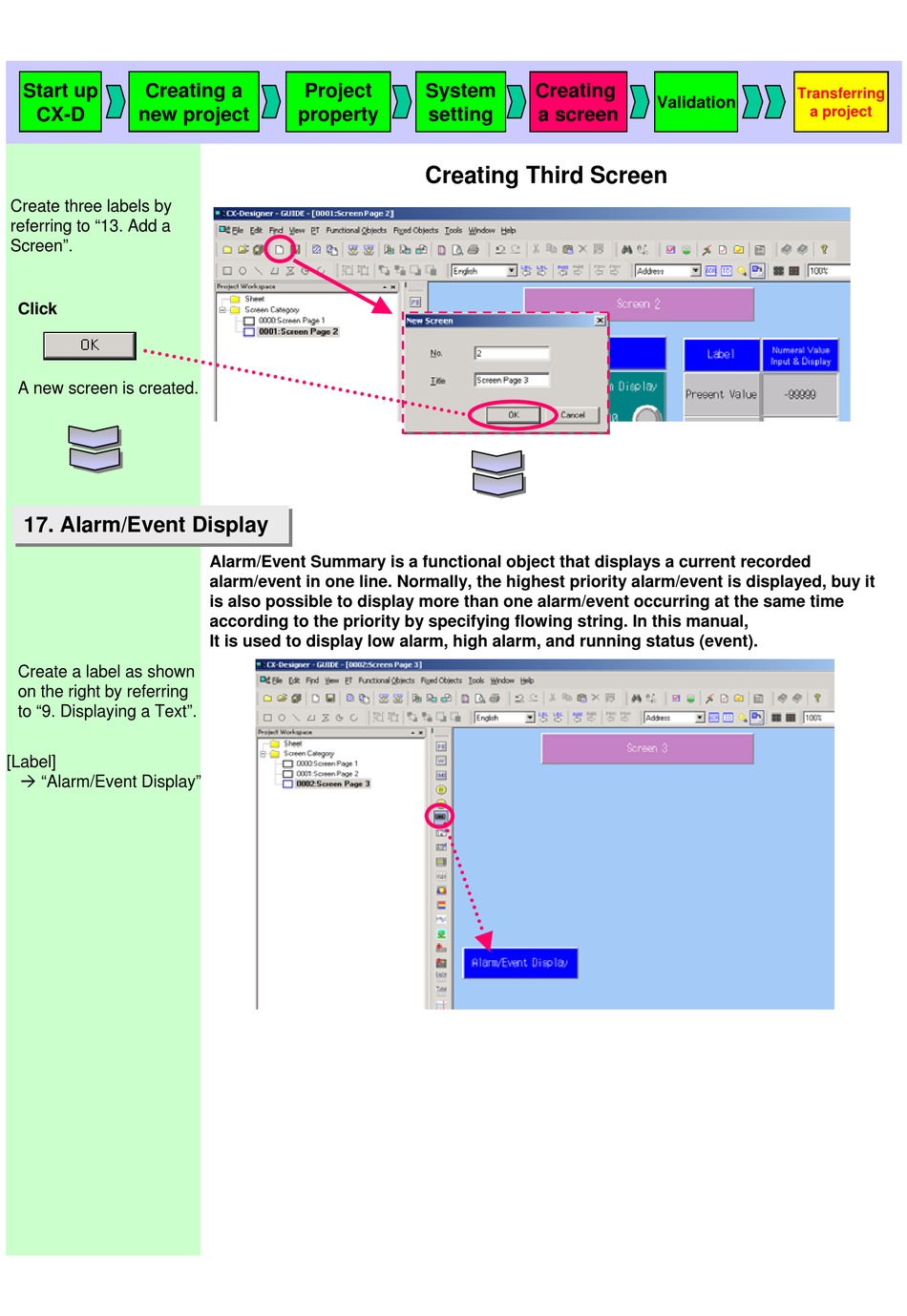

Creating Third Screen; Alarm/Event Display - Omron CX-DESIGNER - INTRODUCTION GUIDE Introduction Manual

Start up Creating a
CX-D new project
Create three labels by
referring to "13. Add a
Screen".
Click
A new screen is created.

17. Alarm/Event Display

17. Alarm/Event Display
Create a label as shown
on the right by referring
to "9. Displaying a Text".
[Label]
! "Alarm/Event Display"
Project
property
Alarm/Event Summary is a functional object that displays a current recorded
alarm/event in one line. Normally, the highest priority alarm/event is displayed, buy it
is also possible to display more than one alarm/event occurring at the same time
according to the priority by specifying flowing string. In this manual,
It is used to display low alarm, high alarm, and running status (event).
