Omron CX-DESIGNER - INTRODUCTION GUIDE Introduction Manual page 45

Start up Creating a
CX-D new project

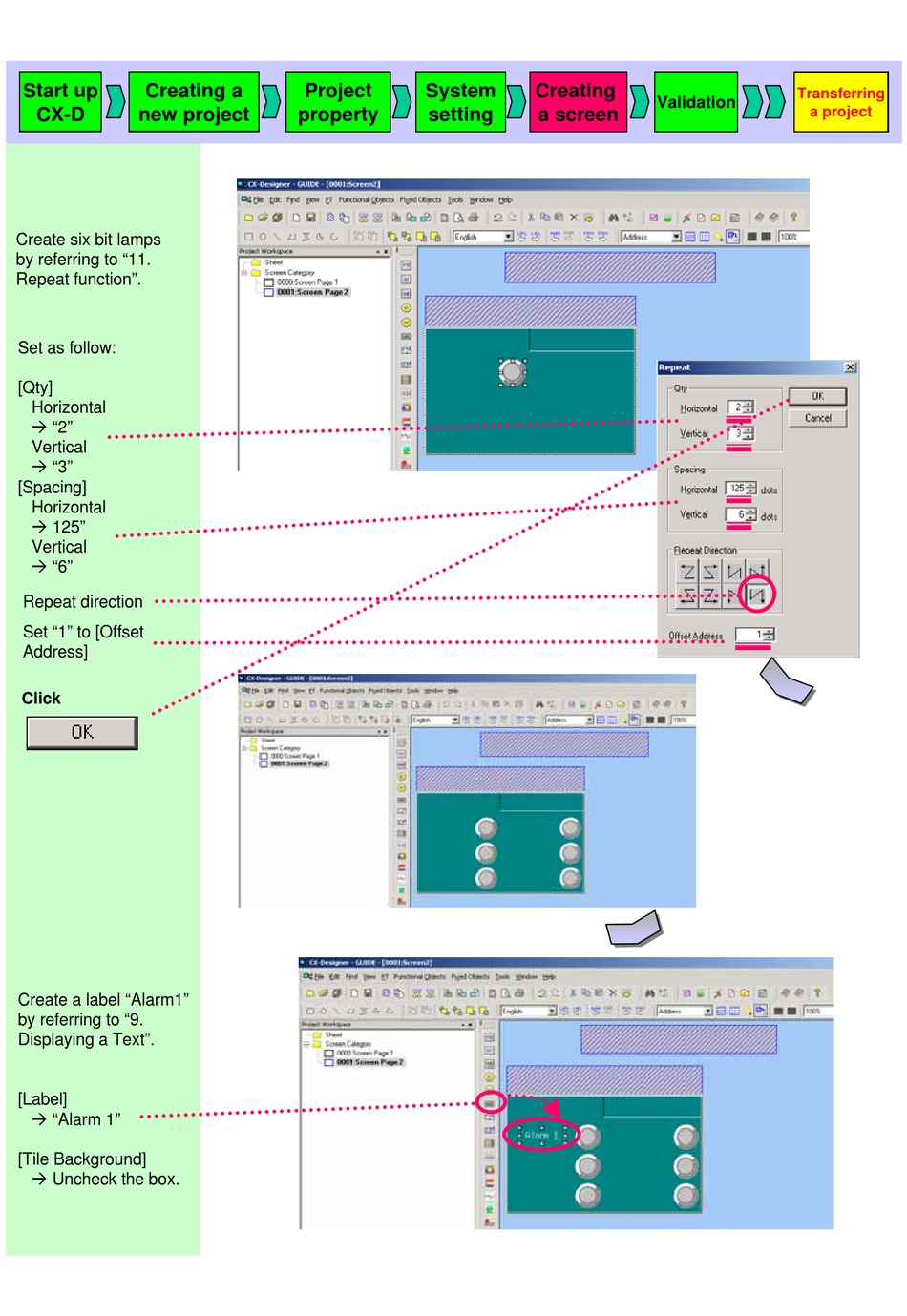

Create six bit lamps
by referring to "11.
Repeat function".
Set as follow:
[Qty]
Horizontal
! "2"
Vertical
! "3"
[Spacing]
Horizontal
! 125"
Vertical
! "6"
Repeat direction
Set "1" to [Offset
Address]
Click
Create a label "Alarm1"
by referring to "9.
Displaying a Text".
[Label]
! "Alarm 1"
[Tile Background]
! Uncheck the box.
Project System
property setting
Creating
Validation
a screen
Transferring
a project
