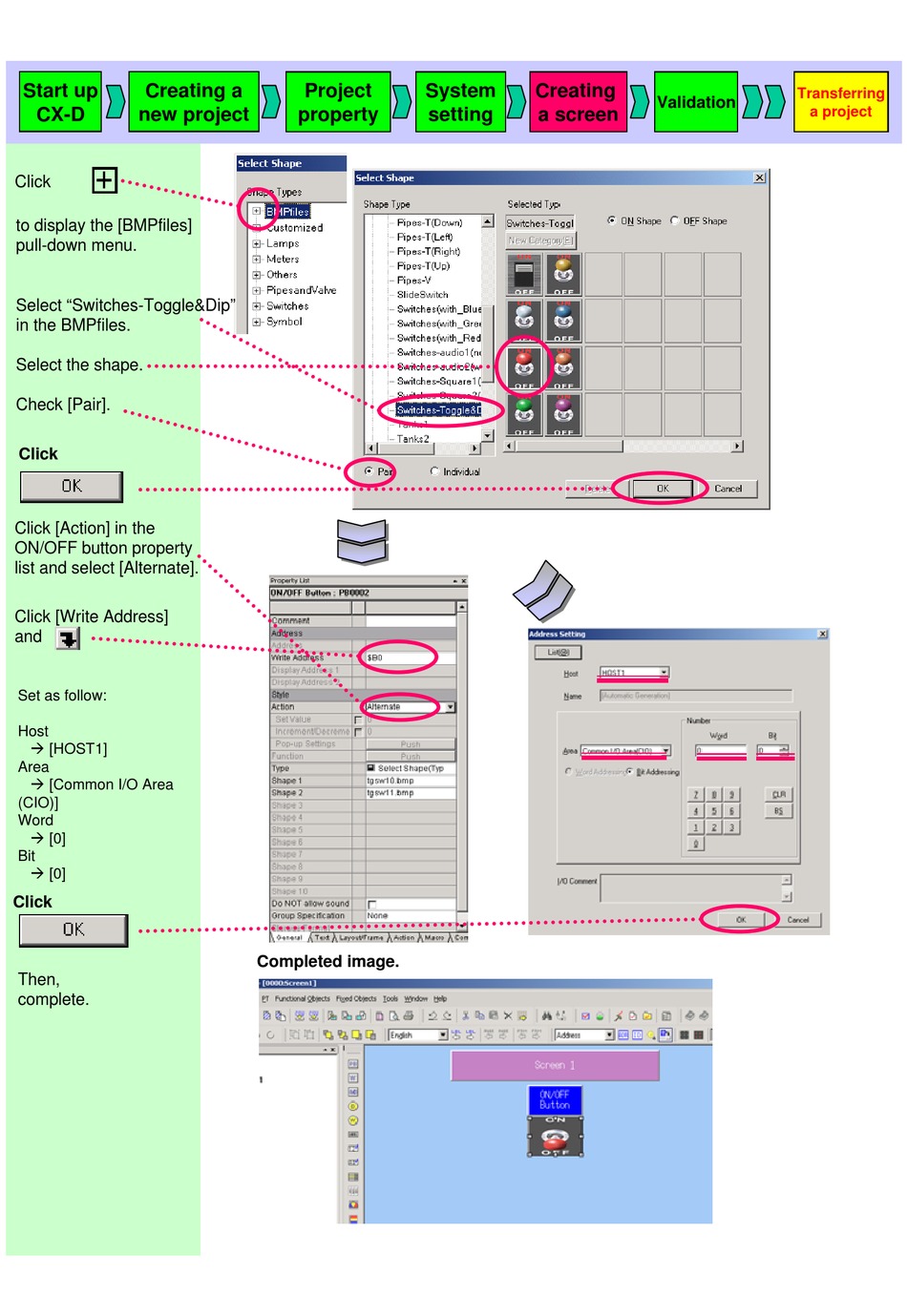

Omron CX-DESIGNER - INTRODUCTION GUIDE Introduction Manual page 27

Start up Creating a
CX-D new project
Click
to display the [BMPfiles]
pull-down menu.
Select "Switches-Toggle&Dip"
in the BMPfiles.
Select the shape.
Check [Pair].
Click
Click [Action] in the
ON/OFF button property
list and select [Alternate].
Click [Write Address]
and
Set as follow:
Host
! [HOST1]
Area
! [Common I/O Area
(CIO)]
Word
! [0]
Bit
! [0]
Click
Then,
complete.
Project System
property setting
Completed image.
Creating
Validation
a screen
Transferring
a project
