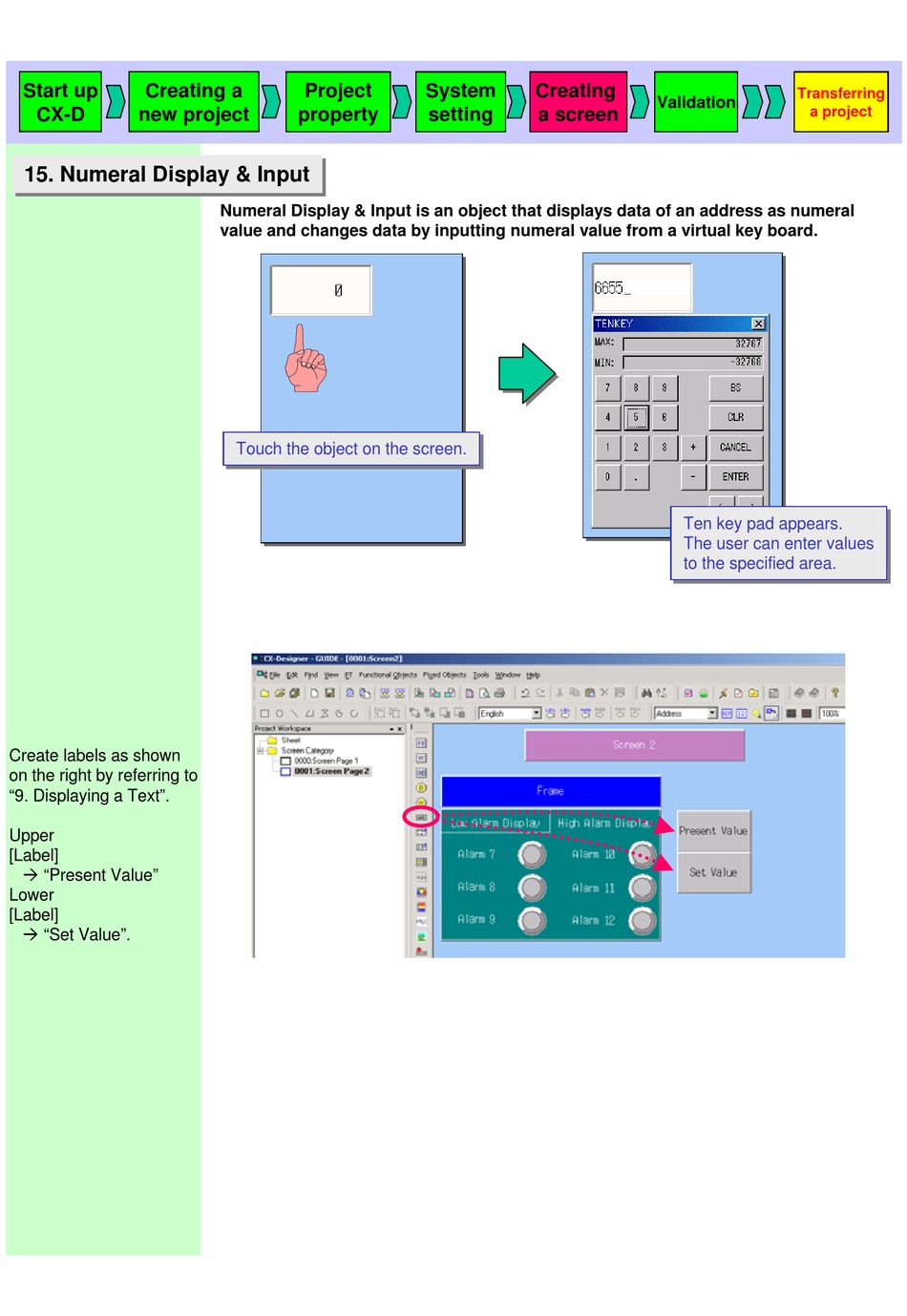

15. Numeral Display & Input
15. Numeral Display & Input
Create labels as shown
on the right by referring to
"9. Displaying a Text".
Upper
[Label]
! "Present Value"
Lower
[Label]
! "Set Value".
Project
property
Numeral Display & Input is an object that displays data of an address as numeral
value and changes data by inputting numeral value from a virtual key board.
Touch the object on the screen.
Touch the object on the screen.
System Creating
setting a screen
Transferring
Validation
a project
Ten key pad appears.
Ten key pad appears.
The user can enter values
The user can enter values
to the specified area.
to the specified area.
