Alarm Display; Present Value / Set Value; Transfer Button - Omron CX-DESIGNER - INTRODUCTION GUIDE Introduction Manual

Start up Creating a
CX-D new project

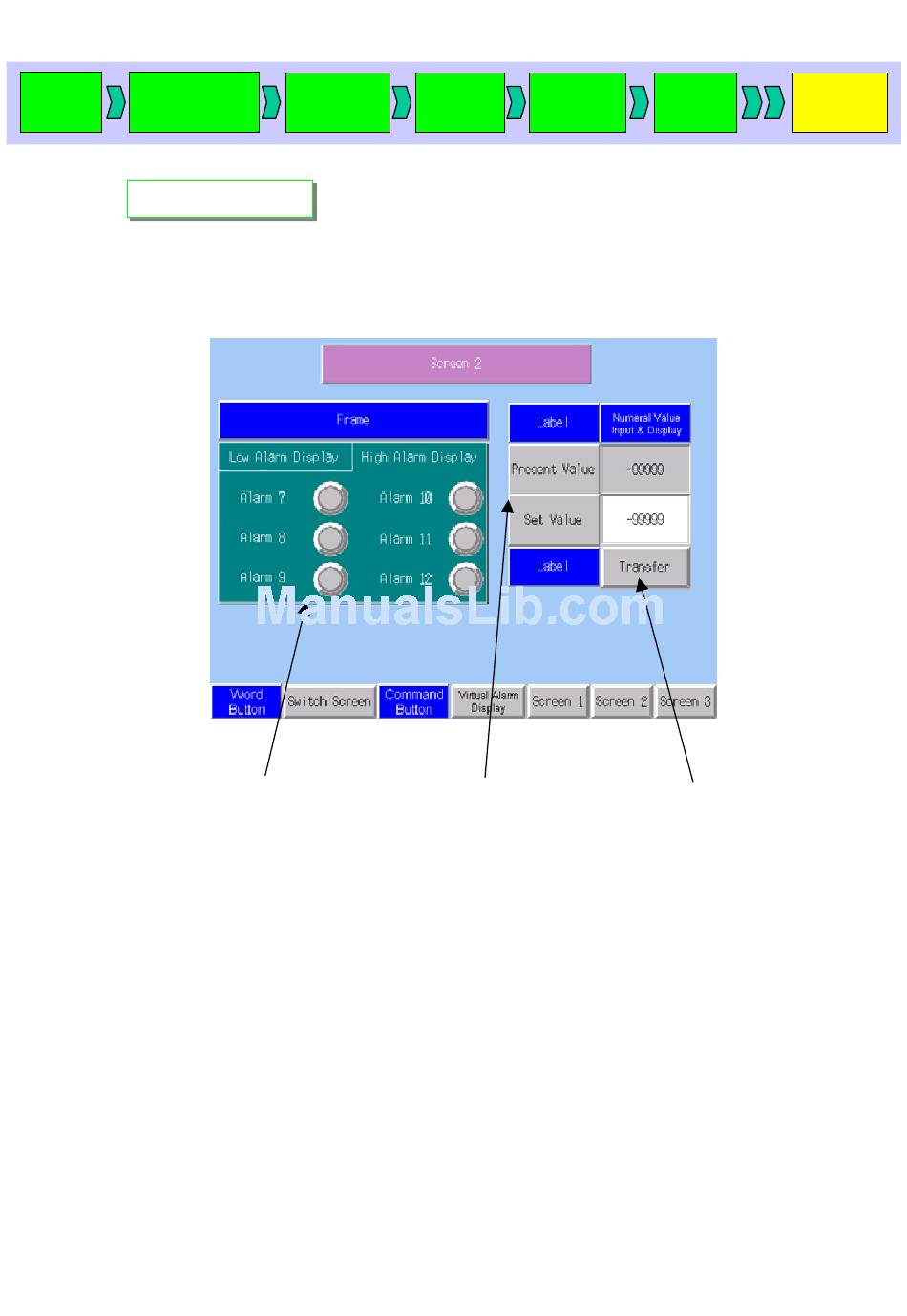

Screen 2
Screen 2
On Screen 2, you will create a screen with 2 functions: one is a frame where more
than one small screens are displayed by switching a tab; the other is to write values
to memories in the PLC.

1. Alarm Display

Is used to switch a Low Alarm Display and a High Alarm Display by pressing the tab of the
Frame function.
Alarm lamps are respectively allocated to bits of the PLC as shown in the table on page 4.

2. Present Value / Set Value

An object that displays the numeral value of an address is used to show the content of the
PLC memory as a present value.
3. Set Value/Transfer Button
Numeral Display & Input object lets the user to enter numeral values. In this manual, you
will create a screen where values entered by the user are saved in the NS's internal
memory area and be transferred to the PLC memory areas by pressing the Transfer button.
Project
property
Alarm Display
System Creating
setting a screen
Present Value / Set Value
Transferring
Validation

Transfer Button

a project
