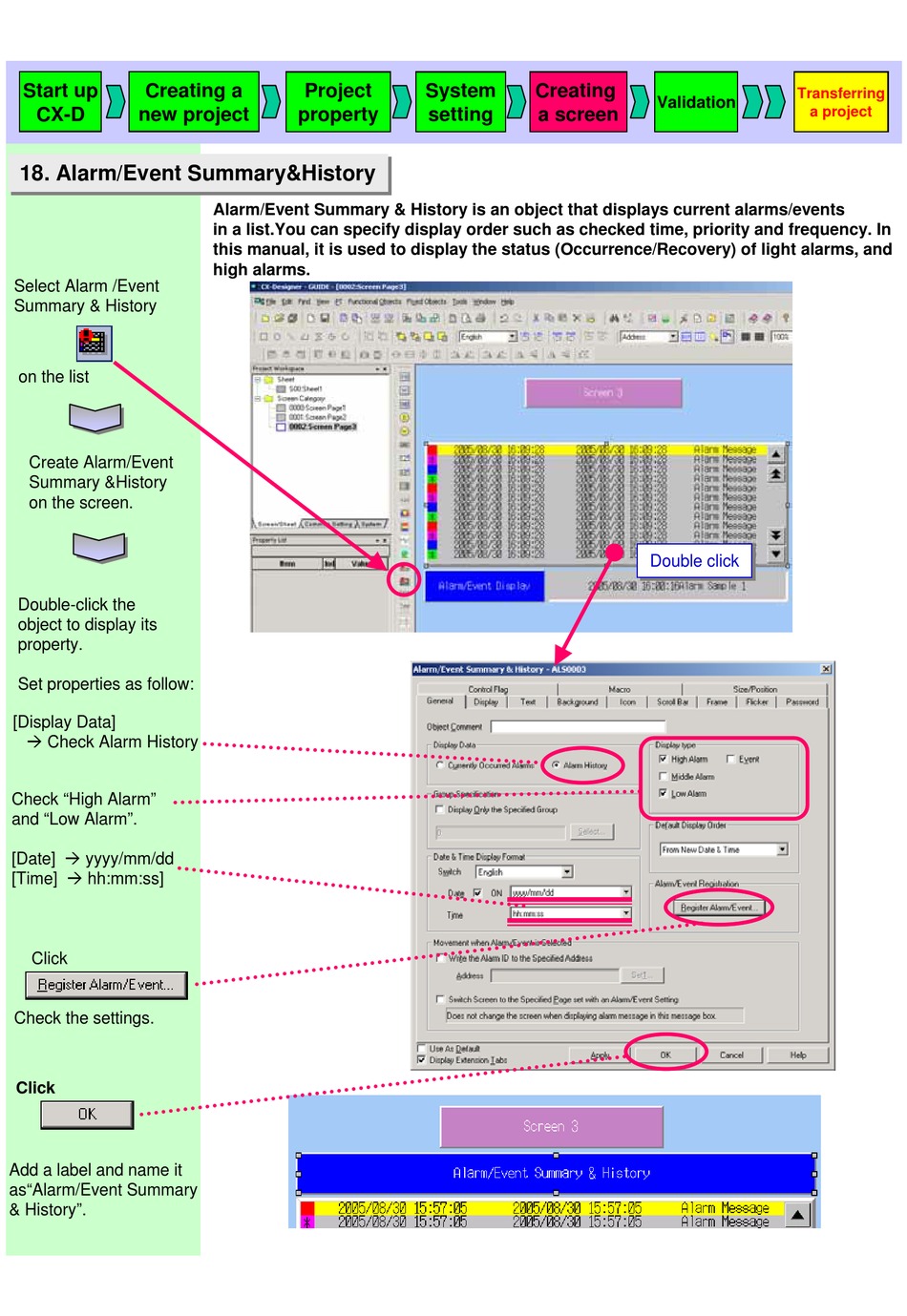

18. Alarm/Event Summary&History
18. Alarm/Event Summary&History
Select Alarm /Event
Summary & History
on the list
Create Alarm/Event
Summary &History
on the screen.
Double-click the
object to display its
property.
Set properties as follow:
[Display Data]
! Check Alarm History
Check "High Alarm"
and "Low Alarm".
[Date] ! yyyy/mm/dd
[Time] ! hh:mm:ss]
Click
Check the settings.
Click
Add a label and name it
as"Alarm/Event Summary
& History".
Project
property
Alarm/Event Summary & History is an object that displays current alarms/events
in a list.You can specify display order such as checked time, priority and frequency. In
this manual, it is used to display the status (Occurrence/Recovery) of light alarms, and
high alarms.
System Creating
setting a screen
Transferring
Validation
a project
Double click
Double click
