3. Instructions

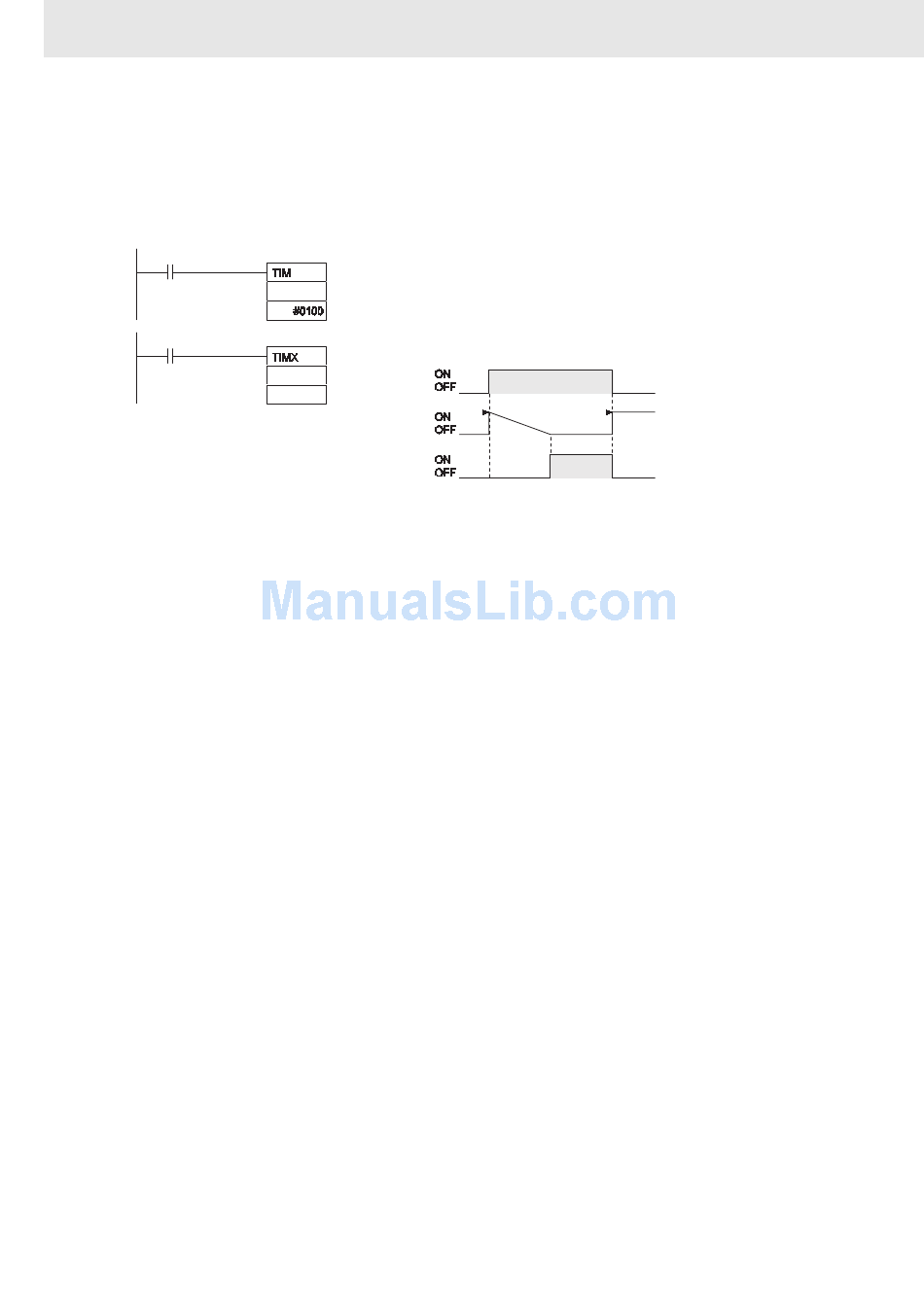

Example Programming
When timer input CIO 0.00 goes from OFF to ON in the following example, the timer PV will begin
counting down from the SV. Timer Completion Flag T0000 will be turned ON when the PV reaches 0.
When CIO 0.00 goes OFF, the timer PV will be reset to the SV and the Completion Flag will be turned
OFF.
0.00
or
0.00
220
i
0000
0000
Timer input
0.00
&0100
100
Timer PV
T0000
Timer
Completion
Flag
T0000
