FINS Commands with Host Link Protocol

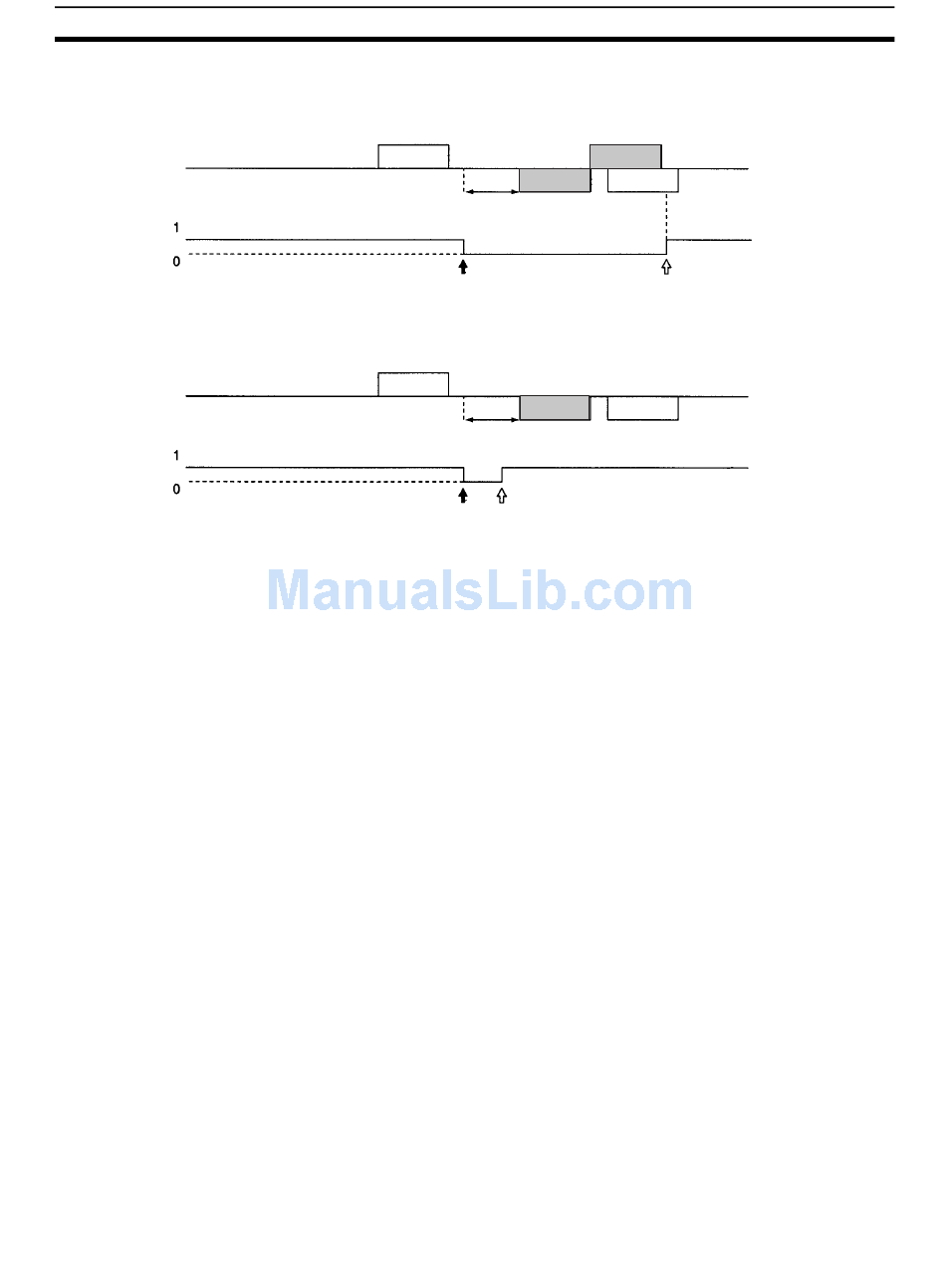

Response Wait Time
Response Required
Host computer
Serial Communications Board/Unit
Communications Port Enabled Flag
No Response Required
Host computer
Serial Communications Board/Unit
Communications Port Enabled Flag
Command
Response wait time
Command acknowledged
Command
Response wait time
Command acknowledged
When response wait time has been set in the command format from the host
computer, commands to the host computer will not be transmitted until the
response time has elapsed (1). Transmission of responses to commands from
the host computer will be postponed until the command transmission to the
host computer has been completed.
When a response is not required from the host computer, the Communica-
tions Port Enabled Flag will turn ON when the command to the host computer
has passed from the CPU Unit to the port.
Response
(1)
Response
Command
(2)
(1)
Command Response
(2)
Command completed
