ICM and ICMTS Motorized Valves with ICAD Actuators

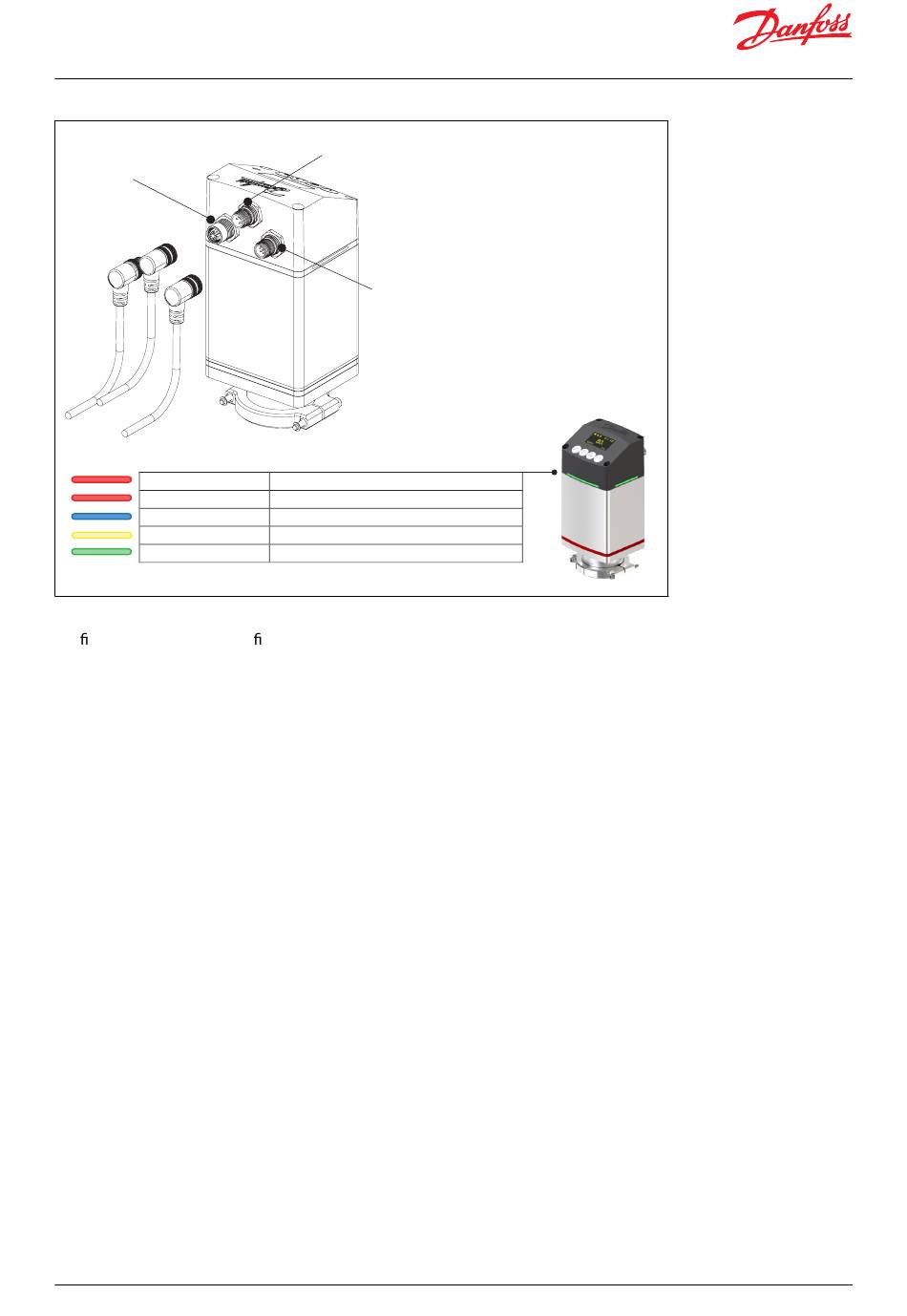

Figure 16: ICAD light guide
Data communication
Light guide
Steady red
Flashing red
Flashing blue
Flashing yellow
Flashing green
The main screen layout and navigation is as described below. ICAD will start up in alarm mode as the ICM
con guration needs to be de ned to start operation. Follow the steps on next page to set this up correctly.
