ICM and ICMTS Motorized Valves with ICAD Actuators

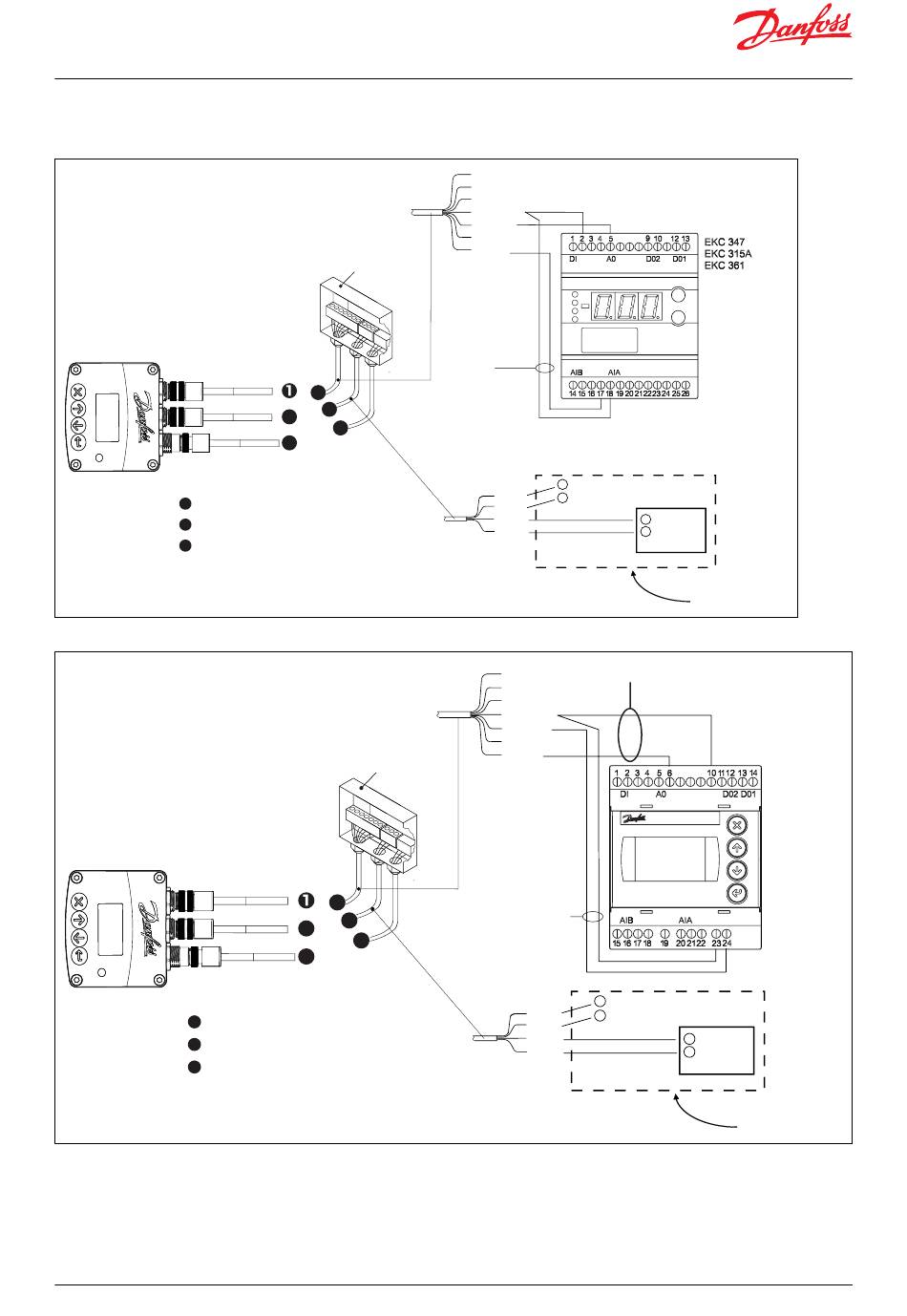

Wiring diagram showing ICAD wired to a Danfoss EKC/EKE controller

Figure 9: ICAD wired to a Danfoss EKC controller - Analog I/O for modulating control
1
Control
2
Power supply cable
3
Data cable
Figure 10: ICAD wired to a Danfoss EKE controller - Digital I/O for ON/OFF valve operation
1
Control
2
Power supply cable
3
Data cable
 NOTE:
For instructions on completely wiring an EKE controller, please see the relevant EKE controller manual.
© Danfoss | Climate Solutions | 2024.01
Terminal box
1
2
2
3
3
cable
Terminal box
1
2
2
3
3
cable
A (Black)
B (Brown)
C (Red)
D (Orange)
E (Yellow)
F (Green)
G (Blue)
Optional position
feedback
Only possible
with EKC 347
+
Optional UPS Signal of Health
Blue
+
Optional UPS/battery back up
Black
White
Brown
A (Black)
Only possible with EKE 347
B (Brown)
C (Red)
D (Orange)
E (Yellow)
F (Green)
G (Blue)
Only possible with EKE 347
+
Blue
+
Black
White
Brown
24 V DC
+
Power
-
Supply
CUSTOMER SUPPLIED
EKE 347
Optional UPS Signal of Health
Optional UPS/battery back up
24 V DC
+
Power
-
Supply
CUSTOMER SUPPLIED
BC465027827472en-000102 | 12
